Why This BMW i4 M50 Owner Upgraded
A BMW i4 M50 does not use its friction brakes in quite the same way as a conventional performance sedan. BMW's official i4 technical material describes an integrated braking system that blends conventional braking with energy recuperation, with regenerative braking reaching as much as 195 kW on the i4 M50. Under anticipatory everyday driving, BMW says recuperation can perform more than 90 percent of deceleration without calling heavily on the friction brakes.
That does not make the brake discs irrelevant. It changes the job they need to do. When the mechanical brakes are asked for meaningful deceleration, the owner still wants a system with the thermal capacity, pedal consistency and hardware integrity expected from a 400 kW-class performance EV, while day-to-day ownership also rewards low dust, corrosion resistance and reduced wheel-end mass.
The brief for this G26 build was therefore a complete front-and-rear conversion rather than an isolated front big brake kit. Both axles receive 380mm STOPFLEX carbon ceramic rotors, fixed multi-piston braking calipers and matched friction hardware, while the rear retains electronic parking-brake functionality. For a broader explanation of where CCB makes sense, the STOPFLEX carbon ceramic brakes guide covers the material and ownership trade-offs before individual vehicle fitment enters the discussion.
What wasn't working
- The owner wanted more mechanical brake reserve than the existing setup offered for higher-demand driving.
- Iron rotor mass remained concentrated at the wheels, where weight directly affects rotating and unsprung mass.
- A performance EV still has to manage substantial friction-brake heat when regenerative braking is no longer doing most of the work.
- The upgrade needed to keep the electronic parking brake functional rather than sacrificing a factory daily-use feature.
- Brake dust and iron-disc corrosion did not fit the low-maintenance ownership target for the car.
What he wanted instead
- A matched 380mm front-and-rear carbon ceramic brake conversion.
- Six-piston front and four-piston rear fixed braking calipers.
- A rear layout that preserves the BMW electronic parking brake.
- Lower wheel-end mass without compromising normal road usability.
- CCB-specific pads, braided lines and fluid treated as part of the complete system.
The hardware concept is similar to another 19-inch, 380mm front-and-rear conversion in our BMW Z4 G29 carbon ceramic brake case, but the i4's electric drivetrain and integrated regenerative braking make the operating context different.

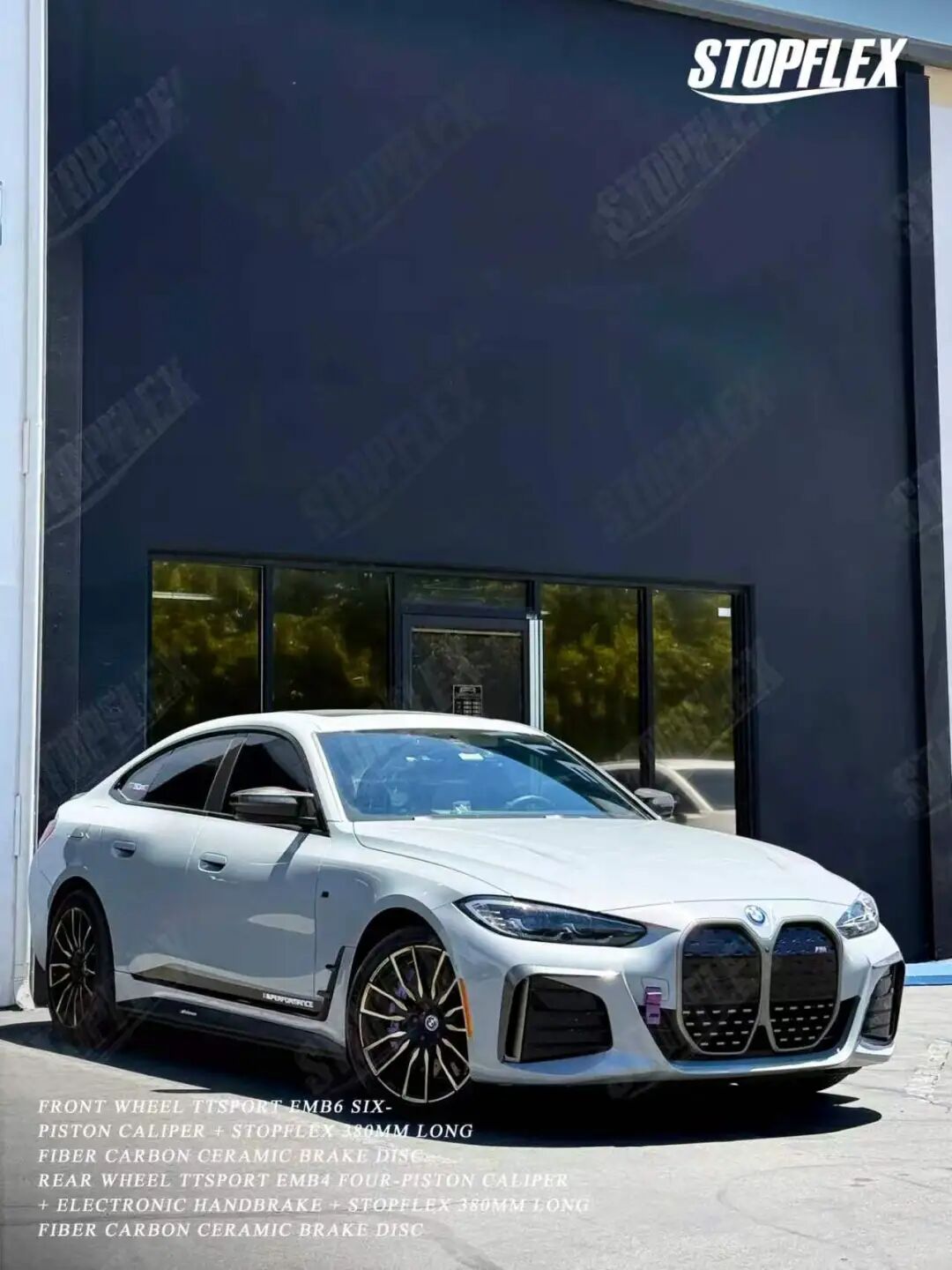

BMW i4 M50 G26 Vehicle Configuration & Parts
| Item | This BMW i4 M50 build |
|---|---|
| Vehicle | BMW i4 M50 (G26) Gran Coupé |
| Wheels | 19-inch |
| Front setup | TTSPORT EMB6 one-piece forged six-piston caliper with 380mm STOPFLEX CCB rotor |
| Rear setup | TTSPORT EMB4 one-piece forged four-piston braking caliper plus separate electronic parking brake caliper, with 380mm STOPFLEX CCB rotor |
| Brake pads | STOPFLEX CCB-specific friction pads |
| Hydraulic hardware | TTSPORT braided brake lines and brake fluid |
| Mounting hardware | Vehicle-specific brackets, fixing bolts and fasteners |
| Conversion scope | Front and rear axles |
Fitment warning: BMW lists 19-inch wheels for the i4 M50, and this case also runs 19-inch wheels, but that does not make every 19-inch design compatible with a 380mm multi-piston brake package. Inner barrel diameter, spoke shape, wheel offset, caliper envelope and rotor position all have to be checked on the actual wheel.
Why Carbon Ceramic Brakes Matter on a BMW i4 M50 EV
There are two separate brake systems working toward the same result in an i4 M50: electric-motor regeneration and the mechanical friction brakes. Regeneration is excellent for efficiency and routine deceleration, but the discs and pads still have to provide dependable friction braking whenever the vehicle asks for it. Upgrading the mechanical system therefore needs to improve its own thermal and mass characteristics without interfering with BMW's electronic brake-control strategy.
And bigger is not automatically better. Using 380mm rotors at both ends does not mean the front and rear axles produce identical brake torque; piston area, effective rotor radius, pad geometry, hydraulic control and vehicle brake-force management all matter. The point of this build is the matched system around the confirmed hardware, not the diameter printed on the rotor.
| STOPFLEX feature | Why it matters on this i4 M50 | What you notice |
|---|---|---|
| Lower unsprung mass | A STOPFLEX carbon ceramic rotor weighs roughly half as much as an equivalent iron disc. On a battery-electric car, removing mass at the four wheel ends is fundamentally different from removing the same amount of sprung cabin weight. | The suspension has less rotor mass to control over rough pavement, while the wheels carry less rotating inertia during acceleration, deceleration and direction changes. |
| High-temperature stability | The carbon-silicon-carbide friction matrix remains stable at temperatures that push iron systems deeper into fade. STOPFLEX rotor-surface friction testing still holds around 0.3μ at 900°C. | When the friction brakes are asked to absorb repeated high-energy stops, the rotor side of the system is less prone to a rapidly changing friction condition as heat builds. |
| Continuous-fiber construction | STOPFLEX uses long continuous carbon fiber through the rotor structure instead of chopped short fiber, allowing load to be carried across the rotor body through repeated thermal cycles. | This is a structural and durability decision, not a styling feature. The production route is covered in our continuous-fiber carbon ceramic brake manufacturing guide. |
| CCB-specific friction pairing | This build includes STOPFLEX pads developed around the ceramic disc. The approved compound is stable to about 750°C and averages roughly 0.44 friction while being designed to limit CCB rotor wear. | Initial response, transfer-layer formation and rotor wear are managed as one system rather than assuming an iron-disc pad will behave correctly on ceramic. |
| Low visible dust | Matched STOPFLEX pads shed a fraction of the visible dust associated with a conventional iron rotor and performance-pad combination. | For a daily-driven i4 M50, the wheels stay cleaner instead of collecting dark pad residue after routine driving. |
| Rust-free friction surface | Carbon ceramic rotors do not develop the orange flash-rust layer that can appear on iron discs after rain, washing or extended parking. | This matters on an EV because regenerative braking can reduce friction-brake use during gentle driving, so there may be fewer routine brake applications available to scrub an iron rotor face clean. |
What gets better
- Less rotating and unsprung rotor mass at all four corners.
- Greater rotor-side thermal stability during repeated friction braking.
- Far less visible brake dust with the matched STOPFLEX pad system.
- No flash-rust film on the carbon ceramic friction surfaces.
- A front-and-rear hardware package designed around one confirmed vehicle.
What to confirm first
- The exact BMW i4 M50 G26 brake specification and model configuration.
- The 19-inch wheel's inner barrel and spoke profile.
- Front and rear bracket geometry for the chosen fixed calipers.
- Rear service-caliper and separate electronic parking-brake arrangement.
- Whether the car is primarily used for commuting, fast-road driving or repeated high-temperature work.
The TTSPORT calipers and braided lines in this build are third-party hardware and are not STOPFLEX products. STOPFLEX supplies the carbon ceramic braking components and engineers the relevant vehicle-specific fitment around the confirmed configuration.
Carbon ceramic brakes demand more money up front than conventional iron replacements, so the useful question is whether the mass, cleanliness, corrosion resistance and long service strategy justify the investment for your use; our carbon ceramic brakes price and cost guide covers that decision without pretending one number fits every car.
If you're checking whether your i4 matches this specification, send the car and wheel details first and we'll confirm G26 fitment before you order through our BMW carbon ceramic brake collection.
Fitment & Installation: Keeping the G26 System Intact
This is where a complete brake conversion succeeds or fails. A six-piston or four-piston caliper cannot simply be moved near a larger rotor and considered fitted. The bracket establishes radial position over the friction ring, lateral centering around the disc and the relationship between pad sweep and usable rotor surface.
STOPFLEX machines the bracket around the confirmed BMW i4 M50 steering-knuckle geometry so the assembly bolts on without cutting or drilling the knuckle or hub. Rotor hat position is engineered with the caliper location at the same time. If the disc sits several millimeters too far inboard or outboard, the pad can run off-center and the caliper can be geometrically wrong even though every bolt physically goes through a hole.
The rear deserves extra attention because service braking and parking-brake duty are separate jobs in this conversion. The four-piston rear fixed caliper handles normal hydraulic braking while a separate electronic parking brake caliper preserves the BMW parking function. That is a rear dual-caliper setup, not a four-piston caliper with a parking motor somehow built into it.
Professional installation then follows the usual discipline: remove the original hardware, inspect and clean the mounting surfaces, install the vehicle-specific brackets and rotor assemblies, mount the calipers, connect the hydraulic components, torque fasteners to the correct vehicle specifications and verify rotor rotation and wheel clearance. The friction system then needs a controlled bedding cycle so the STOPFLEX pads can establish an even transfer layer on the CCB surface. Matching the pad to the rotor is why this build uses the STOPFLEX carbon ceramic brake pad system rather than treating pad choice as an afterthought.
Formal brake evaluation follows the same system-level logic. FMVSS 135 light-vehicle brake requirements evaluate braking through multiple operating conditions, and the SAE J2522 brake effectiveness procedure uses controlled dynamometer cycles rather than judging a system by caliper piston count or rotor diameter alone.
- Send the exact BMW i4 M50 model and G26 chassis information.
- Identify the current factory brake package.
- Provide the 19-inch wheel specification and clear views of the inner spoke profile.
- Identify the current or planned front and rear caliper hardware.
- Confirm that the conversion covers both axles and retains the electronic parking brake.
- Describe the intended use: commuting, highway driving, fast road use or track work.
Bedding and first-drive guidance: build brake temperature progressively instead of going straight into repeated maximum-effort stops. Allow the system to cool after the bedding sequence, and avoid sitting stationary with heavy pedal pressure immediately after a very hot stop. An even transfer layer matters to consistent CCB friction behavior.
What Changes After the STOPFLEX Upgrade
The useful comparison here is not “regenerative braking versus carbon ceramic brakes.” The i4 M50 uses both. BMW's integrated brake controls decide how the vehicle decelerates, while the STOPFLEX conversion changes the physical rotor, pad and caliper package available when friction braking is called upon.
This build was also not instrumented for stopping distance, rotor temperature, lap time or corner-weight reduction. So there is no responsible exact number to attach to the transformation. What can be described is the mechanical direction of the change and what an owner should reasonably look for afterward.
| Situation | Factory friction-brake setup | After the STOPFLEX upgrade |
|---|---|---|
| Normal urban deceleration | Regenerative braking can perform much of the routine slowing, with the friction brakes blended in as the vehicle requires. | The vehicle still manages regenerative braking electronically; the upgrade changes the mechanical brake hardware rather than turning every lift-off event into friction braking. |
| Repeated high-energy braking | Iron rotors absorb the friction system's heat and move through a changing thermal state as repeated brake energy accumulates. | Carbon ceramic rotors provide substantially greater material-level temperature stability, while pads, fluid, tires and cooling still determine the final system limit. |
| Broken pavement | Iron discs add more unsprung mass for the suspension to move with each wheel. | With a carbon ceramic rotor weighing roughly half as much as an equivalent iron disc, each corner gives the suspension less rotor mass to control. |
| Acceleration and direction changes | Heavier discs remain part of the wheel's rotating inertia. | Lower rotor mass reduces rotating inertia at all four corners; expect a subtle chassis response change, not an invented acceleration number. |
| After rain or washing | Iron friction surfaces can develop a visible orange flash-rust layer while the car sits. | The ceramic friction surface does not flash-rust, which is particularly useful when routine regenerative braking means the friction brakes may see fewer light applications. |
| Wheel cleanliness | Conventional performance pads can leave substantial dark residue on the wheel face. | The matched STOPFLEX friction pairing produces much less visible dust in normal road use. |
| Very cold first stop | A factory road system is calibrated around predictable cold operation. | STOPFLEX tunes the street CCB friction system for cold use, but leaving extra margin on the coldest first applications remains sensible. |
| Long-term road use | Iron discs remain routine wear components and are replaced as their condition requires. | Correctly used STOPFLEX CCB rotors can reach about 250,000 to 300,000 km of street service when kept out of sustained track duty; our carbon ceramic brake lifespan guide explains why track and road wear are very different conversations. |
The honest limit: carbon ceramic rotors do not bypass tire grip, ABS logic or BMW's regenerative braking strategy, and a larger multi-piston package does not automatically shorten every stop. The case for this conversion is stronger and more specific than that: lower rotating and unsprung rotor mass, greater rotor-side heat stability, cleaner wheel ownership, rust-free friction surfaces and a complete front-and-rear mechanical brake package that retains the electronic parking brake.
Build Gallery
BMW i4 M50 G26 Carbon Ceramic Brake FAQ
Will 380mm carbon ceramic brakes fit 19-inch wheels on a BMW i4 M50 G26?
This BMW i4 M50 case uses 19-inch wheels with 380mm STOPFLEX carbon ceramic rotors front and rear, but wheel diameter alone does not establish clearance. The wheel barrel, spoke profile, caliper envelope, bracket position and rotor offset all need to be checked before ordering.
Will regenerative braking still work after a BMW i4 M50 brake upgrade?
The STOPFLEX conversion changes the mechanical friction-brake hardware rather than the electric drive motors that generate regenerative braking. The installation must still preserve the BMW integrated braking system and its electronic control functions, so vehicle-specific fitment is essential.
Does the electronic parking brake still work with the rear four-piston upgrade?
Yes. This build uses a rear dual-caliper layout: the four-piston rear braking caliper handles service braking while a separate electronic parking brake caliper retains the parking-brake function.
Are carbon ceramic brakes worth it on a daily-driven BMW i4 M50?
They make the strongest case when you value lower rotating and unsprung mass, high-temperature stability, low visible brake dust, rust-free rotor surfaces and long street-service potential. Those benefits are particularly relevant on an EV where regenerative braking can reduce how often the friction discs are used during light everyday deceleration.
How long do STOPFLEX carbon ceramic rotors last on the street?
With matched pads, correct bedding and normal road use, STOPFLEX CCB rotors are engineered for about 250,000 to 300,000 km of street service when they are not subjected to sustained track duty. Actual life depends on heat exposure, friction pairing, inspection and how the vehicle is driven.
What brake pads should I use with STOPFLEX carbon ceramic rotors?
Use a pad compound engineered for the STOPFLEX carbon ceramic friction surface. This BMW i4 M50 build includes matched STOPFLEX CCB-specific pads because pad chemistry, transfer-layer behavior and rotor wear need to be treated as one friction system.
