Why This Audi A6 C8 Owner Upgraded
An Audi A6 C8 has to do two rather different jobs well. It needs smooth, predictable braking in traffic and on long highway drives, but an owner who drives the car harder also wants enough thermal reserve that the front brakes do not become the part of the car he has to think about first. Audi itself describes this generation of A6 around the combination of comfort and sportiness in its official Audi A6 technical and media material.
The brief here was therefore more useful than simply asking for more pistons. The front axle was converted around a six-piston GT350 caliper, a 380mm STOPFLEX carbon ceramic rotor and matched STOPFLEX pads, while retaining the 19-inch wheel context of the car. If you're still deciding what CCB changes compared with an iron setup, the STOPFLEX carbon ceramic brakes buyer's guide covers the fundamentals before you start choosing hardware.
What wasn't working
- The front brake specification was not the final performance target for the build.
- Conventional iron-rotor mass remained attached to a part of the car where weight directly affects wheel and suspension response.
- The owner wanted more thermal headroom for sustained highway and higher-demand braking.
- Brake dust, iron-disc corrosion and repeated rotor replacement remained part of normal iron-brake ownership.
What he wanted instead
- A front big brake kit that still makes sense on a daily-driven A6 C8.
- A 380mm carbon ceramic rotor paired correctly with the chosen six-piston caliper.
- Less front-axle rotating and unsprung mass without turning the car into a track-only setup.
- Matched pads, brackets and hardware rather than a mix-and-match collection of parts.
- 19-inch wheel fitment checked as part of the package rather than assumed from diameter alone.
This is also why an executive sedan is a useful CCB application rather than an odd one. The same ownership priorities—road comfort, repeated-speed braking and cleaner wheel maintenance—show up in our executive-car carbon ceramic brake case study for the Porsche Panamera, even though the hardware itself is different.

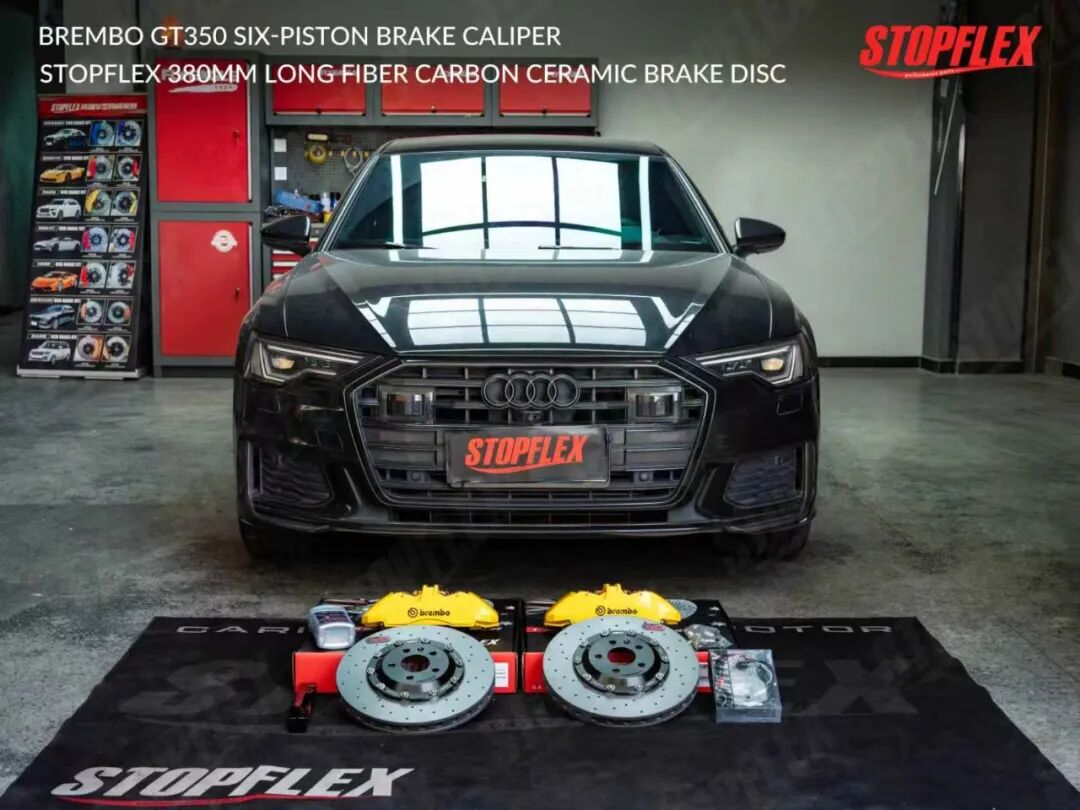

Audi A6 C8 Vehicle Configuration & Parts
| Item | This Audi A6 C8 build |
|---|---|
| Vehicle | Audi A6 C8 sedan |
| Wheel | 19-inch |
| Upgrade scope | Front axle |
| Front caliper | Brembo GT350 six-piston fixed caliper, adapted to the Audi A6 C8 |
| Front rotor | STOPFLEX 380mm carbon ceramic CCB rotor |
| Brake pads | Matched STOPFLEX high-performance ceramic-compatible pads |
| Installation hardware | Vehicle-specific caliper bracket, fixing bolts and mounting hardware |
Do not order from wheel diameter alone. This car uses 19-inch wheels, but a 19-inch wheel is not automatically compatible with every 380mm rotor and six-piston caliper package. Barrel diameter, spoke profile, wheel offset, caliper position and radial clearance all have to work together.
Why Carbon Ceramic Brakes Make Sense on This Audi A6 C8
The important engineering point is that six pistons do not automatically create better braking. Clamp force depends on hydraulic piston area and system pressure; usable brake torque also depends on friction coefficient and the effective radius at which the pad acts on the rotor. The 380mm package works because the caliper, rotor position, pad and bracket are engineered together—not because “six-piston” and “380mm” look impressive on a parts list. Our carbon ceramic versus cast iron brake guide goes deeper into the material-side differences.
| STOPFLEX feature | Why it matters on this A6 C8 | What you notice |
|---|---|---|
| Lower unsprung mass | A STOPFLEX carbon ceramic rotor weighs roughly half as much as an equivalent iron disc. That removes rotating and unsprung mass from the front corners rather than taking weight out of the cabin. | The suspension has less wheel-end mass to control over broken pavement, and steering response can feel cleaner during quick direction changes. |
| High-temperature stability | The carbon-silicon-carbide friction matrix is built for temperatures that push iron systems deeper into their fade window. STOPFLEX rotor-surface friction testing still holds around 0.3μ at 900°C. | Repeated high-energy braking produces a more stable rotor-side friction condition instead of asking you to manage a disc whose behavior is changing rapidly with heat. |
| Continuous-fiber construction | STOPFLEX uses long continuous carbon fiber through the rotor body instead of relying on chopped short fiber. The structure is designed to carry load across the disc through repeated thermal cycles. | For the buyer, this is mainly a durability decision rather than a visual one. The engineering behind the rotor is explained in the STOPFLEX continuous-fiber CCB manufacturing process. |
| CCB-specific pad pairing | This build includes STOPFLEX pads developed for the ceramic friction surface. The compound is stable to about 750°C and averages roughly 0.44 friction while being designed to limit rotor wear. | Pedal response, transfer-layer formation and rotor wear are managed as one friction system instead of assuming a pad intended for iron will behave correctly on CCB. |
| Low visible brake dust | Matched STOPFLEX pads and CCB rotors shed a fraction of the visible dust associated with a conventional iron rotor and pad combination. | For an A6 used every day, the wheels stay presentable longer instead of needing constant cleaning after normal driving. |
| Rust-free rotor surface | The ceramic friction ring cannot flash-rust the way an exposed iron disc can after rain, washing or sitting outside. | You do not get the orange rotor face behind an open wheel or the rough first few applications used to scrub it away. |
What gets better
- Lower front-axle rotating and unsprung mass.
- More stable rotor behavior as repeated braking temperature rises.
- Less visible wheel dust with the matched STOPFLEX friction system.
- No iron-disc flash rust after rain or washing.
- A caliper and rotor package engineered around one front-axle geometry.
What to confirm first
- Exact Audi A6 C8 trim and current brake configuration.
- Whether the GT350 caliper hardware matches the bracket specification being engineered.
- 19-inch wheel barrel and spoke clearance, not just nominal wheel diameter.
- Rotor hat position and caliper centering at the front knuckle.
- Street, highway, mountain-road or track use so the friction setup matches the heat load.
Carbon ceramic brakes carry a higher initial purchase commitment than an iron rotor replacement, so judge the decision over service life and ownership goals rather than the first invoice alone; the carbon ceramic brakes price and ownership-cost guide explains that trade-off in detail.
If you're checking whether your A6 matches the specification shown here, send the vehicle and wheel details first and we'll confirm C8 fitment before you order through our Audi carbon ceramic brake collection.
Fitment & Installation: The Critical Part of This C8 Conversion
This conversion uses the customer's six-piston GT350 caliper hardware, originally developed for a Ford Shelby GT350 application, with a new bracket engineered around the Audi A6 C8 front knuckle. Those Brembo calipers are not a STOPFLEX product. STOPFLEX's job in this build is the carbon ceramic rotor, matched friction components and the vehicle-specific geometry required to make the combination work correctly.
The bracket is not just an adapter that moves the caliper outward until it clears a 380mm rotor. It determines radial position, lateral centering and the relationship between pad sweep and friction ring. STOPFLEX machines the bracket around the confirmed steering knuckle so the system bolts on without cutting or drilling the knuckle or hub. The rotor hat position is engineered at the same time so the disc runs through the center of the caliper instead of relying on washers or improvised shims to correct an offset error.
Installation then follows normal professional brake discipline: remove the existing front hardware, clean and inspect the mounting surfaces, install the correct bracket and rotor assembly, position the caliper, torque every fastener to the applicable vehicle specification, verify free rotation and clearances, and then fit the wheels. The pads must be bedded progressively afterward. For this build, using the matched STOPFLEX carbon ceramic brake pad system matters because disc material and pad compound operate as one friction pair.
That system-level approach is consistent with the way braking is evaluated in formal engineering. FMVSS 135 light-vehicle brake testing includes repeated-stop, fade and recovery conditions rather than judging a brake from piston count alone. Likewise, the SAE J2522 brake effectiveness procedure evaluates friction behavior through controlled dynamometer cycles, while UN ECE vehicle regulations for replacement braking components provide another useful framework for understanding why aftermarket brake parts should be treated as engineered systems.
- Send the exact Audi A6 model and C8 chassis identification.
- Identify the trim and current front brake package.
- Provide the 19-inch wheel specification and clear views of the inner spoke profile.
- Identify the exact current or planned front caliper.
- Confirm that the requested conversion is for the front axle.
- Describe the car's real use: commuting, highway, mountain roads, track days or a mixture.
Bedding matters. Start with progressive brake applications that build temperature evenly rather than immediately making repeated maximum-effort stops. Allow the system to cool afterward, and avoid holding heavy pedal pressure while the car sits stationary immediately after a very hot stop; the goal is an even transfer layer across the ceramic friction surface.
What Changes After the STOPFLEX Front Upgrade
The useful result is not a made-up claim that an A6 suddenly stops a fixed number of meters shorter. On a healthy modern car, tires, road surface and ABS quickly become part of the stopping-distance equation. The more defensible reasons for this front carbon ceramic brake conversion are reduced wheel-end mass, better rotor-side thermal stability, lower visible dust and a friction surface that does not rust.
It is also important to keep the scope straight: this is a front-axle conversion. Front brake hardware handles a large share of the car's braking workload because load transfers forward during deceleration, but the rear brakes, tires, ABS, hydraulic system and chassis electronics still remain part of the total vehicle response.
| Situation | Conventional iron front setup | After the STOPFLEX front upgrade |
|---|---|---|
| Normal city braking | Predictable street operation, with the feel determined by the original rotor, pad and hydraulic combination. | The objective remains smooth street modulation; the CCB-specific pad and rotor pairing avoids turning daily braking into an aggressive track-pad experience. |
| Repeated highway-speed braking | Iron rotors absorb repeated heat and can move further into a changing thermal condition as energy accumulates. | The carbon ceramic friction matrix provides substantially greater material-level temperature stability, while fluid, pad and cooling condition still set the limit of the complete system. |
| Broken pavement and quick direction changes | Heavier iron rotors add unsprung and rotating mass to the front corners. | A CCB rotor weighing roughly half as much as an equivalent iron disc gives the suspension less wheel-end mass to control. |
| Wheel cleanliness | Iron rotor and pad combinations commonly leave visible dark dust on the wheel face. | Matched STOPFLEX CCB pads generate much less visible dust, which is a practical benefit on a daily-driven executive sedan. |
| After washing or rain | An exposed iron friction ring can develop an orange flash-rust layer while parked. | The ceramic friction surface does not flash-rust, so it stays visually clean behind the wheel. |
| Very cold first stop | A conventional street iron system generally gives familiar cold behavior. | STOPFLEX tunes the Street Spec CCB friction pair for cold use, but the coldest first applications still deserve extra braking margin. |
| Long-term street service | Iron discs remain periodic wear items as thickness and condition dictate replacement. | With correct pads, bedding and road use, STOPFLEX CCB rotors can reach about 250,000 to 300,000 km outside sustained track duty; the carbon ceramic rotor lifespan guide explains why street and track wear should be judged differently. |
Keep the claims proportional to the evidence. This build was not instrumented for before-and-after stopping distance, rotor temperature, lap time or measured corner-weight reduction. Exact performance numbers without a test sheet would be advertising, not engineering. What the hardware supports is a clear mechanical direction: less front rotor mass, greater carbon-ceramic thermal stability, lower visible dust and a properly engineered 380mm six-piston front brake package.
Build Gallery
Audi A6 C8 Carbon Ceramic Brake FAQ
Will a 380mm front carbon ceramic brake kit fit under 19-inch wheels on an Audi A6 C8?
This Audi A6 C8 build runs 19-inch wheels with a 380mm front CCB package, but wheel diameter alone does not guarantee clearance. Spoke shape, barrel profile, caliper position, bracket geometry and rotor offset all need to be checked before ordering.
Can GT350 six-piston calipers be adapted to an Audi A6 C8?
Yes. This front conversion adapts six-piston GT350 OEM caliper hardware to the Audi A6 C8 with a vehicle-specific caliper bracket and pairs it with 380mm STOPFLEX carbon ceramic rotors. Exact fitment still has to be confirmed for the individual car and wheel setup.
Are carbon ceramic brakes worth it on a daily-driven Audi A6 C8?
They make the strongest case when you value lower front-axle unsprung and rotating mass, high-temperature consistency, low visible brake dust, a corrosion-free rotor surface and long road service life. For a street-focused A6, those ownership benefits can matter as much as outright braking performance.
Do STOPFLEX carbon ceramic brakes work when cold or wet?
STOPFLEX tunes the CCB friction system for street use, including cold starts, and the ceramic rotor surface does not flash-rust after rain or washing. On the coldest first stops, leave additional margin until the system has developed some temperature.
How long do STOPFLEX carbon ceramic rotors last on the street?
With matched pads, correct bedding and normal road use, STOPFLEX CCB rotors are engineered for long service life and can reach about 250,000 to 300,000 km when they are not subjected to sustained track duty. Actual wear still depends on temperature history, pad pairing, handling and inspection.
What brake pads should I use with STOPFLEX carbon ceramic rotors?
Use a pad compound engineered for the STOPFLEX CCB friction surface. This Audi A6 C8 build includes matched STOPFLEX pads, because pad chemistry, friction behavior and transfer-layer formation directly affect pedal feel, heat stability and rotor wear.
