2024-2026+ Zeekr X Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?

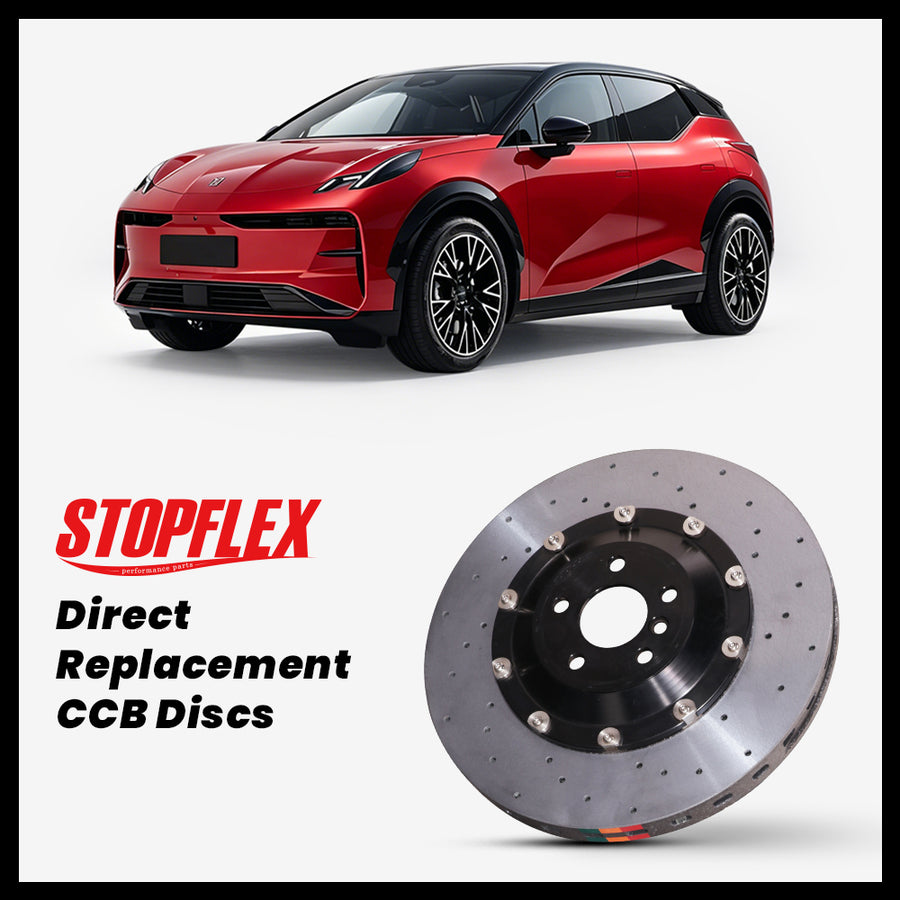

Direct Replacement CCB Discs (Retain Factory Calipers) for the 2024-2026+ Zeekr X. Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| Zeekr X | 345mm | 18" | |
| Zeekr X (4-Piston) | 345mm | 18" |
Keep Your Factory Calipers?
Yes — if your front factory calipers are fixed 4-piston or more. The rear axle has no restriction. Cars with 1- or 2-piston floating front calipers should use the Full Upgrade kit (calipers + discs) instead. Discs are built to the factory rotor specs shown above; if you run aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood), we simply confirm the caliper model, pad shape, and rotor dimensions before production.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
Winter & Cold-Weather Braking
A cold, untuned carbon-ceramic disc needs more pedal than iron on the first winter stops — normal material physics. StopFlex engineered the pad formula and disc coating specifically for cold starts, closing that gap: cold-car winter feel is now very close to summer feel. Keep a little extra distance on the coldest mornings; for harsh winters, choose Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Will this fit my Zeekr X without changing the calipers?
Yes, on the exact trims listed for this page. This is a direct replacement built around the factory 345mm front and 345mm rear rotors, and it reuses your existing 4-piston front calipers. The kit ships with carbon-ceramic rotors sized to those OEM references, matched pads, hats, and floating hardware. Direct replacement is only valid because the front caliper here is 4-piston; if your car has been modified away from the factory front brake setup, confirm fitment with us before ordering.
How do these behave in winter or on a cold first stop?
An untuned carbon-ceramic disc bites less than cold iron when it's below freezing — that's normal physics, not a defect. We addressed it two ways: the pad is a carbon-ceramic-specific low-metallic resin compound (steel, copper, aramid fiber) tuned for early cold engagement, and the disc's ceramic coating is optimized for cold starts. The result is cold-car feel that comes very close to summer feel. On the coldest first one or two stops, leave a little extra following distance until the front rotors take heat.
Does this work with the Zeekr X electronic parking brake?
Yes. The rear setup reuses your factory rear calipers over the 345mm carbon-ceramic rear rotor, so the integrated electronic parking brake keeps functioning exactly as it does from the factory. Because you retain the OEM calipers, there's no need to relearn or recalibrate the EPB actuator after the swap.
What wheel size do I need to clear these rotors?
The rotors match the factory 345mm front and 345mm rear diameters, so any wheel that clears the stock Zeekr X brakes will clear this kit — there's no diameter increase over OEM. If you run aftermarket wheels, verify inner-barrel clearance around the floating hats and hardware, and send us your wheel spec if you're unsure.
