2026-2026+ Zeekr 9X Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

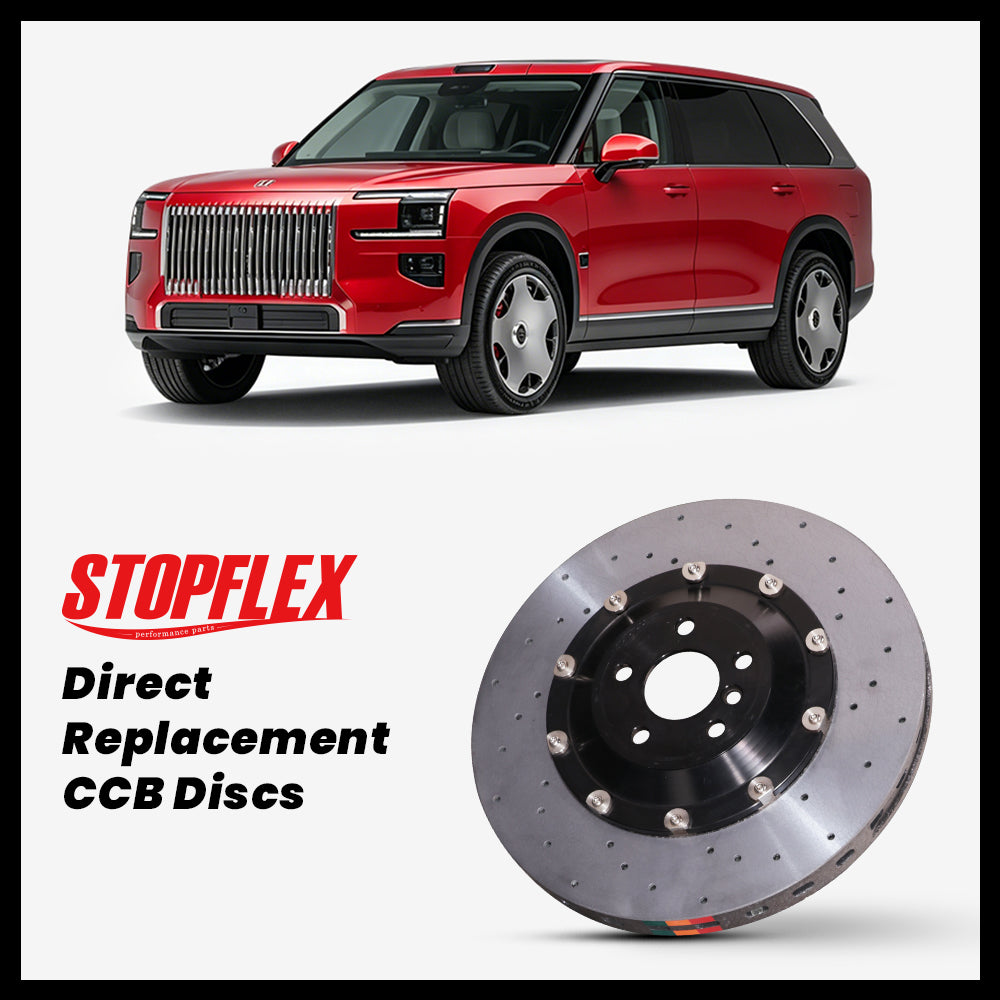

2026-2026+ Zeekr 9X Carbon Ceramic Brake Kit — OEM-Size Replacement
The Zeekr 9X is a full-size plug-in hybrid SUV with high curb weight and very quick acceleration, so repeated stops put more heat into the factory-size brake package than a typical luxury SUV. This StopFlex OEM-replacement kit keeps the Zeekr 9X brake geometry at 412mm front and 365mm rear while replacing the iron friction rings with carbon-ceramic rotors, matched pads, hats, and floating hardware. The result is lower rotating mass, lower visible brake dust, and better heat stability without changing to an oversized caliper conversion.
- Built for the Zeekr 9X rotor package listed on this page: 412mm front and 365mm rear OEM-size replacement discs.
- Designed for owners who want carbon-ceramic heat stability and lower dust while retaining the factory caliper architecture instead of moving to a 420mm/410mm big-brake conversion.
- The kit includes carbon-ceramic rotors, matched pads, hats, and floating hardware for both axles, so the working dimensions stay tied to the Zeekr 9X OEM rotor sizes.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Zeekr 9X |
| Model years | 2026-2026+ |
| Front rotor reference | Zeekr 9X: 412mm |
| Rear rotor reference | Zeekr 9X: 365mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 21" (for the 412 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 412 mm rotor, so the minimum wheel size is 21". Wheels under 21" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2026+ Zeekr 9X?
No. This page is only for Zeekr 9X vehicles equipped with the 412mm front and 365mm rear brake package. Before ordering, confirm the measured rotor diameters, caliper type, wheel barrel clearance, and VIN/build specification.
Does this kit keep the factory electronic parking brake and auto-hold functions?
This is an OEM-size rotor, pad, hat, and floating-hardware replacement, not a rear caliper conversion. When installed on the matching Zeekr 9X factory rear brake package, the vehicle’s EPB and brake-control functions remain tied to the original caliper and vehicle systems.
Why choose carbon-ceramic rotors instead of replacing the Zeekr 9X iron rotors?
Carbon-ceramic rotors reduce rotating and unsprung mass at each corner, produce much less dark brake dust, and hold friction behavior more consistently during repeated high-energy stops. On a heavy, high-output Zeekr 9X, those gains matter most during mountain driving, repeated highway deceleration, and performance use.
Will my factory wheels clear this kit?
If your wheels clear the original Zeekr 9X 412mm front and 365mm rear brake hardware, the OEM-size StopFlex kit is designed around that same rotor envelope. Still confirm spoke and barrel clearance because wheel design, balance weights, and trim-specific calipers can change available space.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
