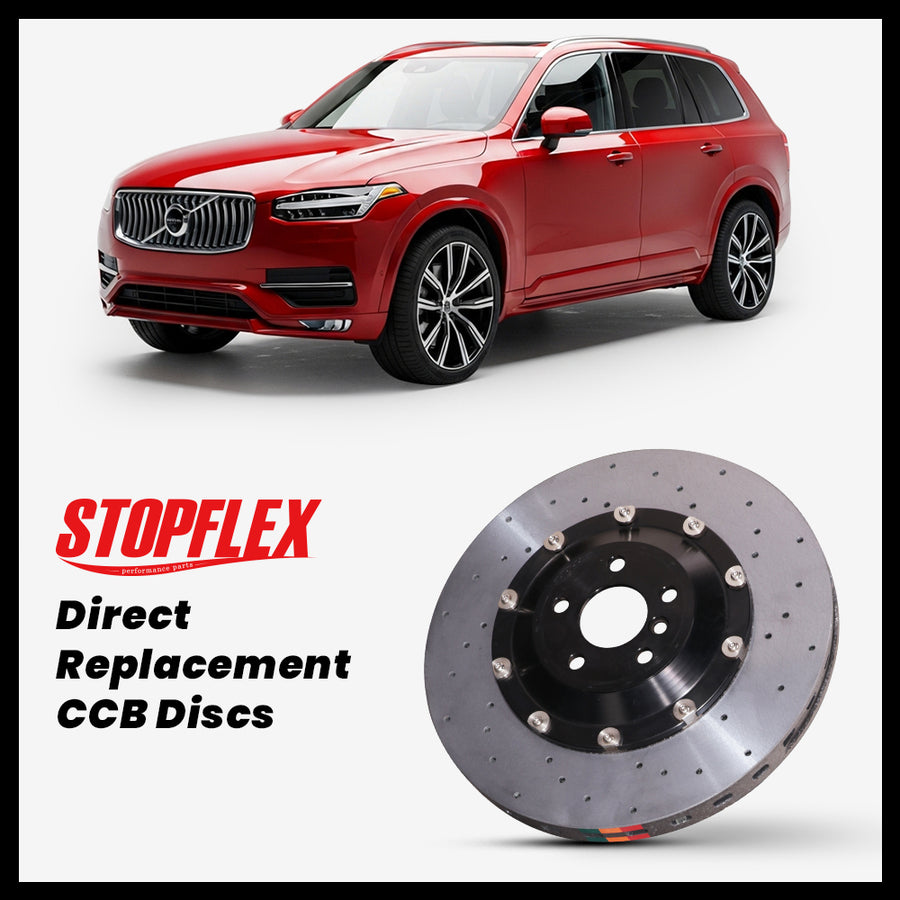

2016-2026+ Volvo XC90 Recharge T8 Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2016-2026+ Volvo XC90 Recharge T8 Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2016-2026+ Volvo XC90 Recharge T8 is a heavy three-row plug-in hybrid, and repeated high-energy stops can expose the limits of its OEM iron rotors through heat checking, pulsation, dust, and pad transfer. This StopFlex OEM-size replacement kit is built around the T8 rotor references used on this page: 345mm, 366mm, or 400mm front and 320mm or 340mm rear. Carbon-ceramic rotors reduce rotating unsprung mass, shed less visible dust, and add thermal stability while retaining the factory-style brake layout when the ordered kit matches the vehicle’s exact rotor sizes.
- Covers only the XC90 Recharge T8 brake configurations listed here: 345mm, 366mm, or 400mm front rotors with 320mm or 340mm rear rotors.
- OEM-size replacement design keeps the Volvo caliper position and wheel/brake package based on the rotor diameter selected, rather than converting the SUV to a universal big-brake layout.
- Kit includes carbon-ceramic rotors, matched pads, hats, and floating hardware for the front and rear T8 brake setup specified at order confirmation.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volvo XC90 Recharge T8 |
| Model years | 2016-2026+ |
| Front rotor reference | T8: 345mm, 366mm, 400mm |
| Rear rotor reference | T8: 320mm, 340mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 18" (for the 345 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 345 mm rotor, so the minimum wheel size is 18". Wheels under 18" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2016-2026+ Volvo XC90 Recharge T8?
No. Fitment is limited to the exact trim and rotor-size combinations listed for this page. Before ordering, confirm the front rotor diameter is 345mm, 366mm, or 400mm and the rear rotor diameter is 320mm or 340mm.
Will my electronic parking brake and Auto Hold still work?
Yes, when the rear kit is matched to the correct XC90 Recharge T8 rear brake configuration. The kit replaces the friction components and rotor assembly; it does not delete the factory EPB function.
Why switch from the OEM iron rotors on an XC90 T8?
The XC90 Recharge T8 combines SUV mass with plug-in hybrid torque, so the front brakes can see high heat in mountain driving, towing-style loads, or repeated fast stops. Carbon-ceramic rotors reduce brake dust, resist heat-related fade, and lower rotating unsprung weight compared with same-size iron rotors.
What should I verify before I order?
Confirm model year, Recharge T8 trim, front and rear rotor diameters, wheel size, and whether the vehicle has the 345/320mm, 366/340mm, or 400mm front configuration. Photos of the calipers and rotor measurements help prevent ordering the wrong hat, pad shape, or hardware package.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
