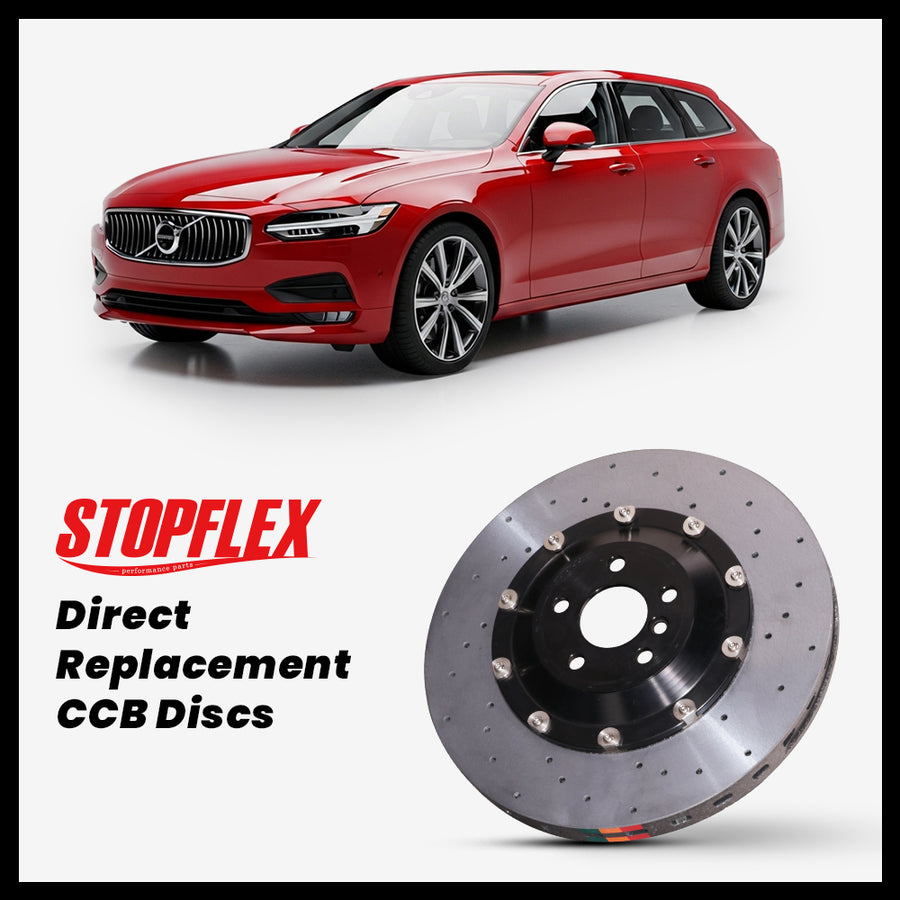

2018-2025 Volvo V90 Recharge T8 Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2018-2025 Volvo V90 Recharge T8 Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2018-2025 Volvo V90 Recharge T8 is a heavy plug-in hybrid wagon, so repeated highway-speed stops, mountain descents, and towing or cargo load can put real heat into the factory-size brake package. This OEM replacement StopFlex kit is built around the listed T8 rotor references—345 mm or 366 mm front and 320 mm or 340 mm rear—so the order must match the brake code on the car, not just the model name. Carbon-ceramic rotors reduce unsprung mass and dark brake dust while the supplied pads, hats, and floating hardware keep the conversion matched as a system.
- Built only for 2018-2025 V90 Recharge T8 configurations using the listed OEM-size rotor references: 345 mm or 366 mm front, 320 mm or 340 mm rear.
- SPA-platform Volvo brake fitment varies by rotor diameter, so this page is for exact T8 rotor-size replacement rather than a universal V90 kit.
- The kit includes carbon-ceramic rotors, matched pads, hats, and floating hardware for both axles, replacing the factory iron disc package at the original working diameter.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volvo V90 Recharge T8 |
| Model years | 2018-2025 |
| Front rotor reference | T8: 345mm, 366mm |
| Rear rotor reference | T8: 320mm, 340mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 18" (for the 345 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 345 mm rotor, so the minimum wheel size is 18". Wheels under 18" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2018-2025 Volvo V90 Recharge T8?
No. Volvo used multiple brake sizes on SPA cars. This page is limited to V90 Recharge T8 cars with the exact listed rotor references: 345 mm or 366 mm front and 320 mm or 340 mm rear. Confirm the current rotor diameter or OE brake code before ordering.
Does the rear electronic parking brake still work?
Yes, when ordered for the correct rear rotor size and caliper configuration, the kit preserves the factory rear brake layout used by the V90 Recharge T8, including the electronic parking brake and auto-hold functions.
Why replace the OEM iron rotors with carbon ceramic on this wagon?
The V90 Recharge T8 combines wagon weight with plug-in hybrid torque, which can accelerate heat buildup and brake dust in repeated braking. Carbon-ceramic rotors reduce dust, resist heat-related fade, and remove unsprung weight compared with equivalent-size iron discs.
What should I verify before placing the order?
Confirm model year, V90 Recharge T8 trim, front rotor diameter, rear rotor diameter, wheel size and clearance, and whether the car currently has the 345/320 mm or 366/340 mm brake package. Photos of the front and rear brakes help prevent a rotor-size mismatch.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
