2017-2025 Volvo S90 Recharge T8 Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

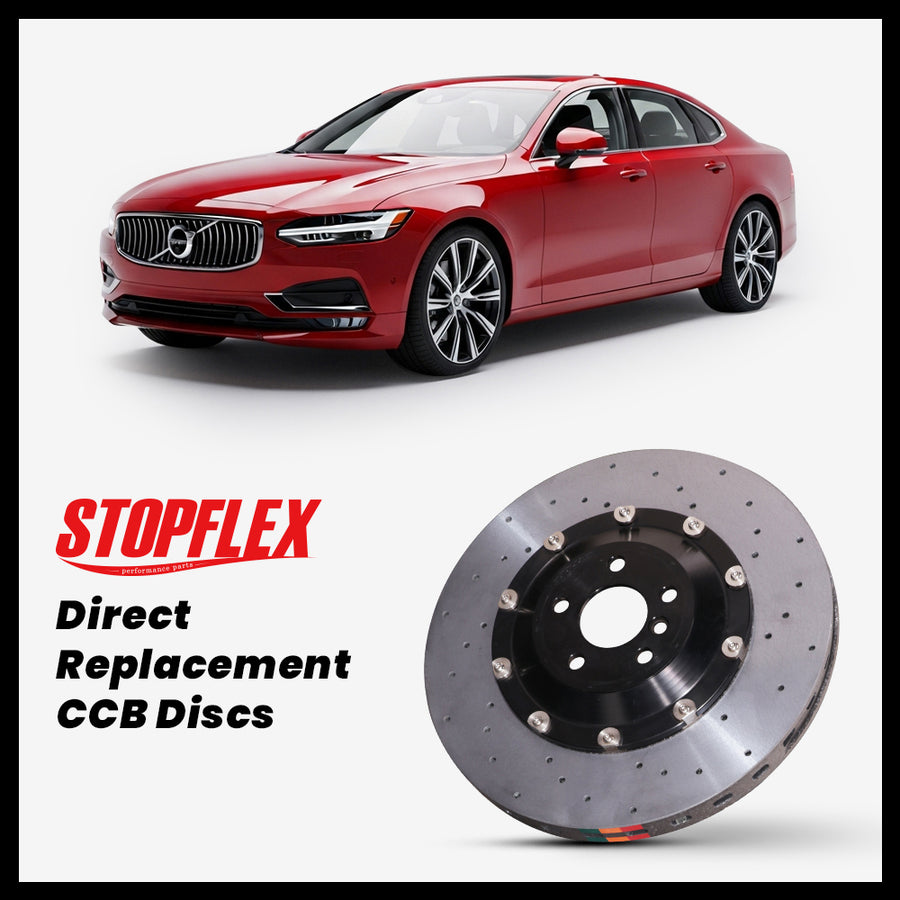

2017-2025 Volvo S90 Recharge T8 Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2017-2025 Volvo S90 Recharge T8 is a heavy plug-in hybrid sedan, so repeated highway stops and mountain descents can put more heat into the 345mm or 366mm front brakes than a lighter S90. This StopFlex OEM-size replacement kit keeps the factory brake layout while replacing the iron friction rings with carbon-ceramic rotors, matched pads, hats, and floating hardware for lower brake dust, reduced rotating mass, and better resistance to heat-related pedal change. Order by the exact front and rear rotor pairing on the car: 345/320mm, 345/340mm, 366/320mm, or 366/340mm where applicable.
- Built only for S90 Recharge T8 brake packages using 345mm or 366mm front rotors and 320mm or 340mm rear rotors; this page is not a universal SPA Volvo fitment.
- The kit retains the OEM-size rotor envelope, so caliper position, brake balance, and wheel clearance are based on the factory S90 T8 brake package rather than a big-brake conversion.
- Carbon-ceramic friction rings cut iron-rotor dust on the S90 T8’s large sedan wheels and reduce rotating unsprung mass at all four corners.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volvo S90 Recharge T8 |
| Model years | 2017-2025 |
| Front rotor reference | T8: 345mm, 366mm |
| Rear rotor reference | T8: 320mm, 340mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 18" (for the 345 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 345 mm rotor, so the minimum wheel size is 18". Wheels under 18" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2017-2025 Volvo S90 Recharge T8?
No. Fitment is limited to the S90 Recharge T8 trims and rotor sizes listed for this page. Confirm the front rotor diameter is 345mm or 366mm and the rear rotor diameter is 320mm or 340mm before ordering.
Will my electronic parking brake and Auto Hold still work?
Yes, when ordered for the correct rear rotor size. This is an OEM-size replacement kit that works with the factory rear caliper and EPB mechanism; it does not convert the S90 T8 to a different parking-brake design.
Why replace the factory iron rotors with carbon-ceramic rotors on an S90 T8?
The main reasons are lower brake dust, less rotating mass, and better heat stability during repeated stops. The S90 Recharge T8’s plug-in hybrid weight makes heat control more important than on lighter S90 variants.
What should I verify before placing the order?
Measure the existing rotors or confirm the brake package in Volvo service data. Also confirm wheel clearance for the factory 345mm or 366mm front brake package, because this kit follows the OEM rotor diameter rather than reducing brake size.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
