2017-2025 Volvo S90 Carbon Ceramic Big Brake Kit — AP Racing CP9560 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2017-2025 Volvo S90. This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2017-2025 | AP Racing CP9560 Radi-CAL II 6-Piston Caliper / 380mm | Front-only kit option | 19" |
Every StopFlex kit is bespoke-engineered for your exact model and trim — brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, never assumed from the platform. Trims that share a chassis name can differ mechanically: a pure performance variant often carries different knuckles, hub geometry, and wheel ET clearance than the standard models, so parts that bolt onto one are not the parts that fit the other. Calipers, pads, rotor hats, floating hardware, and brake lines ship as one matched system built to your confirmed trim. Modified knuckles, uprights, or non-factory suspension mounting points must be reviewed before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | AP Racing CP9560 Radi-CAL II 6-Piston Caliper OE / Part No.: L CP9560-2SOBG4 · R CP9560-3SOBG4 |
| Front CCB rotors | 380mm |
| Rear calipers | Not included in this kit option |
| Rear CCB rotors | Not included in this kit option |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Any kit order can be personalized: custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the hardware behind your wheels matches the rest of the build.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Winter & Cold-Weather Braking
Winter question, straight answer: untuned ceramic discs bite less when cold. StopFlex optimized the pad compound and the rotor's ceramic coating for cold operation, so cold-start braking in winter feels very close to warm-weather braking. Extra following distance on freezing first stops is still smart; severe-winter daily cars should run Street Spec.
Caliper Overview

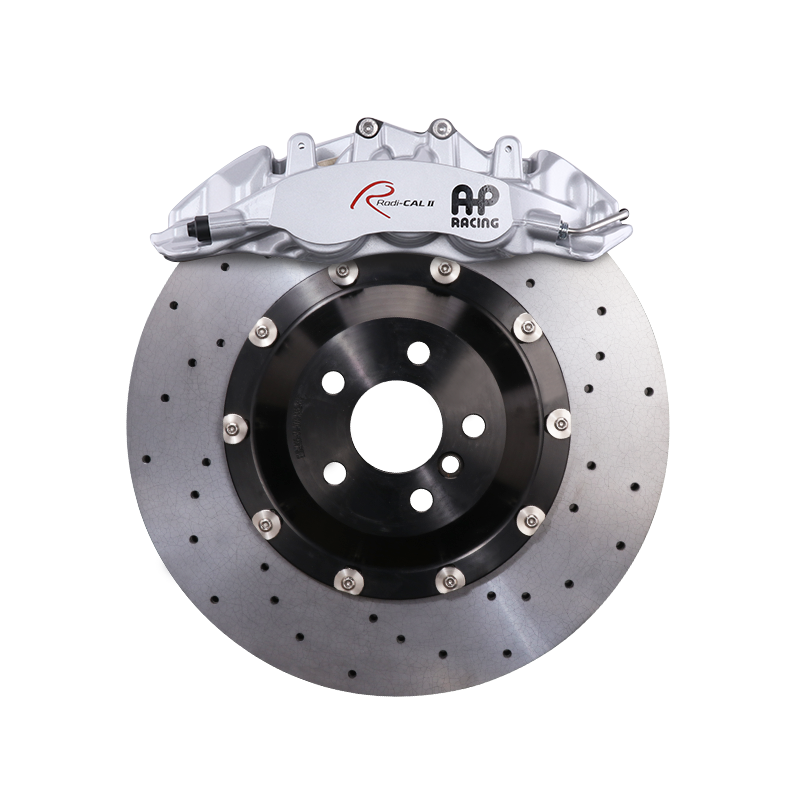

Front Caliper
The front caliper is the AP Racing CP9560 Radi-CAL II 6-piston monobloc. Its stiff, asymmetric body keeps piston deflection low under sustained load, so the pedal stays firm and consistent when the factory S90 setup would start to fade.
Rear Caliper
This kit is a front-only upgrade. If you want a matched rear caliper with electronic parking brake retention for your S90, we can spec one for your confirmed trim on request.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Will this kit fit my exact S90 trim?
We build each kit to your confirmed S90 trim, not to the S90 platform in general. The brackets, rotor-hat offsets, and caliper mounting are cut for your car's front knuckle geometry and hub dimensions. Trims within the S90 family can differ mechanically, so we verify your VIN and wheel details before we machine anything rather than assuming a one-size fit.
What wheels do I need to clear the 380mm rotors?
The 380mm front rotor and AP Racing CP9560 caliper require a minimum 19-inch wheel. Anything under 19 inches will not clear the rotor, and spoke shape matters too, so send us your wheel size and offset and we'll confirm clearance before the build.
How do these brakes behave in cold weather and winter?
A cold carbon-ceramic disc naturally bites less than cold iron on the first stops of the day; that's physics, not a fault. We tune both the pad compound and the disc's ceramic coating for cold starts, so cold-car feel on the S90 now comes very close to warm summer feel. Leave a little extra following distance on the very first cold stops and it settles quickly.
Will this stop the warping and fade the factory S90 brakes suffer?
Yes. The main reason owners come to us is soft factory rotors that warp early and fade under repeated hard braking. Carbon-ceramic discs run far higher thermal limits and resist the vibration and pedal fade that show up on the stock setup, and they don't need replacing on the short intervals owners report with OE parts.
