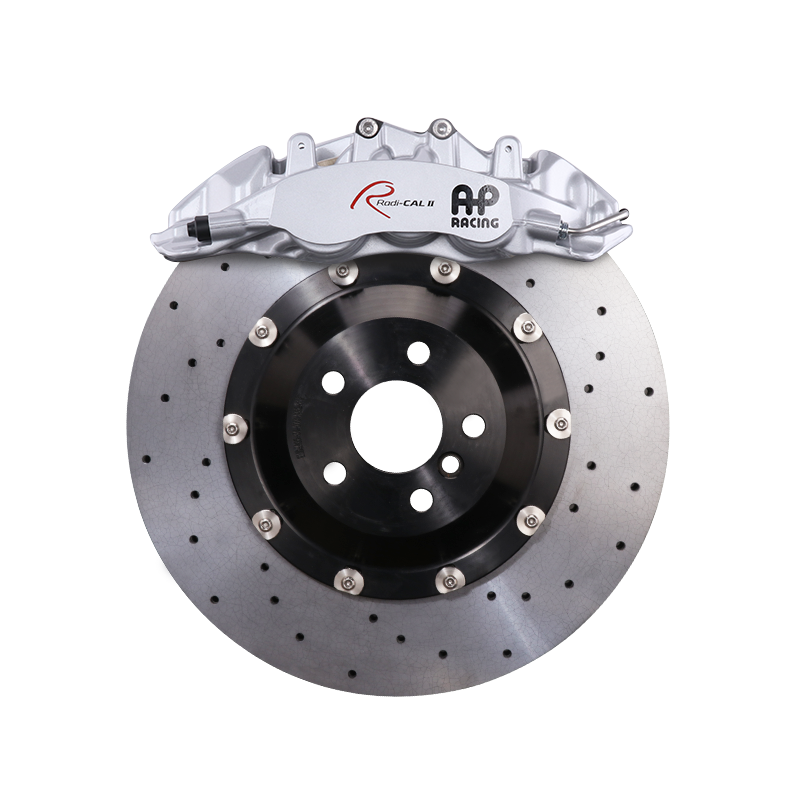

2011-2018 Volvo S60 (134/P3) Carbon Ceramic Big Brake Kit — AP Racing CP9560 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2011-2018 Volvo S60 (134/P3). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2011-2018 | AP Racing CP9560 Radi-CAL II 6-Piston Caliper / 380mm | Front-only kit option | 19" |
Fitment here is bespoke: brackets, hat offsets, and caliper mounting are engineered for your exact model and trim rather than copied across the platform. Two trims with the same chassis code can still differ in knuckles, hub geometry, and wheel ET clearance — which is why we confirm your trim first, then build the matched system of calipers, pads, rotor hats, floating hardware, and lines for it. Modified knuckles, uprights, or non-factory suspension points require review before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | AP Racing CP9560 Radi-CAL II 6-Piston Caliper OE / Part No.: L CP9560-2SOBG4 · R CP9560-3SOBG4 |
| Front CCB rotors | 380mm |
| Rear calipers | Not included in this kit option |
| Rear CCB rotors | Not included in this kit option |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Specify custom caliper colors, a custom caliper logo, and custom rotor hat colors on any kit order — the finished package matches your build instead of a standard catalog look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Winter & Cold-Weather Braking
Winter question, straight answer: untuned ceramic discs bite less when cold. StopFlex optimized the pad compound and the rotor's ceramic coating for cold operation, so cold-start braking in winter feels very close to warm-weather braking. Extra following distance on freezing first stops is still smart; severe-winter daily cars should run Street Spec.
Caliper Overview
Front Caliper
The front runs the AP Racing CP9560 Radi-CAL II, a 6-piston monobloc caliper. Its stiff body and staggered piston sizing keep pad pressure even across the 380mm rotor, so pedal feel stays firm from a cold first stop through repeated hard braking.
Rear Caliper
This kit is a front-only upgrade for the S60. If you want a matched rear caliper to pair with your R-Design or Polestar rear setup, we can spec one on request.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Will this kit clear my wheels?
The front rotor is 380mm, so you need at least 19-inch wheels, and spoke shape matters as much as diameter. Send us your exact wheel model and offset and we'll confirm clearance around the CP9560 caliper before you order.
Is this a bolt-on kit for any S60, or is it matched to my exact trim?
It's bespoke per confirmed trim. The R-Design and Polestar variants can differ from a base S60 in knuckle geometry and hub offset, so we build the brackets and rotor-hat offsets to your specific car. We don't ship one platform-wide bracket and assume it fits.
How does this brake behave in cold Volvo winters?
A cold, untuned carbon-ceramic disc bites less than cold iron, which is normal physics. We tune both the pad compound and the disc's ceramic coating for cold starts, so first-stop feel in winter comes very close to summer feel. On the coldest first stops, leaving a little extra following distance is still smart.
Does this affect my electronic parking brake?
The S60's EPB lives in the rear calipers, and this kit only changes the front, so your factory electronic parking brake is untouched. If you later add a matched rear, we spec it to retain EPB function.
