2016-2024 Volkswagen Tiguan (AD1) CCB Big Brake Kit | AP Racing 9560 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

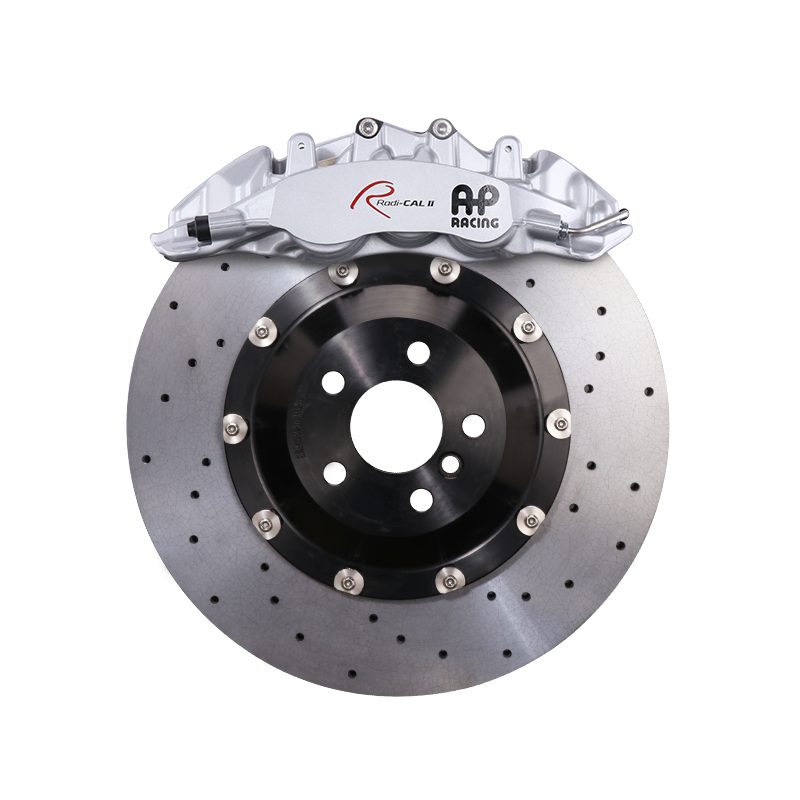

2016-2024 Volkswagen Tiguan / R (AD1) CCB Big Brake Kit — Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper Front + Genuine AP Racing CP9541 Radi-CAL II 4-Piston Caliper Rear Setup
The 2016-2024 Volkswagen Tiguan / R (AD1) is heavy enough to expose factory iron-brake heat, dust, and rotor wear during repeated mountain, autobahn, towing, or track-day braking. This StopFlex kit replaces the factory friction package with 380mm carbon-ceramic rotors, a Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper front setup, and a Genuine AP Racing CP9541 Radi-CAL II 4-Piston Caliper rear setup for higher thermal capacity, lower rotating mass, and reduced wheel dust. Each kit is built to the confirmed Tiguan or Tiguan R trim, with bracket geometry, rotor-hat offset, and caliper position matched to that specific vehicle rather than assumed from the AD1 platform name.
- 380mm front and rear carbon-ceramic rotors require 19 inch or larger wheels on the Tiguan / R AD1; barrel and spoke clearance are checked before the kit is built.
- The front axle uses the Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper, giving this Tiguan / R AD1 a motorsport-grade fixed-caliper upgrade over the factory sliding-caliper layout found on many trims.
- The rear axle is engineered with the Genuine AP Racing CP9541 Radi-CAL II 4-Piston Caliper so brake torque, rear stability, and electronic parking brake integration are addressed as part of the full system.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volkswagen Tiguan / R (AD1) |
| Model years | 2016-2024 |
| Front setup | Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper / 380mm |
| Rear setup | Genuine AP Racing CP9541 Radi-CAL II 4-Piston Caliper / 380mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 19" (for the 380 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 380 mm front rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front upgrade uses the Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper, a fixed six-piston caliper that spreads clamping load across the pad for stronger, more consistent pedal response than a typical single-sliding-piston factory setup. AP Racing is a recognized performance brake manufacturer, and the Radi-CAL II architecture is selected here for a rigid, lightweight performance-caliper package around the 380mm StopFlex carbon-ceramic rotor. StopFlex matches the CP9560 mounting position to the customer's exact Tiguan / R AD1 trim, wheel package, and front upright geometry.
Rear Caliper (Balance)
The rear upgrade uses the Genuine AP Racing CP9541 Radi-CAL II 4-Piston Caliper with a 380mm carbon-ceramic rotor to support rear brake contribution without destabilizing the car under hard deceleration. Because the Tiguan / R AD1 uses a factory electronic parking brake, rear-kit engineering must account for EPB function rather than treating the rear caliper as a simple cosmetic match.
Front & rear, engineered together: The CP9560 front and CP9541 rear calipers are specified as a matched 380mm front/rear system so brake torque, pad area, and thermal capacity are developed together. That matters on the Tiguan / R AD1 because a front-only upgrade can change pedal feel and bias while leaving the rear axle with factory heat capacity and dust output.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper |
| Front CCB rotors | 380mm |
| Rear calipers | Genuine AP Racing CP9541 Radi-CAL II 4-Piston Caliper |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this kit fit my exact 2016-2024 Tiguan or Tiguan R AD1 trim?
Fitment is confirmed per vehicle, not by chassis name alone. StopFlex verifies the exact year, trim, front knuckle/upright arrangement, hub geometry, wheel size, offset, and spoke clearance before setting the brackets, rotor-hat offsets, and caliper mounting for your Tiguan or Tiguan R.
What wheel size is required for the 380mm StopFlex kit?
The 380mm front and rear rotors require 19 inch or larger wheels. Wheel diameter alone is not enough; StopFlex also checks inner-barrel shape and spoke clearance against the Genuine AP Racing CP9560 front caliper and CP9541 rear caliper.
Will the electronic parking brake still work?
Yes, the Tiguan / R AD1 factory electronic parking brake is considered during rear-kit engineering. The rear package is not treated as a generic four-piston conversion; EPB compatibility and rear-caliper configuration are confirmed before production.
Why choose carbon-ceramic instead of replacement iron rotors?
Carbon-ceramic rotors reduce unsprung and rotating mass, produce far less visible brake dust, and tolerate repeated high-temperature stops better than typical iron rotors. On a Tiguan / R AD1 used for fast road driving, towing, mountain descents, or track sessions, the payoff is heat control and cleaner wheels rather than just a larger rotor appearance.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
