2024-2026+ Toyota Alphard (AH40) Carbon Ceramic Big Brake Kit — Brembo Shelby GT350 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2024-2026+ Toyota Alphard (AH40). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2024-2026+ | Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper / 380mm | TTSPORT EP4 4-Piston Forged Caliper integrated with EPB / 380mm | 19" |
Every StopFlex kit is bespoke-engineered for your exact model and trim — brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, never assumed from the platform. Trims that share a chassis name can differ mechanically: a pure performance variant often carries different knuckles, hub geometry, and wheel ET clearance than the standard models, so parts that bolt onto one are not the parts that fit the other. Calipers, pads, rotor hats, floating hardware, and brake lines ship as one matched system built to your confirmed trim. Modified knuckles, uprights, or non-factory suspension mounting points must be reviewed before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper OE / Part No.: L FR3Z-2B121-G · R FR3Z-2B120-F |
| Front CCB rotors | 380mm |
| Rear calipers | TTSPORT EP4 4-Piston Forged Caliper integrated with EPB |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Any kit order can be personalized: custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the hardware behind your wheels matches the rest of the build.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Winter & Cold-Weather Braking
A cold, untuned carbon-ceramic disc needs more pedal than iron on the first winter stops — normal material physics. StopFlex engineered the pad formula and disc coating specifically for cold starts, closing that gap: cold-car winter feel is now very close to summer feel. Keep a little extra distance on the coldest mornings; for harsh winters, choose Street Spec.
Caliper Overview
Front Caliper

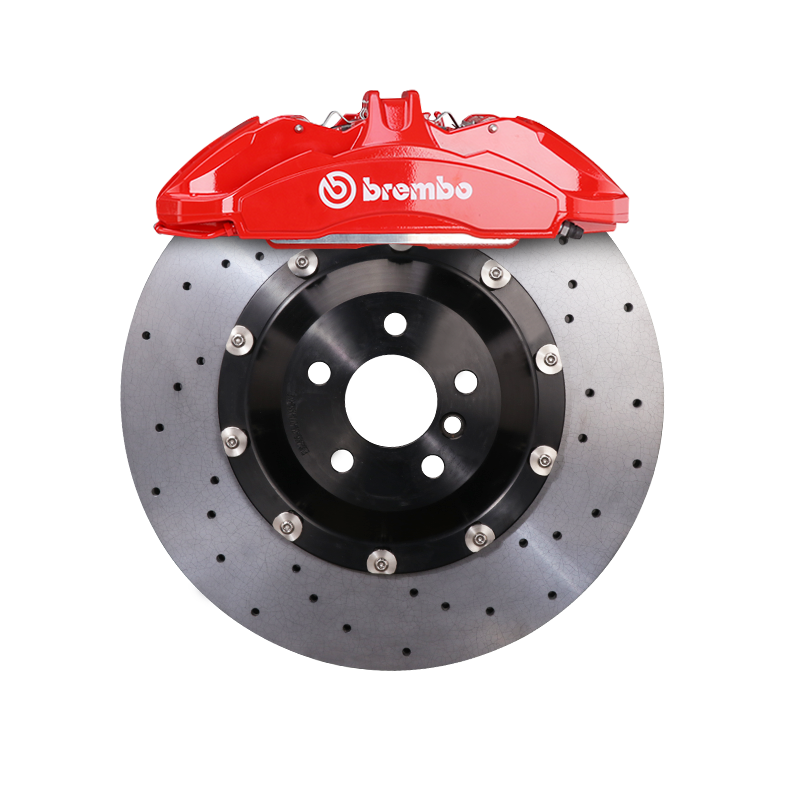

The front runs the Brembo OEM Ford Shelby GT350 Mustang 6-piston caliper, a factory-proven monoblock unit that keeps clamping force and pedal feel consistent as the front 380mm rotors heat up on long descents.
Rear Caliper
The rear uses the TTSPORT EP4 4-piston forged caliper with an integrated EPB. It runs four 28mm hydraulic service pistons plus one 27mm dedicated actuator piston that preserves the Alphard's factory electronic parking brake, adding real rear-axle thermal capacity without losing OE parking convenience. Total piston area is 30.4 sq cm per caliper in a two-piece forged-aluminum body weighing about 4.50 kg without pads.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Before ordering, tell us the exact vehicle, current rotor sizes, and caliper type. Nothing goes to production until the build is confirmed against your VIN-level configuration.
FAQ
Will these brakes work in winter and cold weather?
Yes. A cold carbon-ceramic disc naturally bites a little less than cold iron on the first stops of the day, which is physics, not a fault. StopFlex tunes both the low-metallic resin-composite pad and the disc's ceramic coating for cold starts, so cold-car braking feel comes very close to warmed-up summer feel. On the coldest first stops, still leave a little extra following distance until everything is up to temperature.
Will this fit my exact Alphard trim?
Every kit is bespoke-engineered to your confirmed AH40 trim. Brackets, rotor-hat offsets, and caliper mounting are cut for your specific front knuckles, hub geometry, and wheel clearance. We do not claim a platform-wide bolt-on, because trims sharing the Alphard chassis can differ mechanically. Send us your VIN and trim so we build the correct hardware for your car.
What wheel size do I need to clear the 380mm rotors?
The 380mm front rotors require a minimum 19-inch wheel. Wheels under 19 inches will not clear the front caliper and rotor package, and spoke geometry matters as much as diameter. Send us your wheel specs and we will confirm clearance before you order.
Does the rear caliper keep my electronic parking brake?
Yes. The TTSPORT EP4 rear caliper is built for platforms like the AH40 that require an EPB. It uses a dedicated 27mm actuator piston to preserve the factory electronic parking brake and auto-hold, while the four hydraulic pistons handle braking, so you keep OE convenience and gain rear thermal capacity.
