2015-2023 Toyota Alphard (AH30) Carbon Ceramic Big Brake Kit — Advics Lexus 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2015-2023 Toyota Alphard (AH30). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2015-2023 | Advics OEM Lexus 6-Piston Caliper / 400mm |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 380 mm rotor Option 2: Brembo GT | M4 4-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 380 mm rotor |
20" |
This kit is built per car, not per platform. We engineer the brackets, rotor-hat offsets, and caliper mounting to your confirmed model and trim, because trims sharing a chassis name frequently differ underneath — performance variants can run different knuckles, hub geometry, and wheel ET clearance than their standard siblings. You receive calipers, pads, rotor hats, floating hardware, and brake lines as one matched, trim-specific system. Cars with modified knuckles, uprights, or non-factory suspension mounting points need review before ordering.
The 400 mm rotor sets the minimum wheel size at 20" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | Advics OEM Lexus 6-Piston Caliper OE / Part No.: L 47750-48250 · R 47730-48280 |
| Front CCB rotors | 400mm |
| Rear calipers |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 380 mm rotor OE / Part No.: L 172-2523 · R 172-2524 Option 2: Brembo GT | M4 4-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 380 mm rotor |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Specify custom caliper colors, a custom caliper logo, and custom rotor hat colors on any kit order — the finished package matches your build instead of a standard catalog look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Winter & Cold-Weather Braking
Winter question, straight answer: untuned ceramic discs bite less when cold. StopFlex optimized the pad compound and the rotor's ceramic coating for cold operation, so cold-start braking in winter feels very close to warm-weather braking. Extra following distance on freezing first stops is still smart; severe-winter daily cars should run Street Spec.
Caliper Overview
Front Caliper

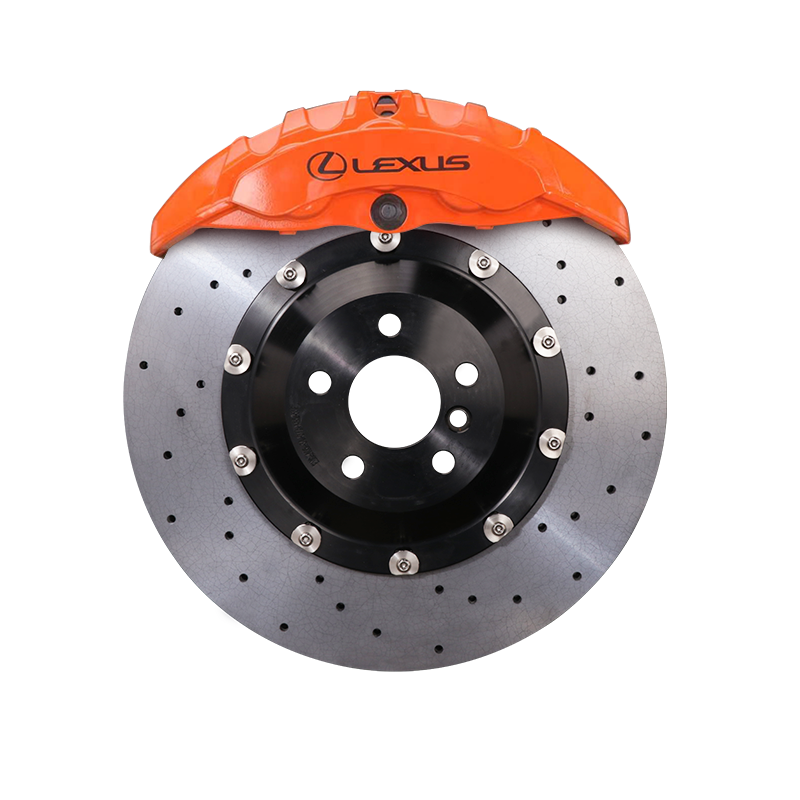

The front runs the Advics OEM Lexus 6-Piston Caliper, the same monobloc unit Toyota engineers spec on their large luxury platforms. Six pistons spread clamping load evenly across a 400mm rotor, which matters on a 4,500-lb Alphard where consistent pedal feel under repeated stops is the whole point.
Rear Caliper
For the rear you choose among the Brembo V4 / GT4 / GTS4 4-Piston Caliper Options, each paired with a 380mm rotor: V4 (Brembo OEM Cadillac CTS-V), GT4 (Brembo GT | M4), or GTS4 (Brembo GT | S4). All three add real rear thermal capacity so the fronts aren't doing all the work when the van is fully loaded.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Share your year, model, trim, wheel size, current rotor dimensions, and caliper type — every order is verified against your VIN-level configuration before it goes to production.
FAQ
Will these brakes bite in cold weather, or do I need to warm them up first?
A cold carbon-ceramic disc naturally bites a little less than cold iron on the first stop or two. That's physics, not a fault. StopFlex tunes both the pad compound and the disc's ceramic coating for cold starts, so on your Alphard the first winter stops now feel very close to summer. Leave a little extra following distance on the coldest morning pulls and you're set.
How do I know the kit fits my exact Alphard trim?
Every kit is engineered to your confirmed AH30 trim, not the platform as a whole. Brackets, rotor-hat offsets, and caliper mounting are cut for your specific front knuckle and hub geometry. Trims sharing the AH30 name can differ in upright and wheel clearance, so we never make a universal bolt-on claim. We confirm your VIN and trim before anything is machined.
What wheel size do I need to clear the 400mm front rotor?
The 400mm front rotor requires a minimum 20-inch wheel. Anything smaller won't clear the caliper and rotor, and spoke design matters too. Send us your wheel details during fitment and we'll verify caliper-to-spoke clearance before you commit.
Will this actually solve the soft pedal when the van is fully loaded?
Yes. The soft pedal and stretched stopping distances you feel with seven passengers come from iron rotors and factory calipers overheating. The Advics 6-piston front on a 400mm carbon-ceramic disc, backed by a 4-piston Brembo rear on 380mm, holds friction to around 750 degrees C with strong anti-fade behavior. Pedal stays firm through repeated heavy stops.
