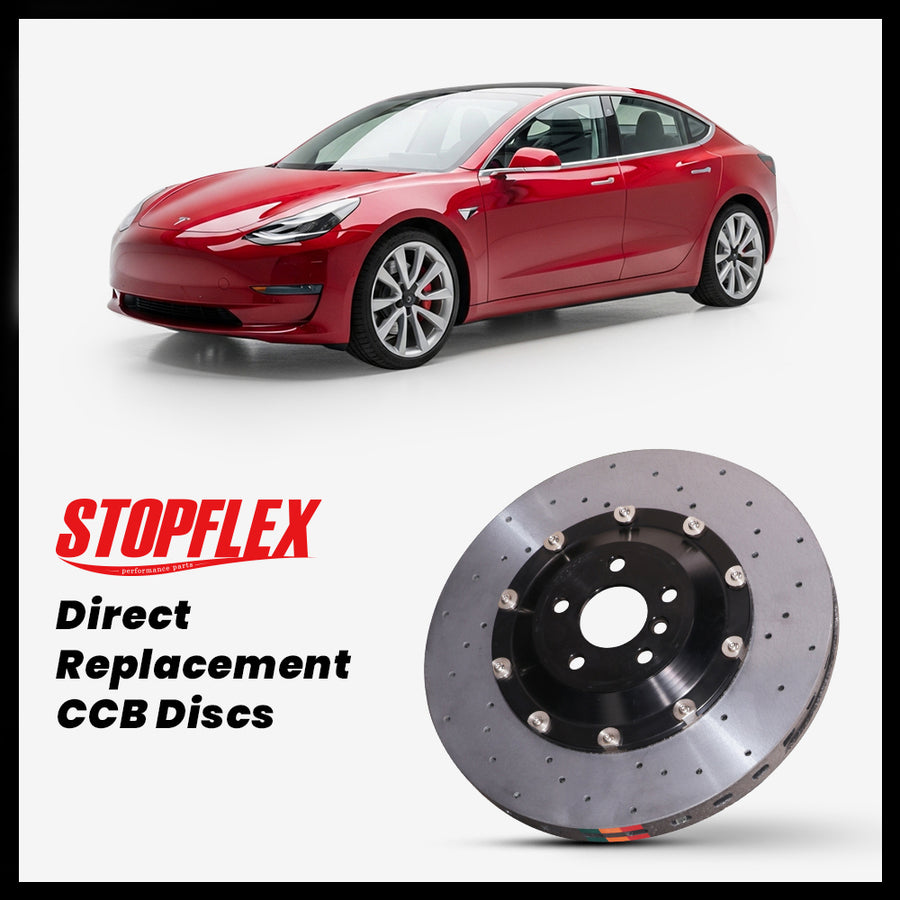

2017-2023 Tesla Model 3 / Performance (pre-Highland) Carbon Ceramic Brake Rotors — Direct Replacement
Official Warranty: We offer a 1-year free replacement for quality defects or coating issues under normal (non-track) use. Please note that provided specs apply strictly to brake hats and brackets; wheel fitment data is for general reference only. Wheel clearance issues are excluded from warranty coverage and data accuracy claims. If additional clearance is needed, wheel spacers must be added at the customer's discretion.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Direct Replacement CCB Discs (Retain Factory Calipers) for the 2017-2023 Tesla Model 3 / Performance (pre-Highland). Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| Perf | 355mm | 18" | |
| Highland | 320mm | 17" | |
| Perf/Highland | 335mm | 18" |
Keep Your Factory Calipers?
Yes — if your front factory calipers are fixed 4-piston or more. The rear axle has no restriction. Cars with 1- or 2-piston floating front calipers should use the Full Upgrade kit instead. The listed discs are built to the factory rotor specifications shown above. Aftermarket-caliper cars require a custom-fitment review of caliper model, pad shape, rotor dimensions and offset before a build is approved.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| Rotor construction | Short-Fiber Street Spec (lower price, street-only) or Long-Fiber Street / Track-Day / Motorsport Spec — chosen at order confirmation |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, carbon-ceramic friction surfaces are designed for low wear. Actual service life depends on mileage, contamination, pad choice, heat cycles and driving use.
Low Visible Dust
Matched StopFlex pads are selected for low visible dust on the ceramic friction surface. Actual wheel dust still varies with pad choice, traffic, temperature, bedding and driving intensity.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Short-Fiber or Long-Fiber — Your Call
Every StopFlex disc is true carbon-ceramic. Short-Fiber Street Spec uses a simpler chopped-fiber process for a lower price and street-only duty; the Long-Fiber line uses continuous carbon strands that carry load across the whole rotor for higher strength and thermal durability — the pick for track and race heat.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A like-size carbon-ceramic rotor can be materially lighter than an iron disc; the exact saving depends on rotor dimensions. Lower rotating, unsprung mass can reduce the load the suspension has to control.
High-Temperature Stability
The carbon-silicon-carbide friction material is selected for high-temperature stability and fade resistance. Overall pedal feel still depends on pad condition, fluid, caliper stiffness, cooling and operating temperature.
Winter & Cold-Weather Braking
Cold-weather trade-off: an untuned carbon-ceramic disc can have less initial bite than cold iron. StopFlex specifies a matched pad compound and ceramic coating tuned to reduce that cold-start gap, but the coldest first stops still deserve extra following distance. Severe-winter daily drivers should choose a Street Spec.
Choose Your Rotor: Short-Fiber Street to Long-Fiber Motorsport
Left to right is ascending duty. Short-Fiber Street Spec keeps carbon-ceramic benefits at a lower price for street use only; the Long-Fiber Street, Track-Day, and Motorsport specs add continuous-fiber strength and thermal durability for everything from daily premium builds to race weekends.
Short-Fiber Street Spec
Chopped short-fiber carbon-ceramic body, ceramic coating, cross-drilled face.
Choose this for street-only use when purchase price matters most. It keeps the carbon-ceramic friction surface and coated finish, but it is not specified for track sessions.
Long-Fiber Street Spec
Continuous long-fiber body, ceramic coating, cross-drilled face, large cooling channels.
Choose this for daily and fast-road use when you want the long-fiber construction without moving to a track-focused face and cooling specification.
Long-Fiber Track-Day Spec
Continuous long-fiber body, ceramic coating, blank face, honeycomb cooling channels.
Choose this for repeated fast-road or track-day braking where thermal duty matters more than the drilled street appearance. High-temperature fluid and appropriate cooling still matter.
Long-Fiber Motorsport Spec
Continuous long-fiber body, uncoated blank face, honeycomb cooling channels.
Choose this for competition-focused use with the corresponding pad, fluid, cooling and warm-up strategy. It is not the default recommendation for a street-driven car.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Before ordering, provide the exact vehicle, current rotor sizes, caliper type, and wheel details. Production starts only after the configuration is confirmed; VIN/build data is requested when it is needed to resolve fitment.
FAQ
Does this Direct Replacement set fit my 2017-2023 Tesla Model 3 / Performance?
This listing is limited to the supplied 2017-2023 Model 3 / Performance scope. Match the factory rotor reference before ordering: Performance front 355mm, Highland front 320mm, or rear 335mm. The front axle requires factory fixed 4-piston-or-larger calipers; the rear axle has no caliper restriction. Factory calipers are retained.
How do these carbon-ceramic discs behave in cold winter driving?
An untuned cold carbon-ceramic disc can have less initial bite than cold iron. StopFlex specifies a matched pad compound and disc coating to reduce that cold-start gap, but the coldest first stops still deserve extra margin. Do not expect identical summer and winter brake response before the system has warmed.
Which StopFlex rotor specification should I choose for a Model 3 Performance?
Choose Short-Fiber Street Spec for lower-cost street-only use. Long-Fiber Street suits higher-demand road use, while Long-Fiber Track-Day and Motorsport are intended for progressively greater heat and duty requirements. Owners reporting track heat or repeated hard-use concerns should select from the long-fiber options based on their actual driving schedule.
What is retained and what must I confirm before ordering?
This is a direct-replacement disc system, not a caliper conversion. It includes StopFlex CCB rotors, matched pads, vehicle-specific rotor hats, and floating hardware while retaining the factory calipers. Confirm the axle and factory rotor reference with StopFlex, especially where the front 355mm and 320mm references differ.
