2012-2019 Porsche 911 (991) Carrera Carbon Ceramic Big Brake Kit — Brembo 10-Piston
Official Warranty: We offer a 1-year free replacement for quality defects or coating issues under normal (non-track) use. Please note that provided specs apply strictly to brake hats and brackets; wheel fitment data is for general reference only. Wheel clearance issues are excluded from warranty coverage and data accuracy claims. If additional clearance is needed, wheel spacers must be added at the customer's discretion.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2012-2019 Porsche 911 (991) Carrera. This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2012-2019 | Brembo OEM Porsche 911 Turbo S 10-Piston Caliper / 420mm | Brembo OEM Porsche 911 GT3 4-Piston Caliper / 390mm | 21" |
Fitment here is bespoke: brackets, hat offsets, and caliper mounting are engineered for your exact model and trim rather than copied across the platform. Two trims with the same chassis code can still differ in knuckles, hub geometry, and wheel ET clearance — which is why we confirm your trim first, then build the matched system of calipers, pads, rotor hats, floating hardware, and lines for it. Modified knuckles, uprights, or non-factory suspension points require review before ordering.
The 420 mm rotor sets the minimum wheel size at 21" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | Brembo OEM Porsche 911 Turbo S 10-Piston Caliper OE / Part No.: L 992-615-123S · R 992-615-124S |
| Front CCB rotors | 420mm |
| Rear calipers | Brembo OEM Porsche 911 GT3 4-Piston Caliper OE / Part No.: L 9GT-615-423A · R 9GT-615-424A |
| Rear CCB rotors | 390mm |
| Rotor construction | Short-Fiber Street Spec (lower price, street-only) or Long-Fiber Street / Track-Day / Motorsport Spec — chosen at order confirmation |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Brake pad wear sensors | Included; specified for compatibility with the factory wear-sensor system, subject to final vehicle confirmation. |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Specify custom caliper colors, a custom caliper logo, and custom rotor hat colors on any kit order — the finished package matches your build instead of a standard catalog look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, carbon-ceramic friction surfaces are designed for low wear. Actual service life depends on mileage, contamination, pad choice, heat cycles and driving use.
Low Visible Dust
Matched StopFlex pads are selected for low visible dust on the ceramic friction surface. Actual wheel dust still varies with pad choice, traffic, temperature, bedding and driving intensity.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Short-Fiber or Long-Fiber — Your Call
Every StopFlex disc is true carbon-ceramic. Short-Fiber Street Spec uses a simpler chopped-fiber process for a lower price and street-only duty; the Long-Fiber line uses continuous carbon strands that carry load across the whole rotor for higher strength and thermal durability — the pick for track and race heat.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A like-size carbon-ceramic rotor can be materially lighter than an iron disc; the exact saving depends on rotor dimensions. Lower rotating, unsprung mass can reduce the load the suspension has to control.
High-Temperature Stability
The carbon-silicon-carbide friction material is selected for high-temperature stability and fade resistance. Overall pedal feel still depends on pad condition, fluid, caliper stiffness, cooling and operating temperature.
Winter & Cold-Weather Braking
On a freezing start, carbon-ceramic friction can feel different from warm operation. StopFlex pairs the disc coating with its matched street pad to improve cold response; it is still prudent to leave extra margin for the first stops in severe cold. Use a Street Spec for harsh-winter daily service.
Caliper Overview

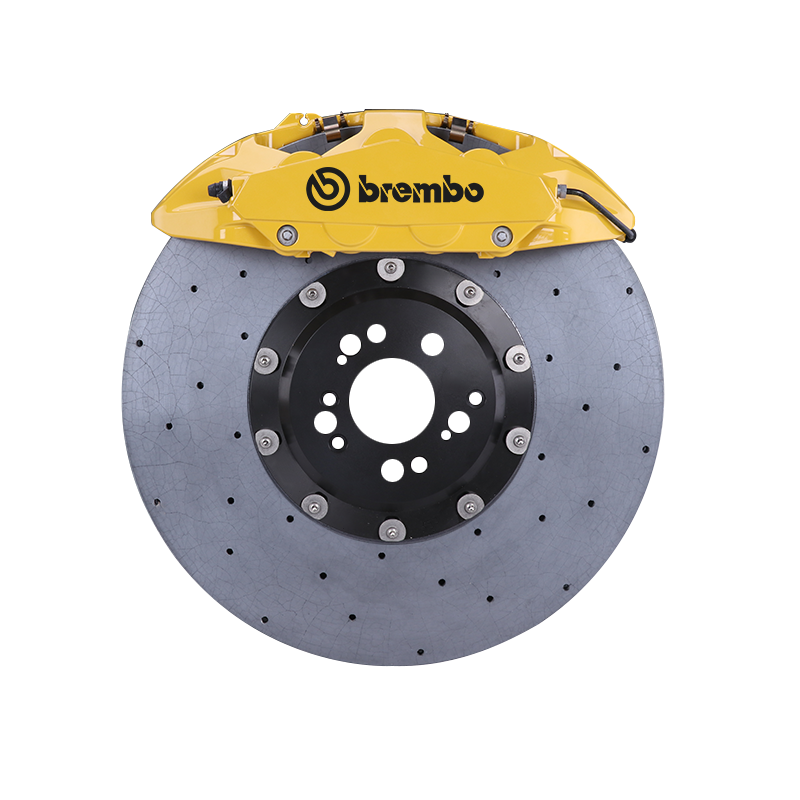

Front Caliper
The front upgrade uses the Brembo OEM Porsche 911 Turbo S 10-Piston Caliper with a 420mm rotor. This is the largest supplied rotor configuration and requires the listed wheel-clearance review.
Rear Caliper
The rear upgrade uses the Brembo OEM Porsche 911 GT3 4-Piston Caliper with a 390mm rotor. This is a full front-and-rear kit, not a front-only conversion.
Choose Your Rotor: Short-Fiber Street to Long-Fiber Motorsport
Pick by how you drive and what you want to spend. Street-only and budget-minded: Short-Fiber Street Spec. Premium street, track days, or competition: one of the three Long-Fiber specs, whose continuous carbon strands carry the strength and heat margin that repeated hard braking demands.
Short-Fiber Street Spec
Chopped short-fiber carbon-ceramic body, ceramic coating, cross-drilled face.
Choose this for street-only use when purchase price matters most. It keeps the carbon-ceramic friction surface and coated finish, but it is not specified for track sessions.
Long-Fiber Street Spec
Continuous long-fiber body, ceramic coating, cross-drilled face, large cooling channels.
Choose this for daily and fast-road use when you want the long-fiber construction without moving to a track-focused face and cooling specification.
Long-Fiber Track-Day Spec
Continuous long-fiber body, ceramic coating, blank face, honeycomb cooling channels.
Choose this for repeated fast-road or track-day braking where thermal duty matters more than the drilled street appearance. High-temperature fluid and appropriate cooling still matter.
Long-Fiber Motorsport Spec
Continuous long-fiber body, uncoated blank face, honeycomb cooling channels.
Choose this for competition-focused use with the corresponding pad, fluid, cooling and warm-up strategy. It is not the default recommendation for a street-driven car.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat still soaks into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Get Your Fitment Confirmed
Send the exact year, model, trim, current rotor sizes, caliper type, and wheel details before ordering. StopFlex confirms the supplied configuration before production and requests VIN/build data when needed.
FAQ
Does this kit fit every 2012-2019 Porsche 911 (991) Carrera?
Fitment is bespoke to the confirmed exact model and trim. This listing specifies a 420mm front setup with Brembo OEM Porsche 911 Turbo S 10-Piston Calipers and a 390mm rear setup with Brembo OEM Porsche 911 GT3 4-Piston Calipers. Brackets, hat offsets, and caliper mounting are not assumed to transfer between trims simply because they share the 991 platform.
What wheels are required for the 420mm front conversion?
The Python fitment chart sets a 21-inch minimum wheel size for this 420mm front rotor setup. Diameter alone is not enough: spoke profile and wheel offset still need physical clearance confirmation around the Brembo OEM Porsche 911 Turbo S 10-Piston Caliper before the kit is finalized.
Which StopFlex rotor specification should I choose?
Choose Short-Fiber Street Spec for lower-cost street-only use. Long-Fiber Street is the step up for more demanding road use, while Long-Fiber Track-Day and Motorsport are intended for progressively higher heat and duty requirements. Select from how the car is actually driven, then confirm the choice with the final fitment details.
What should I expect in winter or on cold first stops?
An untuned cold carbon-ceramic disc can have less initial bite than cold iron. StopFlex specifies a matched pad compound and disc coating to reduce that cold-start gap, but the coldest first stops still deserve extra margin. Do not expect identical warm-weather and winter first-stop behavior.
