2023-2026+ NIO ET5T Carbon Ceramic Big Brake Kit — AP Racing CP9570
Official Warranty: We offer a 1-year free replacement for quality defects or coating issues under normal (non-track) use. Please note that provided specs apply strictly to brake hats and brackets; wheel fitment data is for general reference only. Wheel clearance issues are excluded from warranty coverage and data accuracy claims. If additional clearance is needed, wheel spacers must be added at the customer's discretion.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2023-2026+ NIO ET5T. This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2023-2026+ | AP Racing CP9570 Radi-CAL 6-Piston Caliper / 380mm | TTSPORT EP4S 4-Piston Forged Caliper integrated with EPB / 380mm | 19" |
Fitment here is bespoke: brackets, hat offsets, and caliper mounting are engineered for your exact model and trim rather than copied across the platform. Two trims with the same chassis code can still differ in knuckles, hub geometry, and wheel ET clearance — which is why we confirm your trim first, then build the matched system of calipers, pads, rotor hats, floating hardware, and lines for it. Modified knuckles, uprights, or non-factory suspension points require review before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | AP Racing CP9570 Radi-CAL 6-Piston Caliper OE / Part No.: L CP9570-2SOR12 · R CP9570-3SOR12 |
| Front CCB rotors | 380mm |
| Rear calipers | TTSPORT EP4S 4-Piston Forged Caliper integrated with EPB |
| Rear CCB rotors | 380mm |
| Rotor construction | Short-Fiber Street Spec (lower price, street-only) or Long-Fiber Street / Track-Day / Motorsport Spec — chosen at order confirmation |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Specify custom caliper colors, a custom caliper logo, and custom rotor hat colors on any kit order — the finished package matches your build instead of a standard catalog look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Lower Unsprung Mass
A like-size carbon-ceramic rotor can be materially lighter than an iron disc; the exact saving depends on rotor dimensions. Lower rotating, unsprung mass can reduce the load the suspension has to control.
High-Temperature Stability
The carbon-silicon-carbide friction material is selected for high-temperature stability and fade resistance. Overall pedal feel still depends on pad condition, fluid, caliper stiffness, cooling and operating temperature.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, carbon-ceramic friction surfaces are designed for low wear. Actual service life depends on mileage, contamination, pad choice, heat cycles and driving use.
Low Visible Dust
Matched StopFlex pads are selected for low visible dust on the ceramic friction surface. Actual wheel dust still varies with pad choice, traffic, temperature, bedding and driving intensity.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Short-Fiber or Long-Fiber — Your Call
Every StopFlex disc is true carbon-ceramic. Short-Fiber Street Spec uses a simpler chopped-fiber process for a lower price and street-only duty; the Long-Fiber line uses continuous carbon strands that carry load across the whole rotor for higher strength and thermal durability — the pick for track and race heat.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Winter & Cold-Weather Braking
Winter use is possible, but cold-start behavior should be treated honestly: ceramic friction can have less initial bite before temperature builds. StopFlex tunes the matched pad/coating combination for cold response; keep extra distance on the coldest first stops and select a Street Spec for severe climates.
Caliper Overview
Front Caliper

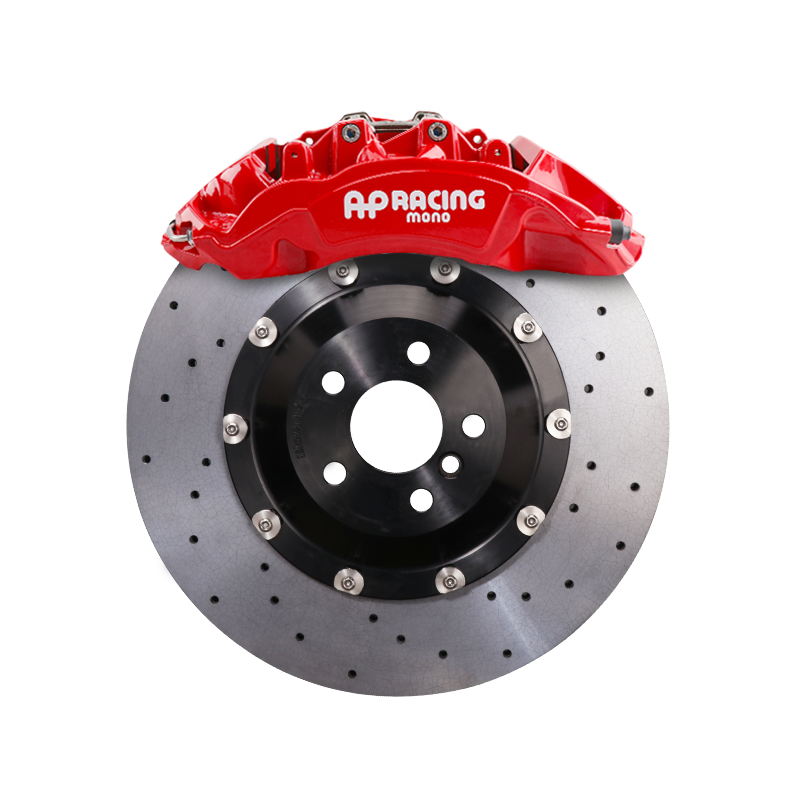

The front upgrade uses the AP Racing CP9570 Radi-CAL 6-Piston Caliper with a 380mm carbon-ceramic rotor. Caliper mounting, brackets and hat offset are confirmed for the exact ET5T trim before ordering.
Rear Caliper
The rear uses the TTSPORT EP4S 4-Piston Forged Caliper integrated with EPB and a 380mm carbon-ceramic rotor. Its dedicated EPB actuator retains the factory electronic parking-brake function.
Choose Your Rotor: Short-Fiber Street to Long-Fiber Motorsport
Left to right is ascending duty. Short-Fiber Street Spec keeps carbon-ceramic benefits at a lower price for street use only; the Long-Fiber Street, Track-Day, and Motorsport specs add continuous-fiber strength and thermal durability for everything from daily premium builds to race weekends.
Short-Fiber Street Spec
Chopped short-fiber carbon-ceramic body, ceramic coating, cross-drilled face.
Choose this for street-only use when purchase price matters most. It keeps the carbon-ceramic friction surface and coated finish, but it is not specified for track sessions.
Long-Fiber Street Spec
Continuous long-fiber body, ceramic coating, cross-drilled face, large cooling channels.
Choose this for daily and fast-road use when you want the long-fiber construction without moving to a track-focused face and cooling specification.
Long-Fiber Track-Day Spec
Continuous long-fiber body, ceramic coating, blank face, honeycomb cooling channels.
Choose this for repeated fast-road or track-day braking where thermal duty matters more than the drilled street appearance. High-temperature fluid and appropriate cooling still matter.
Long-Fiber Motorsport Spec
Continuous long-fiber body, uncoated blank face, honeycomb cooling channels.
Choose this for competition-focused use with the corresponding pad, fluid, cooling and warm-up strategy. It is not the default recommendation for a street-driven car.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Share your year, model, trim, wheel size, current rotor dimensions, and caliper type. The build is checked against those supplied details before production; VIN/build information may be requested for ambiguous configurations.
FAQ
Does this 380mm kit fit every 2023-2026+ NIO ET5T?
It is a bespoke full upgrade for the NIO ET5T, not a chassis-wide assumed fitment. The kit uses a 380mm front rotor with the AP Racing CP9570 Radi-CAL 6-Piston Caliper and a 380mm rear rotor with the TTSPORT EP4S integrated-EPB caliper. Confirm the exact trim before brackets, hat offsets and caliper mounting are finalized.
Which carbon-ceramic rotor spec should I choose for an ET5T?
Choose Short-Fiber Street Spec for lower-cost street-only use. Long-Fiber Street is the step up for regular road use, while Long-Fiber Track-Day and Motorsport are for progressively higher heat and duty requirements. Select based on actual use, not rotor appearance; the 380mm hardware configuration remains subject to confirmed vehicle and wheel clearance.
How does the kit behave in winter or on a cold first stop?
An untuned cold carbon-ceramic disc can have less initial bite than cold iron. StopFlex uses a matched pad compound and disc coating to reduce that cold-start gap, but the coldest first stops still deserve extra margin. Do not expect identical cold behavior to a fully warmed system in summer conditions.
Will I keep electronic parking brake function, and what wheels are required?
Yes. The TTSPORT EP4S rear caliper includes a dedicated EPB actuator piston, retaining the ET5T electronic parking brake. The 380mm kit has a 19-inch minimum wheel requirement, but diameter alone is not enough: spoke profile and wheel offset require physical clearance confirmation before the order is released.
