2014-2021 Mercedes-Benz S-Class / AMG (W222/V222/C217/A217) Carbon Ceramic Big Brake Kit — Brembo AMG 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2014-2021 Mercedes-Benz S-Class / AMG (W222/V222/C217/A217). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2014-2021 | OEM AMG 6-Piston Caliper / 390mm | OEM AMG EPB Single-Piston Caliper / 360mm | 20" |
Every StopFlex kit is bespoke-engineered for your exact model and trim — brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, never assumed from the platform. Trims that share a chassis name can differ mechanically: a pure performance variant often carries different knuckles, hub geometry, and wheel ET clearance than the standard models, so parts that bolt onto one are not the parts that fit the other. Calipers, pads, rotor hats, floating hardware, and brake lines ship as one matched system built to your confirmed trim. Modified knuckles, uprights, or non-factory suspension mounting points must be reviewed before ordering.
The 390 mm rotor sets the minimum wheel size at 20" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | OEM AMG 6-Piston Caliper OE / Part No.: L 205-421-69-98 · R 205-421-70-98 |
| Front CCB rotors | 390mm |
| Rear calipers | OEM AMG EPB Single-Piston Caliper OE / Part No.: L 231-423-03-81 · R 231-423-04-81 |
| Rear CCB rotors | 360mm |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Any kit order can be personalized: custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the hardware behind your wheels matches the rest of the build.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Caliper Overview
Front Caliper

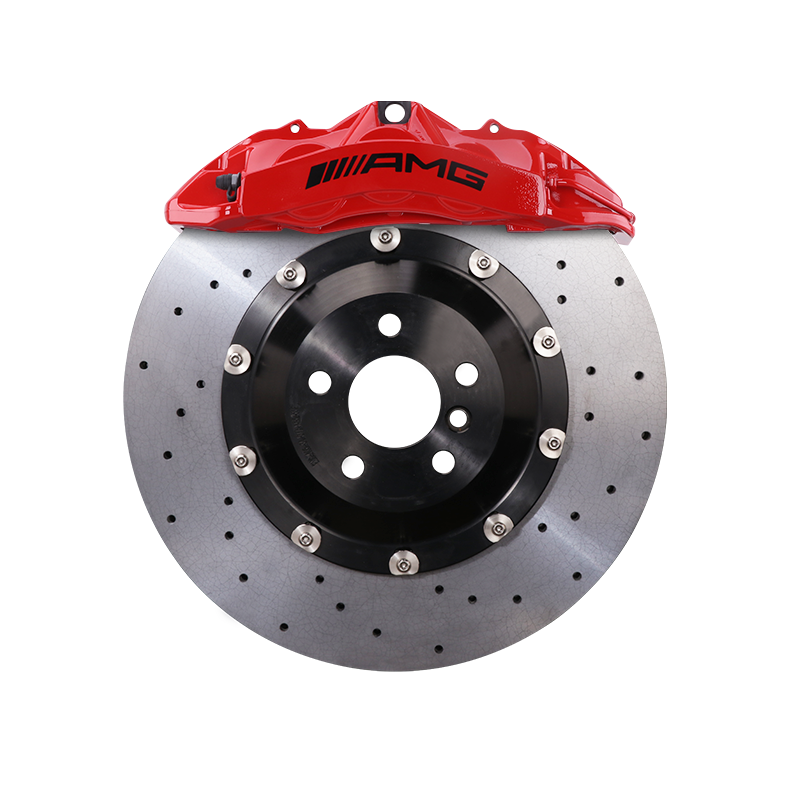

The front is the OEM AMG 6-piston fixed caliper matched to a 390mm carbon-ceramic rotor, chosen for consistent clamping and firm pedal feel on a heavy S-Class that carries real speed into every stop.
Rear Caliper
The rear runs the OEM AMG EPB single-piston caliper on a 360mm carbon-ceramic disc, adding rear thermal capacity while keeping the factory electronic parking brake fully functional.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Before ordering, tell us the exact vehicle, current rotor sizes, and caliper type. Nothing goes to production until the build is confirmed against your VIN-level configuration.
FAQ
How do these brakes behave on a cold winter morning?
An untuned carbon-ceramic disc bites less than cold iron on the first stop or two — that is normal physics, not a defect. We tune both the pad compound and the disc's ceramic coating for cold starts, so cold-car feel on your S-Class now comes very close to summer feel. On the coldest first stops, still leave a little extra following distance until the discs come up to temperature.
Will this fit my exact S-Class trim?
Every kit is engineered for your confirmed trim, not the W222 platform in general. An S63 or S65 can use different front knuckles, hub geometry, and wheel clearance than an S550 or S560, so we build the brackets, rotor-hat offsets, and caliper mounting to your specific car. We confirm your VIN and trim before anything ships — no assumed platform-wide bolt-on.
What wheels do I need to clear the 390mm front rotor?
The 390mm front carbon-ceramic rotor requires a minimum 20-inch wheel; anything smaller will not clear the caliper. Spoke shape and barrel clearance also matter, so send us your wheel details and we'll verify fit before we build.
Does the kit keep my electronic parking brake working?
Yes. The rear uses the OEM AMG EPB single-piston caliper on a 360mm carbon-ceramic disc, so your factory electronic parking brake operates exactly as it does now, including auto-hold and hill-start functions.
