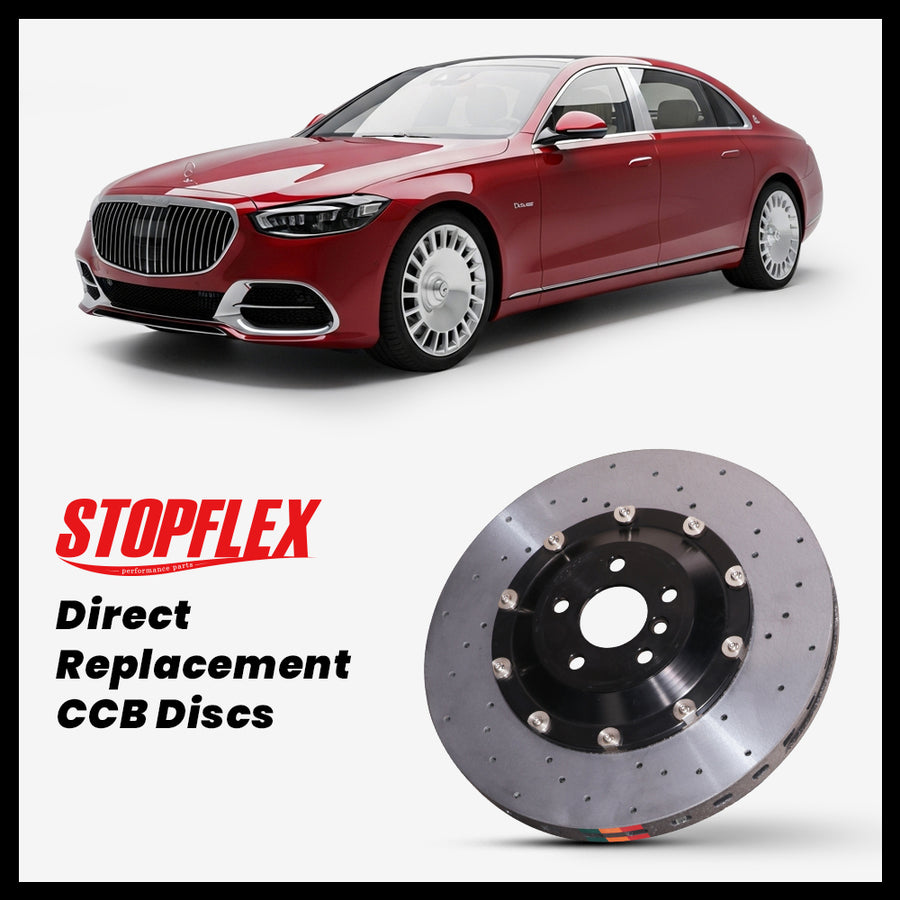

2022-2026+ Mercedes-Maybach S680 / S580 (Z223) Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Direct Replacement CCB Discs (Retain Factory Calipers) for the 2022-2026+ Mercedes-Maybach S680 / S580 (Z223). Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| S680/S580 | 390mm | 360mm | 20" |
Keep Your Factory Calipers?
Yes — if your front factory calipers are fixed 4-piston or more. The rear axle has no restriction. Cars with 1- or 2-piston floating front calipers should use the Full Upgrade kit (calipers + discs) instead. Discs are built to the factory rotor specs shown above; if you run aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood), we simply confirm the caliper model, pad shape, and rotor dimensions before production.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat still soaks into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Will this fit my Maybach S680 or S580 without changing the calipers?
Yes, provided your car runs the factory 390mm front / 360mm rear rotor sizes listed for the Z223 S680 and S580. This is a direct replacement kit: the carbon-ceramic rotors, hats, and floating hardware are machined to bolt to your existing front and rear calipers. Because Direct Replacement requires a front caliper with four pistons or more, confirm your front factory caliper piston count before ordering. Send us your VIN and we verify the exact rotor diameter and caliper before anything ships.
How do these behave in winter and cold starts?
Physics first: any cold carbon-ceramic disc bites a little softer than cold iron on the first stops of the day, so a stone-cold Z223 will feel slightly different from a warm one. That is normal, not a fault. We tuned both the pad compound and the disc's ceramic surface coating specifically for cold engagement, so cold-car feel on this car now lands very close to warm summer feel. On the coldest mornings, leave a bit of extra following distance for your first one or two stops until temperature comes into the discs.
Why is this so much cheaper than a Mercedes dealer CCB service?
Owners routinely see quotes near $18k for a full four-corner factory carbon-ceramic job on these cars. This kit reuses your factory calipers and only replaces the wear items that actually need replacing: the 390mm front and 360mm rear carbon-ceramic discs, hats, floating hardware, and matched pads. You keep the calipers that are already fine, which removes the biggest line item from a dealer replacement.
How long do these carbon-ceramic rotors last on a car this heavy?
The Z223 Maybach is a heavy flagship sedan, and carbon-ceramic discs are chosen precisely because they resist wear and heat far better than iron under that mass. Paired with our carbon-ceramic-specific low-metallic pad (about 0.44 friction coefficient, heat resistance to roughly 750 °C with strong anti-fade behavior), the discs are protected from the abrasive wear that shortens iron rotor life. Driven normally in a luxury sedan, expect long service intervals; track use accelerates wear as with any material.
