2003-2009 Mercedes-Benz E-Class / AMG (W211/S211) CCB Big Brake Kit | Brembo GT6 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

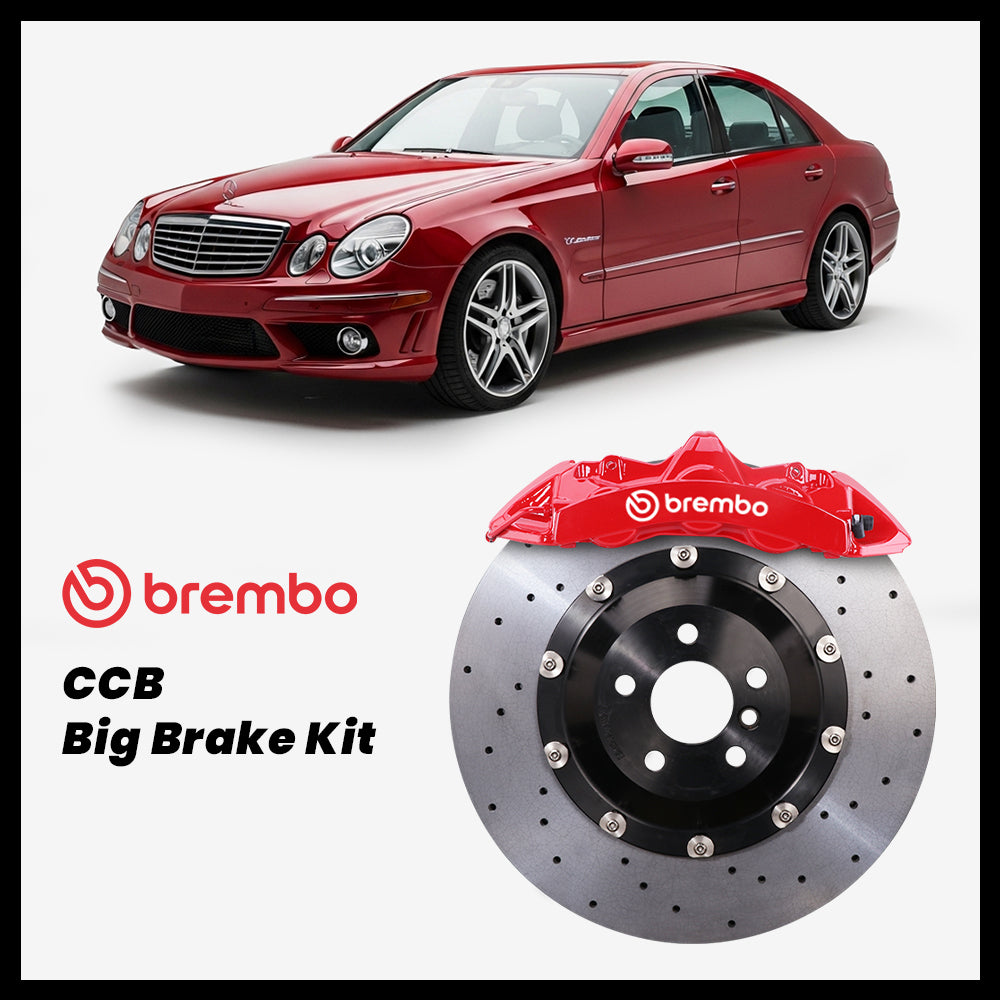

2003-2009 Mercedes-Benz E280 / E320 / E350 / E500 / E550 / E55 / E63 (W211/S211) CCB Big Brake Kit — Genuine Brembo GT6 Front + Genuine Brembo GT4 Rear Setup
W211/S211 E-Class owners shopping this kit are usually trying to solve heavy front-axle braking load, repeated iron-rotor heat cycling, pad dust on open wheels, or the cost of building a serious brake package around AMG-level power. This StopFlex kit pairs 380mm carbon-ceramic rotors with Brembo V6 / GT6 / GTS6 6-piston front caliper options and Brembo V4 / GT4 / GTS4 4-piston rear options to add heat capacity, fade resistance, lower brake dust, and reduced rotating mass. Each kit is engineered to the exact E280, E320, E350, E500, E550, E55, or E63 configuration rather than treated as a one-size W211/S211 bolt-on.
- All front and rear caliper options in this W211/S211 kit use 380mm carbon-ceramic rotors, so 19 inch wheels are the minimum and spoke clearance must be checked before production.
- The front axle can be configured with V6, GT6, or GTS6 Brembo 6-piston calipers, giving standard E-Class and AMG E55/E63 buyers a brake package sized around the same 380mm rotor envelope.
- StopFlex confirms the exact sedan or wagon trim because W211/S211 standard and AMG models can differ in upright, hub, offset, and wheel-clearance requirements.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Mercedes-Benz E280 / E320 / E350 / E500 / E550 / E55 / E63 (W211/S211) |
| Model years | 2003-2009 |
| Front setup | Brembo V6 / GT6 / GTS6 6-Piston Caliper Options / 380mm |
| Rear setup | Brembo V4 / GT4 / GTS4 4-Piston Caliper Options / 380mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 19" (for the 380 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 380 mm front rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front upgrade uses Brembo V6 / GT6 / GTS6 6-Piston Caliper Options, with six pistons distributing clamp load across the pad for firmer pedal response and more even pressure on the 380mm carbon-ceramic rotor. The buyer chooses V6 = Genuine Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor, GT6 = Genuine Brembo GT | M6 6-Piston Caliper — 380 mm rotor, or GTS6 = Genuine Brembo GT | S6 6-Piston Caliper — 380 mm rotor. Each option is a genuine Brembo caliper package selected for a rigid performance-brake architecture rather than a cosmetic caliper cover or generic casting.
Rear Caliper (Balance)
The rear package uses Brembo V4 / GT4 / GTS4 4-Piston Caliper Options on 380mm carbon-ceramic rotors to support rear axle braking stability and keep the car balanced under high-speed deceleration. Rear choices are V4 = Genuine Brembo OEM Cadillac CTS-V 4-Piston Caliper, GT4 = Genuine Brembo GT | M4 4-Piston Caliper, or GTS4 = Genuine Brembo GT | S4 4-Piston Caliper, each matched to the 380mm rear rotor.
Front & rear, engineered together: The front and rear systems are engineered together so piston area, rotor diameter, pad choice, hat offset, and caliper position work as a matched brake package. That matters on the W211/S211 because adding a large front-only brake kit can shift effective bias forward and leave rear braking contribution, pedal feel, and stability behind the front upgrade.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Brembo V6 / GT6 / GTS6 6-Piston Caliper Options |
| Front CCB rotors | 380mm |
| Rear calipers | Brembo V4 / GT4 / GTS4 4-Piston Caliper Options |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
| Front caliper option mapping | V6 = Genuine Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor GT6 = Genuine Brembo GT | M6 6-Piston Caliper — 380 mm rotor GTS6 = Genuine Brembo GT | S6 6-Piston Caliper — 380 mm rotor |
| Rear caliper option mapping | V4 = Genuine Brembo OEM Cadillac CTS-V 4-Piston Caliper — 380 mm rotor GT4 = Genuine Brembo GT | M4 4-Piston Caliper — 380 mm rotor GTS4 = Genuine Brembo GT | S4 4-Piston Caliper — 380 mm rotor |
FAQ
Will this kit fit my exact W211 or S211 trim?
Fitment is engineered after the exact E280, E320, E350, E500, E550, E55, or E63 configuration is confirmed. StopFlex does not assume one W211/S211 bracket or rotor-hat offset fits every sedan, wagon, standard model, and AMG variant.
What wheel size do I need for the 380mm setup?
The 380mm front and rear carbon-ceramic rotors require 19 inch wheels minimum. Wheel diameter alone is not enough; StopFlex also checks spoke clearance against the selected Brembo V6, GT6, GTS6, V4, GT4, or GTS4 caliper package.
Does this W211/S211 kit need EPB integration?
No. The 2003-2009 W211/S211 E-Class uses a mechanical foot-operated parking brake with cables and rear parking shoes, so there is no factory electronic parking brake motor to retain or code.
Why choose carbon-ceramic instead of another iron big brake kit?
Carbon-ceramic rotors reduce rotating and unsprung mass compared with comparable iron discs, produce less visible brake dust, and tolerate repeated high-temperature use better when paired with the correct pads. On a heavy E-Class or AMG W211, those gains matter most during fast road driving, mountain use, and track sessions where heat recovery and pedal consistency decide whether the car remains confidence-inspiring.
