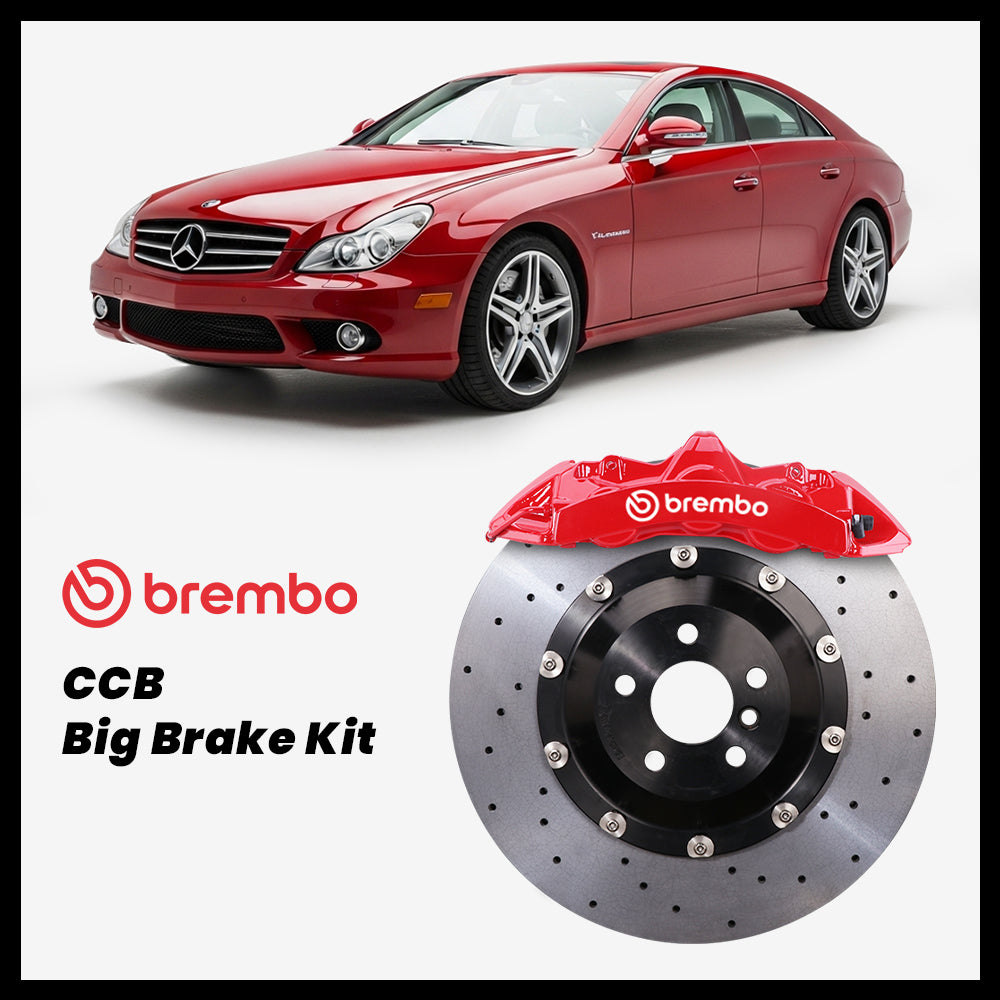

2005-2010 Mercedes-Benz CLS-Class / AMG (C219) Carbon Ceramic Big Brake Kit — Brembo GT6 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2005-2010 Mercedes-Benz CLS-Class / AMG (C219). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2005-2010 |
Option 1: Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor Option 2: Brembo GT | M6 6-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S6 6-Piston Caliper — 380 mm rotor |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 380 mm rotor Option 2: Brembo GT | M4 4-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 380 mm rotor |
19" |
Fitment here is bespoke: brackets, hat offsets, and caliper mounting are engineered for your exact model and trim rather than copied across the platform. Two trims with the same chassis code can still differ in knuckles, hub geometry, and wheel ET clearance — which is why we confirm your trim first, then build the matched system of calipers, pads, rotor hats, floating hardware, and lines for it. Modified knuckles, uprights, or non-factory suspension points require review before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers |
Option 1: Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor OE / Part No.: L 172-2521 · R 172-2522 Option 2: Brembo GT | M6 6-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S6 6-Piston Caliper — 380 mm rotor |
| Rear calipers |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 380 mm rotor OE / Part No.: L 172-2523 · R 172-2524 Option 2: Brembo GT | M4 4-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 380 mm rotor |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Specify custom caliper colors, a custom caliper logo, and custom rotor hat colors on any kit order — the finished package matches your build instead of a standard catalog look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Caliper Overview
Front Caliper
The front runs a Brembo 6-piston caliper on a 380 mm carbon-ceramic disc, offered as three options: V6 (Brembo OEM Cadillac CTS-V), GT6 (Brembo GT | M6), or GTS6 (Brembo GT | S6). All three hold even pad pressure across six pistons for a firm, repeatable pedal on the C219's front axle.
Rear Caliper
The rear pairs a Brembo 4-piston caliper with a 380 mm carbon-ceramic disc in V4, GT4, or GTS4 form, adding rear thermal capacity so the front axle isn't doing all the work on long descents or repeated hard stops.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Before ordering, tell us the exact vehicle, current rotor sizes, and caliper type. Nothing goes to production until the build is confirmed against your VIN-level configuration.
FAQ
Will this fit my exact CLS trim — CLS550 vs CLS63 AMG?
Each kit is engineered for your confirmed trim, not the C219 platform in general. The CLS63 AMG can differ from a CLS500 or CLS550 in front knuckle geometry, hub offset, and wheel clearance, so we cut brackets and set rotor-hat offsets to match your specific car. Send us your VIN and trim and we build the caliper mounting to it — no assumed bolt-on.
What wheels do I need to clear the 380 mm rotors?
The front and rear both use 380 mm carbon-ceramic discs, so 19-inch wheels are the minimum. Anything under 19 inches will not clear the disc and 6-piston caliper. Spoke shape matters too — deep-dish or heavily curved spokes can foul the caliper even at 19 inches, so confirm your wheel model with us before ordering.
How do these brakes behave in winter cold?
A cold carbon-ceramic disc naturally bites a little less than cold iron on the first stops — that's physics, not a fault. We've tuned both the pad compound and the disc's ceramic coating for cold starts, so cold-car feel on your CLS now comes very close to warm summer feel after the first light stop. On the coldest mornings, still leave a bit of extra following distance for your first couple of stops.
Does this work with the C219's parking brake?
Yes. The C219 uses a foot-pedal cable parking brake acting on a small drum inside the rear hat, so there's no electronic parking brake to integrate. Our rear hats are machined to retain that parking-brake drum function, and the kit includes the pads, hats, hardware, and stainless lines to complete the job.
