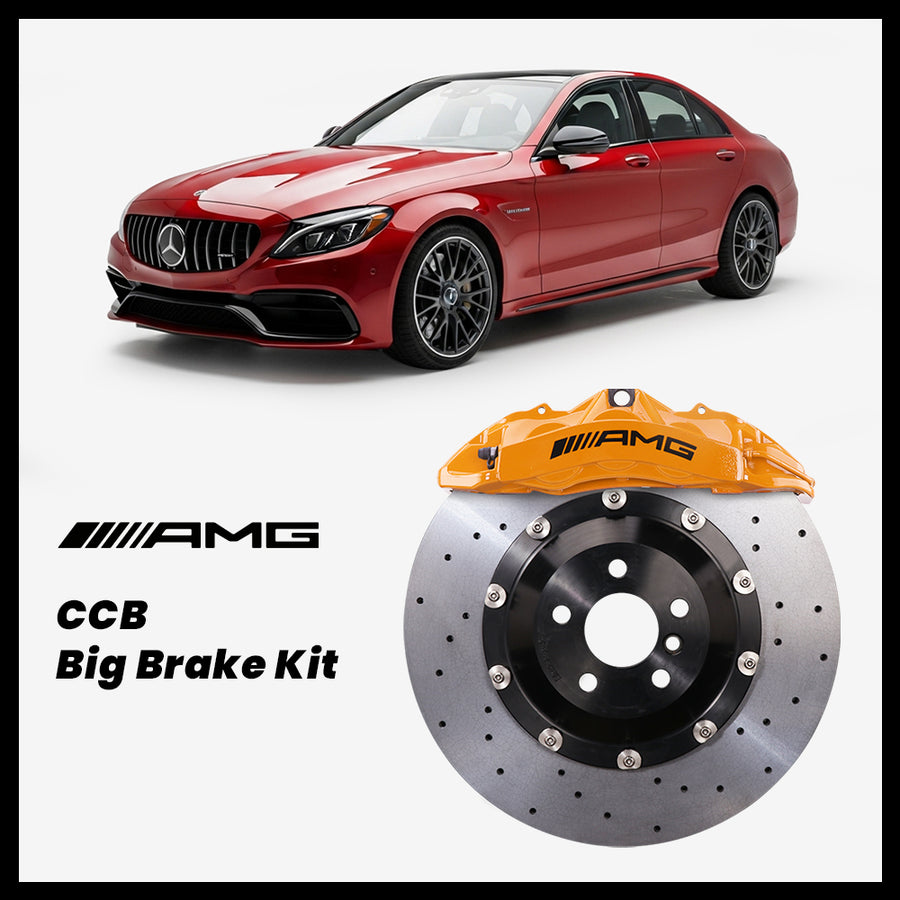

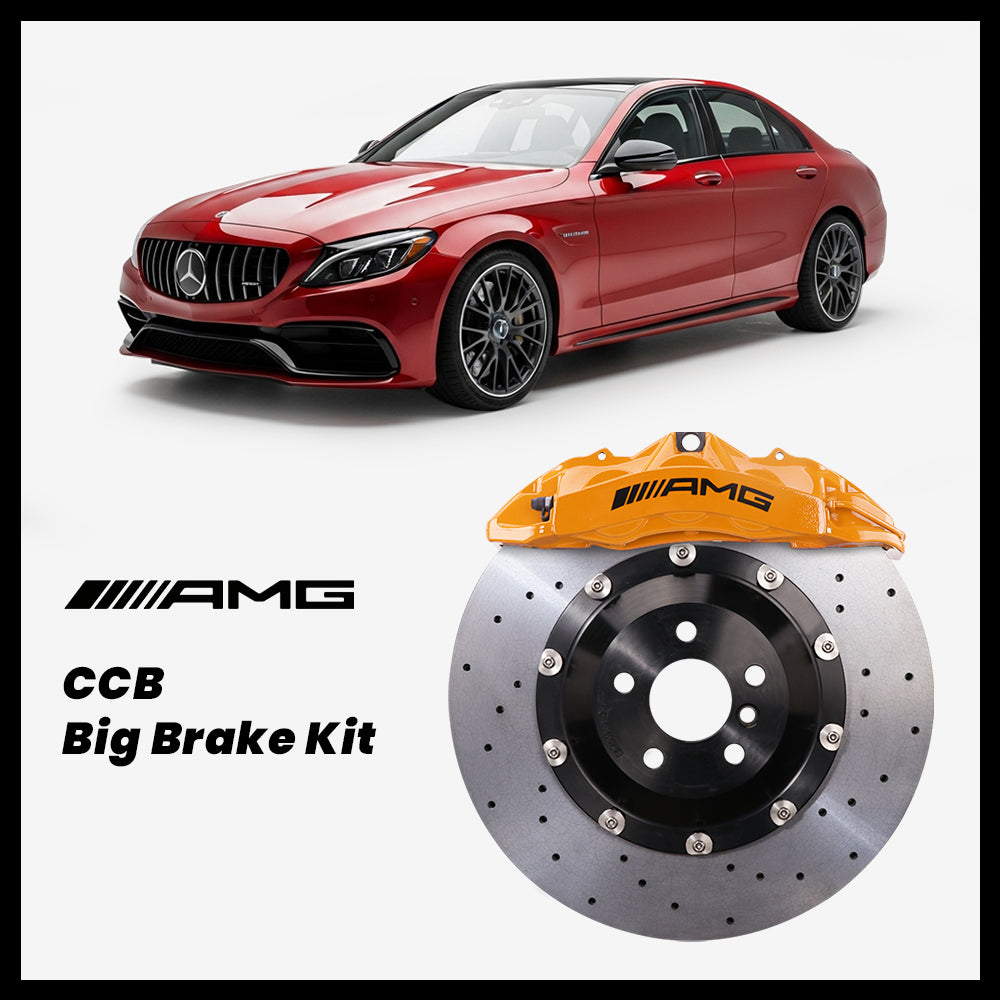

2015-2023 Mercedes-Benz C-Class / AMG (W205/S205/C205/A205) Carbon Ceramic Big Brake Kit — Brembo AMG 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2015-2023 Mercedes-Benz C-Class / AMG (W205/S205/C205/A205). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2015-2023 | OEM AMG 6-Piston Caliper / 390mm | OEM AMG 4-Piston Caliper / 380mm | 20" |
This kit is built per car, not per platform. We engineer the brackets, rotor-hat offsets, and caliper mounting to your confirmed model and trim, because trims sharing a chassis name frequently differ underneath — performance variants can run different knuckles, hub geometry, and wheel ET clearance than their standard siblings. You receive calipers, pads, rotor hats, floating hardware, and brake lines as one matched, trim-specific system. Cars with modified knuckles, uprights, or non-factory suspension mounting points need review before ordering.
The 390 mm rotor sets the minimum wheel size at 20" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | OEM AMG 6-Piston Caliper OE / Part No.: L 205-421-69-98 · R 205-421-70-98 |
| Front CCB rotors | 390mm |
| Rear calipers | OEM AMG 4-Piston Caliper OE / Part No.: L 204-423-99-98 · R 204-423-00-97 |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Every StopFlex kit order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors — the brake package matches your exact build, not a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
Winter & Cold-Weather Braking
Winter question, straight answer: untuned ceramic discs bite less when cold. StopFlex optimized the pad compound and the rotor's ceramic coating for cold operation, so cold-start braking in winter feels very close to warm-weather braking. Extra following distance on freezing first stops is still smart; severe-winter daily cars should run Street Spec.
Caliper Overview
Front Caliper

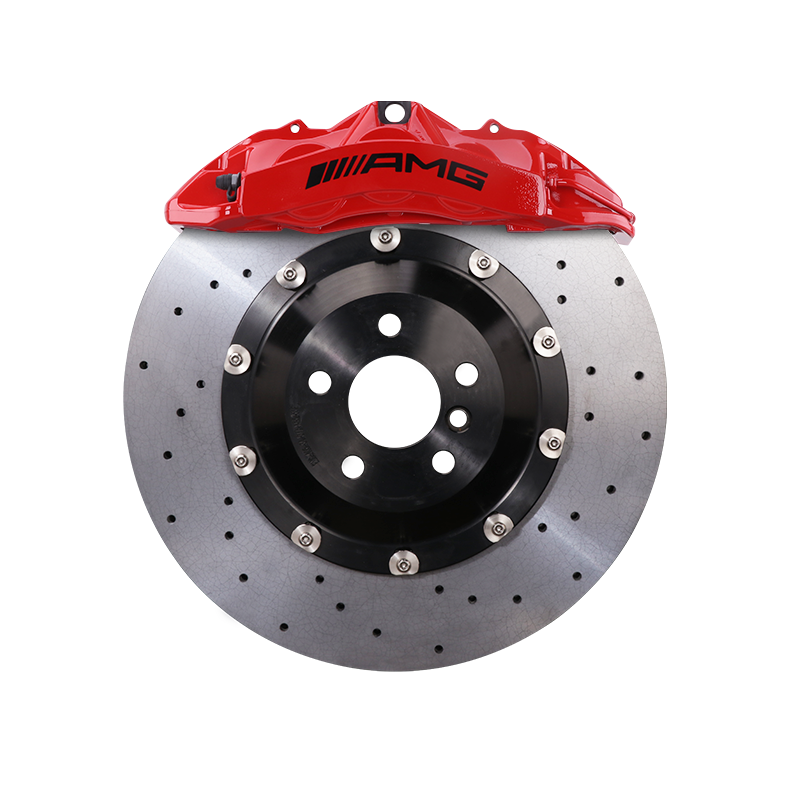

The front runs the OEM AMG 6-Piston Caliper clamping a 390mm carbon-ceramic rotor. Six pistons spread pad pressure evenly across a tall pad, so pedal feel stays consistent from a cold first stop through repeated hard braking.
Rear Caliper
The rear uses the OEM AMG 4-Piston Caliper on a 380mm carbon-ceramic rotor for real rear thermal capacity under heavy trail-braking. On EPB-equipped trims the caliper is set up to keep your factory electronic parking brake working.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Before ordering, tell us the exact vehicle, current rotor sizes, and caliper type. Nothing goes to production until the build is confirmed against your VIN-level configuration.
FAQ
How do these carbon-ceramic brakes behave in winter and on cold mornings?
A carbon-ceramic disc that hasn't been tuned will bite less than cold iron on the first stop or two — that's normal physics, not a defect. On this kit we've matched both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car feel now comes very close to summer feel. On the coldest first stops it's still smart to leave a little extra following distance until the front 390mm and rear 380mm rotors come up to temperature.
Will this kit actually fit my exact C-Class, or is it a generic W205 fit?
It's built for your confirmed trim, not the platform. A C300 and a C63S share the W205 name but differ in front knuckles, hub geometry, and wheel clearance, so we cut the brackets, rotor-hat offsets, and caliper mounting to match the car you own. We don't make a universal bolt-on claim — you send your trim and we engineer to it.
What wheels do I need to clear these rotors?
The front rotor is 390mm, so 20-inch wheels are the minimum. Anything under 20 inches will not clear the disc and caliper. Spoke shape matters too, not just diameter, so send us your wheel details and we'll confirm clearance before you buy.
Does this work with the electronic parking brake on my C-Class?
Yes. The W205 range uses a factory electric parking brake, and the OEM AMG 4-Piston rear caliper in this kit is configured to retain that function, so your dash EPB button and auto-hold keep working normally.
