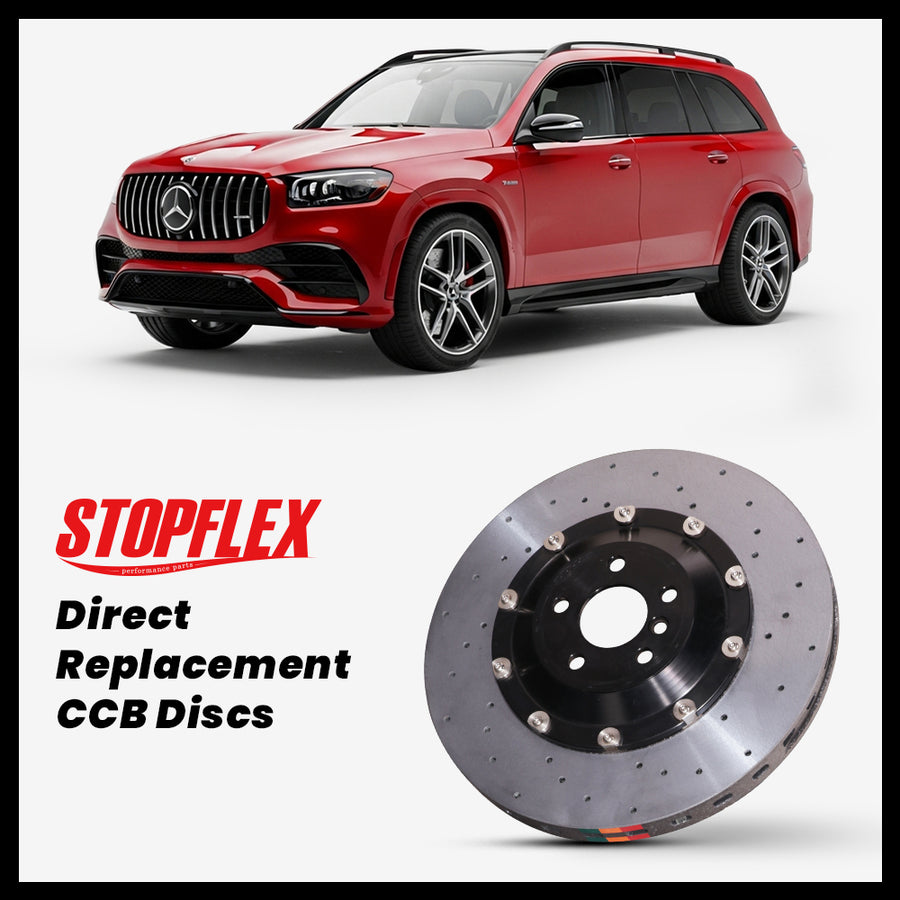

2020-2026+ Mercedes-AMG GLS63 (X167) Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Direct Replacement CCB Discs (Retain Factory Calipers) for the 2020-2026+ Mercedes-AMG GLS63 (X167). Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| GLS63 | 400mm | 370mm | 20" |
Keep Your Factory Calipers?
The rule is simple: front factory calipers must be 4-piston or more; the rear has no limit. A 1- or 2-piston floating front setup cannot take direct-replacement discs — that car needs the Full Upgrade kit with calipers. We build to the factory rotor specs above. Aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood) work too — send the caliper model, pad shape, and rotor size for confirmation first.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat still soaks into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
The dealer quoted me close to $20,000 to replace my GLS63 carbon ceramic brakes. Does this kit really fit?
Yes. This is a direct replacement for the factory front 400mm and rear 370mm carbon-ceramic setup on the 2020-2026+ AMG GLS63 (X167). You keep your existing AMG calipers and bolt on new carbon-ceramic rotors, hats, floating hardware, and matched pads. That's why the price lands far below a dealer system replacement — you're not paying to replace calipers or lines that are still perfectly good.
Will these work with my factory calipers, or do I need new ones?
You reuse your factory calipers. The GLS63 runs multi-piston fixed calipers at the front, which is exactly what Direct Replacement requires — a 4-piston or larger front caliper. The rotors, hats, and floating hardware in this kit are dimensioned to the factory 400mm front / 370mm rear geometry so pad contact, clearance, and the electronic parking brake all function as delivered. No caliper swap, no line changes.
How do these behave in cold weather and winter starts on a heavy SUV like the GLS63?
A cold carbon-ceramic disc naturally bites a little less than cold iron on the first stop — that's physics, not a fault, and it's true of the factory CCM discs too. On the GLS63, which carries real curb weight, we tuned both the pad compound and the disc's ceramic coating for cold-start friction, so winter cold-car feel now comes very close to warm summer feel. On the coldest first stop of the day, leave a bit of extra following distance until the discs take heat — a smart habit with any ceramic brake.
Are these rotors as durable as the factory carbon ceramics, and will they last?
They're built to the same carbon-ceramic material class as the original X167 discs and carry the AMG-scale front 400mm / rear 370mm dimensions, so heat capacity and wear life match what you expect from OEM CCM. The matched pads are a low-metallic resin composite with steel, copper, and aramid fiber, averaging about 0.44 friction and holding up to roughly 750 °C with strong anti-fade behavior — sized for the GLS63's mass and towing loads.
