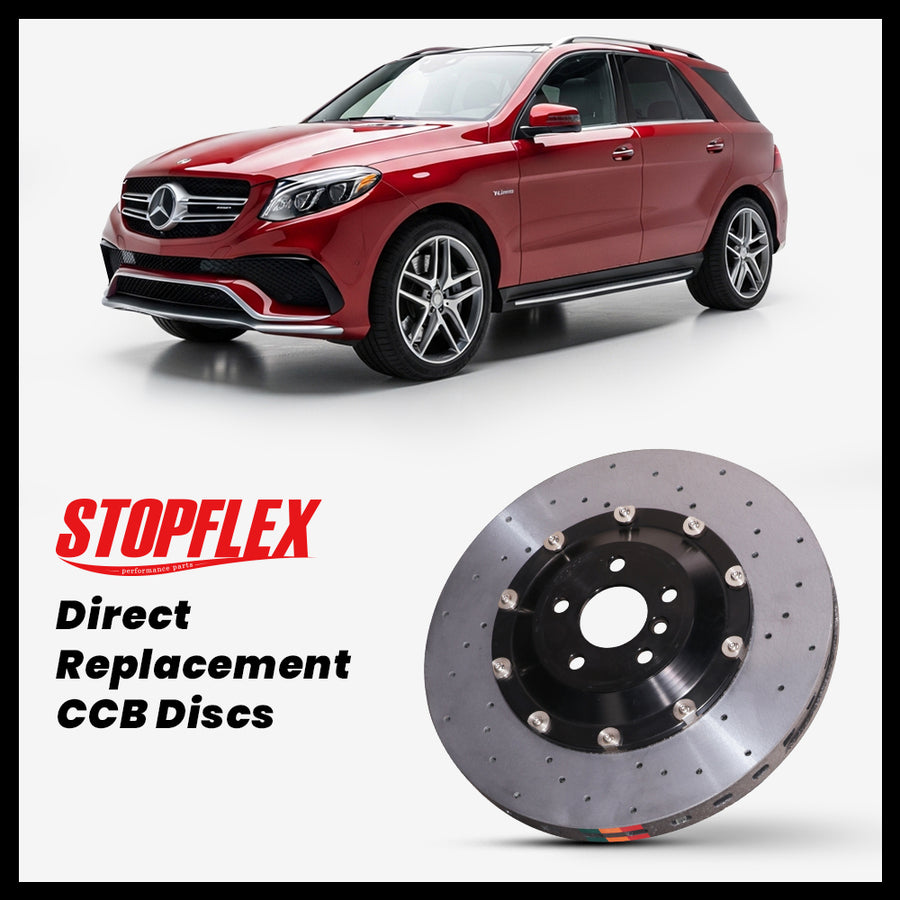

2016-2019 Mercedes-AMG GLE63 S / GLE63 / GLE43 (W166/C292) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2016-2019 Mercedes-AMG GLE63 S / GLE63 / GLE43 (W166/C292) Carbon Ceramic Brake Kit — OEM-Size Replacement
The W166/C292 AMG GLE is heavy, fast, and hard on iron discs, so repeat high-speed stops can bring heat checking, brake dust, and pedal consistency issues before the pads are worn out. This StopFlex OEM-size carbon-ceramic kit replaces the listed factory rotor package with carbon-ceramic rotors, matched pads, hats, and floating hardware: 390mm front / 360mm rear for GLE63 S and GLE63, or 360mm front / 345mm rear for GLE43. The payoff is lower rotating mass, cleaner wheels, and stronger heat stability while retaining the AMG caliper architecture and factory-style fitment for the exact trims and rotor sizes on this page.
- Built only for 2016-2019 AMG GLE63 S, GLE63, and GLE43 W166/C292 applications with the OEM rotor sizes listed here; it is not a catch-all GLE brake kit.
- GLE63 S and GLE63 fitment uses the 390mm front and 360mm rear rotor reference, matching the large AMG brake package these V8 SUVs were delivered with.
- GLE43 fitment uses the smaller 360mm front and 345mm rear rotor reference, so rotor diameter must be confirmed before ordering if the vehicle has been modified or previously converted.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Mercedes-AMG GLE63 S / GLE63 / GLE43 (W166/C292) |
| Model years | 2016-2019 |
| Front rotor reference | GLE63 S/GLE63: 390mm; GLE43: 360mm |
| Rear rotor reference | GLE63 S/GLE63: 360mm; GLE43: 345mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 20" (for the 390 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 390 mm rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit my 2016-2019 AMG GLE63 S, GLE63, or GLE43?
It is built for W166/C292 AMG GLE63 S, GLE63, and GLE43 models only when the vehicle matches the rotor sizes listed on this page. Confirm 390mm front / 360mm rear on GLE63 S or GLE63, or 360mm front / 345mm rear on GLE43 before ordering.
Does the kit keep the factory calipers, EPB, and brake electronics?
Yes. This is an OEM-size replacement package designed around the factory AMG caliper layout, rear parking-brake configuration, and wheel-speed/ABS systems. The kit changes the rotors, pads, hats, and floating hardware, not the vehicle’s brake control electronics.
Why switch this GLE from iron rotors to carbon-ceramic?
Carbon-ceramic rotors reduce rotating and unsprung mass versus comparable iron discs, generate far less visible dust, and tolerate repeated heat cycles better. On a 5,000-pound AMG SUV, those gains matter most during mountain driving, towing-free high-speed use, and repeated braking from highway speeds.
What should I confirm before ordering?
Confirm the exact trim, body code W166 or C292, current front and rear rotor diameters, factory wheel clearance, and whether the vehicle still has its original AMG brake package. If a previous owner installed different calipers or rotor sizes, this OEM-size kit may not match.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
