2014-2019 Mercedes-AMG GLA45 (X156) Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?

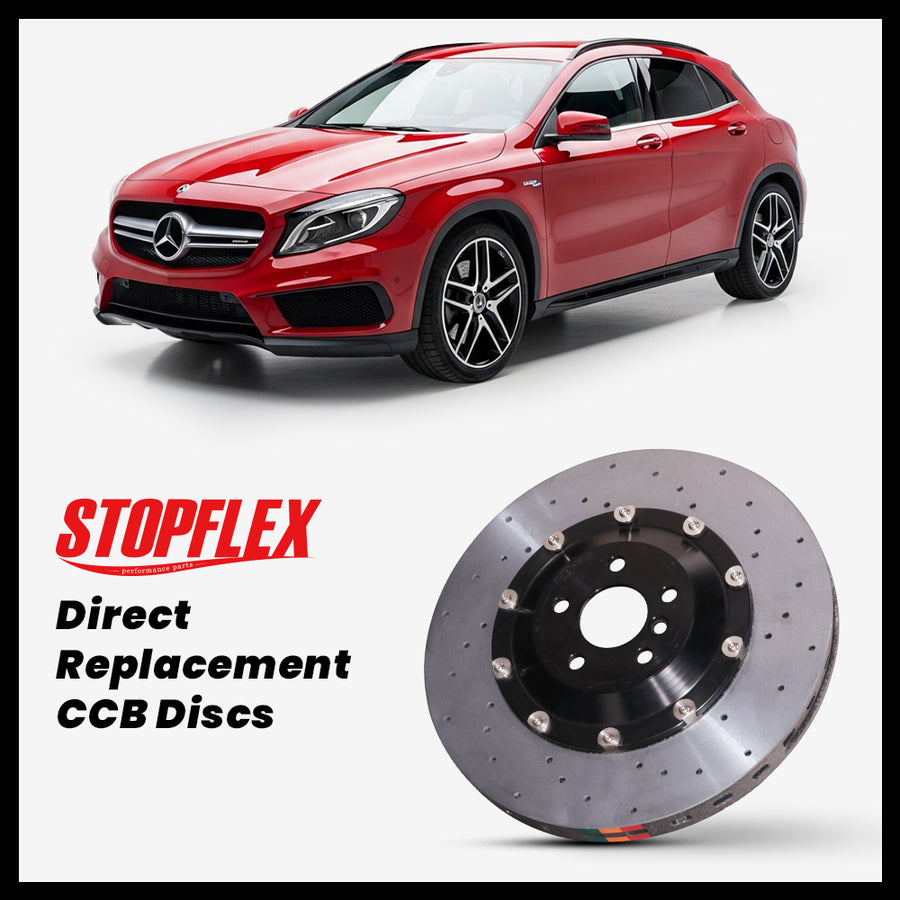

Direct Replacement CCB Discs (Retain Factory Calipers) for the 2014-2019 Mercedes-AMG GLA45 (X156). Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| GLA45 | 350mm | 330mm | 18" |
Keep Your Factory Calipers?
Keep them if the front calipers are fixed 4-piston or more — the rear axle qualifies regardless. Front 1- or 2-piston floating calipers rule out the disc-only route; choose the Full Upgrade kit instead. Every set is machined to the factory rotor specs listed above, and aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood) only need the caliper model, pad shape, and rotor dimensions confirmed before we build.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Share your year, model, trim, wheel size, current rotor dimensions, and caliper type — every order is verified against your VIN-level configuration before it goes to production.
FAQ
The GLA45 came with iron brakes from the factory — will these actually bolt on?
Yes. This is a direct-replacement carbon-ceramic setup engineered for the X156 GLA45's factory calipers. The front 4-piston AMG calipers stay on the car; you swap the 350mm front and 330mm rear iron rotors for our carbon-ceramic discs on matched hats with floating hardware, plus the included pads. No caliper change, no bracket fabrication. Carbon ceramics were never a factory option on this car, so aftermarket is the only way to run them.
How do these behave in winter and cold starts?
Any carbon-ceramic disc bites less than cold iron on the first stops — that's normal physics, not a fault, because the ceramic matrix wants heat to reach full friction. We addressed it two ways: the low-metallic resin-composite pad (steel, copper, aramid fiber, ~0.44 average friction) and the disc's ceramic coating are both tuned for cold engagement, so on the GLA45 the cold-car feel now comes very close to a warm summer stop. Leave a little extra following distance on the coldest first pulls out of the driveway and you'll be fine.
Do these fit any GLA45, or only certain rotor sizes?
This page covers the 2014-2019 GLA45 (X156) running the 350mm front and 330mm rear factory rotor sizes only. Direct replacement is valid here because the front factory calipers are 4-piston. If your car has non-standard rotor diameters or the fronts have been changed, confirm with us before ordering — compatibility is limited to the exact trim and sizes listed.
I'm mostly here to cut brake dust — will these help with that?
Yes, and that's the reason most GLA45 owners land here. The carbon-ceramic discs and matched low-metallic pad shed far less dark iron dust than the factory setup, so your wheels stay cleaner between washes. You also get lower unsprung weight at each corner and better fade resistance, with the pad rated to about 750 °C. Fewer dusty wheels is the everyday payoff; the heat capacity is the bonus for spirited driving.
