2007-2014 Mercedes-AMG CL65 / CL63 (C216) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

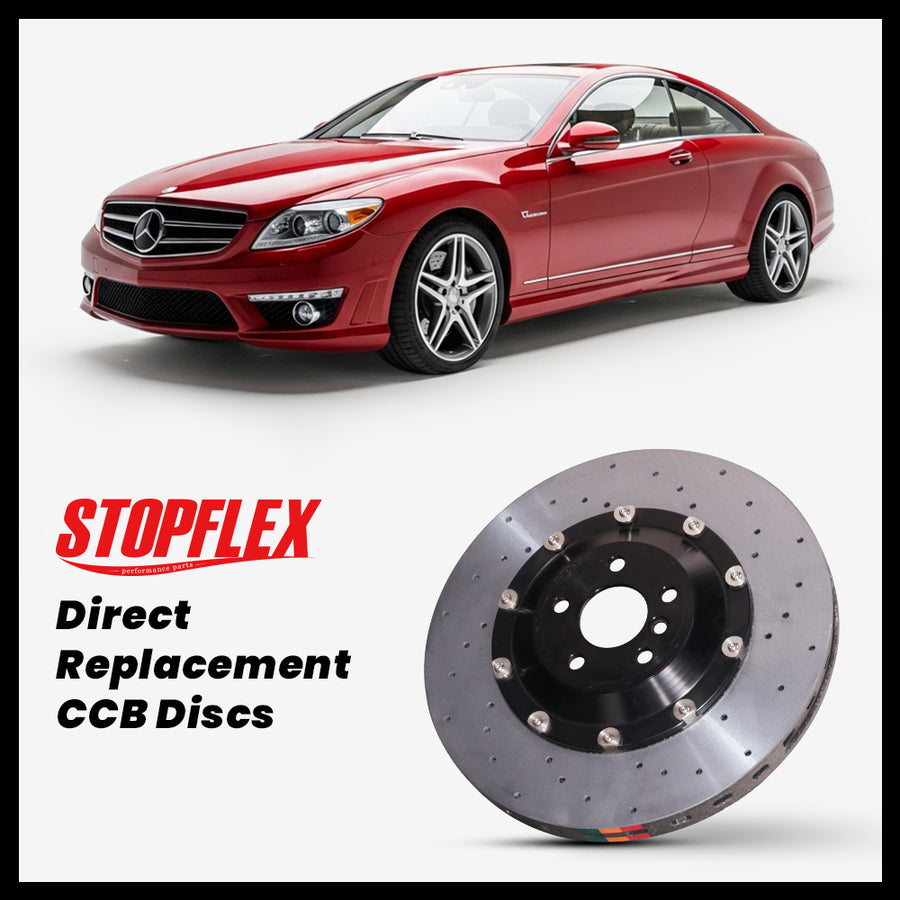

2007-2014 Mercedes-AMG CL65 / CL63 (C216) Carbon Ceramic Brake Kit — OEM-Size Replacement
The C216 CL63 and CL65 AMG put heavy brake load into a 390 mm front and 365 mm rear package, especially during repeated high-speed stops where iron rotors build heat and dust quickly. This StopFlex OEM-size carbon-ceramic replacement kit keeps the factory AMG brake layout while replacing the rotors, pads, hats, and floating hardware with a lower-dust, heat-stable assembly built around the listed CL63/CL65 rotor sizes. It is for owners who want carbon-ceramic fade resistance and reduced unsprung mass without changing the car to a non-OEM brake diameter.
- Built for the C216 Mercedes-AMG CL63 / CL65 brake package using 390 mm front rotors and 365 mm rear rotors only.
- OEM-size replacement layout works with the factory AMG caliper positions instead of requiring a big-brake conversion bracket.
- Carbon-ceramic rotors reduce iron brake dust on the large CL coupe wheels and improve repeat-stop heat behavior on a heavy V8/V12 AMG chassis.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Mercedes-AMG CL65 / CL63 (C216) |
| Model years | 2007-2014 |
| Front rotor reference | CL65/CL63: 390mm |
| Rear rotor reference | CL65/CL63: 365mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 20" (for the 390 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 390 mm rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2007-2014 C216 CL63 or CL65 AMG?
No. This page is limited to C216 CL63 / CL65 applications that use the listed 390 mm front and 365 mm rear rotor package. Confirm your VIN, current rotor diameters, and factory AMG calipers before ordering.
Does the kit keep the factory electronic parking brake?
Yes, the kit is designed as an OEM-size service-brake replacement and does not replace the C216 electronic parking brake actuator, cables, or control module. Proper EPB operation still depends on the condition and adjustment of the vehicle’s original parking-brake components.
Why replace the factory iron brakes with carbon-ceramic on this car?
The CL63 and CL65 are heavy AMG coupes, so repeated highway-speed or track-session braking can push iron rotors into high temperature, pad transfer, dust, and vibration issues. Carbon-ceramic rotors are chosen for better heat stability, lower brake dust, and reduced rotating unsprung weight at the same 390 mm / 365 mm sizes.
What should I verify before ordering?
Verify the car is a C216 CL63 or CL65 AMG, measure or confirm 390 mm front and 365 mm rear rotors, check that the factory AMG calipers are being retained, and confirm your wheels already clear the original 390 mm front brake package.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
