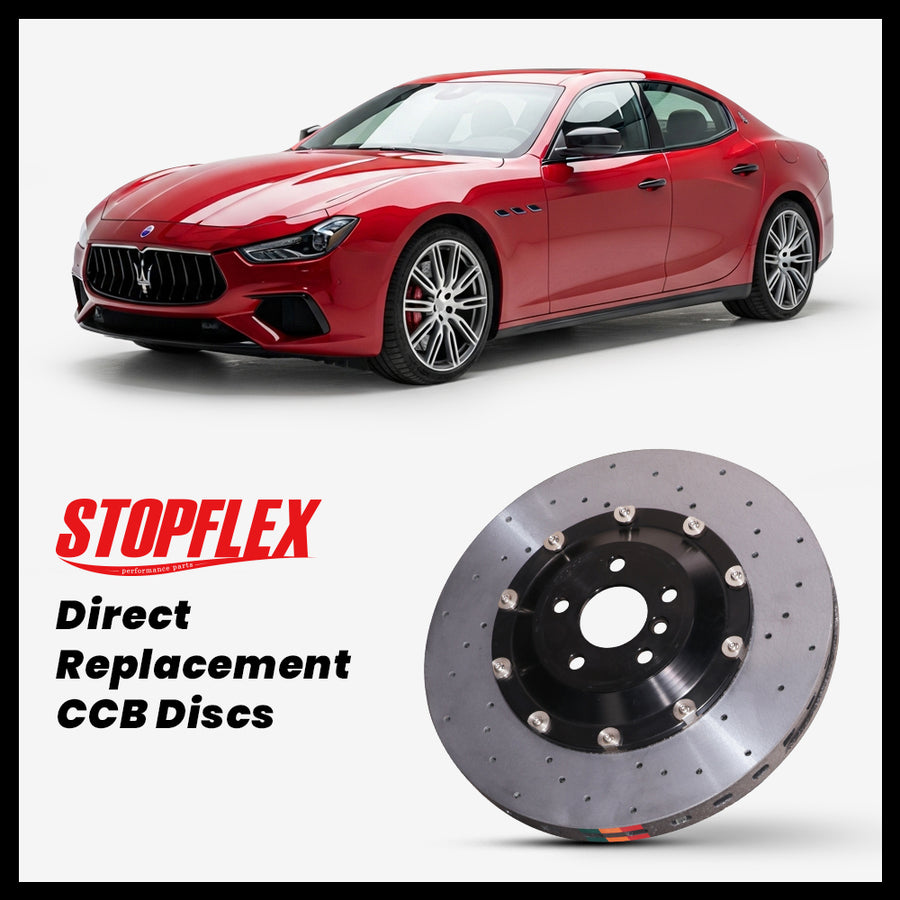

2014-2024 Maserati Ghibli / Trofeo Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2014-2024 Maserati Ghibli / Trofeo Carbon Ceramic Brake Kit — OEM-Size Replacement
This StopFlex OEM-size carbon-ceramic kit is for 2014-2024 Maserati Ghibli applications that match the listed brake package: Trofeo 380 mm front / 345 mm rear, or standard 360 mm front / 345 mm rear. Ghibli owners shop this conversion when the factory iron discs develop heat checking, pad transfer, dust, or steering shake after repeated high-speed stops. The kit keeps the factory rotor envelope and caliper relationship while replacing the wear system with carbon-ceramic rotors, matched pads, hats, and floating hardware for lower rotating mass, cleaner wheels, and better heat stability.
- Two front fitments are supported on this page only: 380 mm Trofeo front rotors and 360 mm standard front rotors; both use the listed 345 mm rear reference size.
- The floating-hat carbon-ceramic rotor assembly targets the Ghibli’s front-end brake heat load without changing the OEM-size brake package the car was built around.
- The kit is supplied as rotors, pads, hats, and floating hardware so the friction pair and rotor mounting system are matched rather than mixing carbon-ceramic discs with iron-rotor pad compounds.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Maserati Ghibli / Trofeo |
| Model years | 2014-2024 |
| Front rotor reference | Trofeo: 380mm; Std: 360mm |
| Rear rotor reference | Trofeo: 345mm; Std: 345mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 19" (for the 380 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 380 mm rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2014-2024 Maserati Ghibli?
No. This page is limited to Ghibli vehicles that match the listed OEM-size brake setup: Trofeo 380 mm front / 345 mm rear or standard 360 mm front / 345 mm rear. Confirm the actual rotor diameters on your car before ordering.
Will the electronic parking brake and rear brake functions remain intact?
The kit is designed around the factory rear brake layout and 345 mm rear rotor reference for the supported Ghibli applications. EPB service mode and calibration still depend on the installer using the correct Maserati-compatible diagnostic procedure during rear brake work.
Why replace the factory iron rotors with carbon-ceramic on a Ghibli?
Carbon-ceramic rotors reduce brake dust, lower rotating and unsprung mass, and hold friction stability better when the car sees repeated highway-speed or track-session stops. The payoff is most noticeable on heavy, high-power Ghibli trims that work the front brakes hard.
What should I confirm before placing the order?
Confirm model year, trim, front rotor diameter, rear rotor diameter, caliper package, wheel clearance, and whether the car is Trofeo or the standard 360 mm front setup. If the car has a different front or rear rotor size, this page is not the correct kit.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
