2024-2026+ Lotus Eletre CCB Big Brake Kit | AP Racing OEM Lotus 10-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

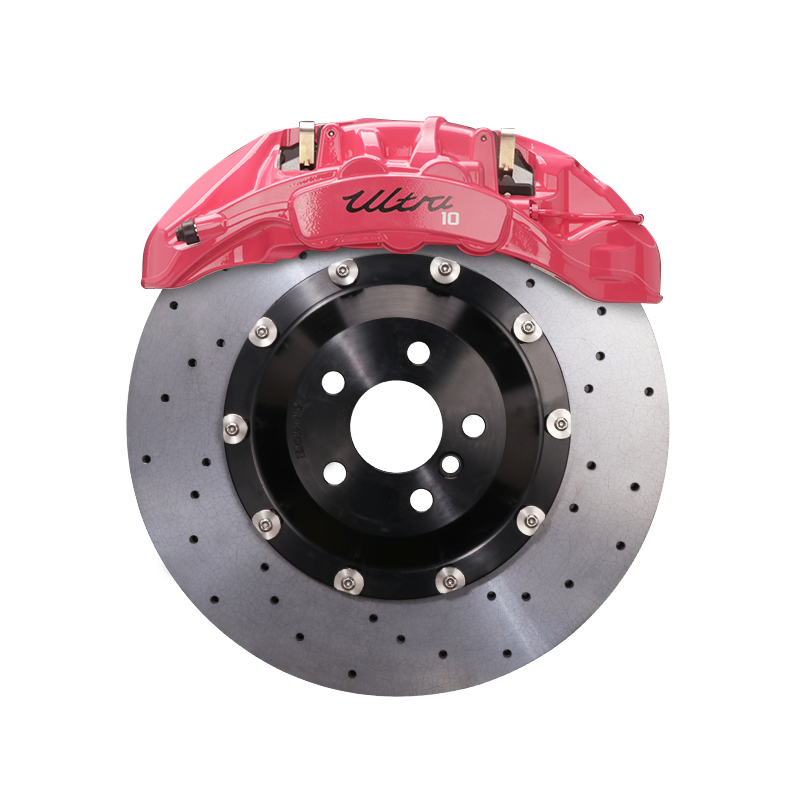

2024-2026+ Lotus Eletre / S / R CCB Big Brake Kit — Genuine AP Racing OEM Lotus 10-Piston Caliper Front + Genuine AP Racing OEM Lotus 4-Piston Caliper Rear Setup
The 2024-2026+ Lotus Eletre / S / R is a heavy, high-output electric SUV, so repeated fast-road braking can put substantial heat into the front axle while open 22- and 23-inch wheels make iron dust obvious. This StopFlex kit pairs a 430 mm front carbon-ceramic rotor with the Genuine AP Racing OEM Lotus 10-Piston Caliper, then matches it with a 410 mm rear carbon-ceramic rotor and Genuine AP Racing OEM Lotus 4-Piston Caliper for heat capacity, fade resistance, lower brake dust, and reduced rotating mass. Each kit is built around the confirmed Eletre trim and wheel package, with rotor hats, brackets, and caliper mounting matched to that specific car.
- 430 mm front and 410 mm rear carbon-ceramic rotors are sized for the Eletre’s EV mass and output, with 22-inch minimum wheel clearance required.
- Front braking is handled by the Genuine AP Racing OEM Lotus 10-Piston Caliper, not a generic aftermarket caliper renamed for the platform.
- Fitment is engineered per confirmed Eletre, Eletre S, or Eletre R trim because wheel ET, upright geometry, and brake package clearance must be verified before production.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Lotus Eletre / S / R |
| Model years | 2024-2026+ |
| Front setup | Genuine AP Racing OEM Lotus 10-Piston Caliper / 430mm |
| Rear setup | Genuine AP Racing OEM Lotus 4-Piston Caliper / 410mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 22" (for the 430 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 430 mm front rotor, so the minimum wheel size is 22". Wheels under 22" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front axle uses the Genuine AP Racing OEM Lotus 10-Piston Caliper, giving the 430 mm rotor a large, stable clamping interface for repeatable pedal response under high deceleration. Its AP Racing provenance matters on the Eletre because the caliper is an OEM-derived Lotus performance component, not a universal six-piston conversion adapted to fit. The caliper, hat offset, bracket geometry, and line package are specified against the buyer’s exact Eletre trim and wheel data.
Rear Caliper (Balance)
The rear axle uses the Genuine AP Racing OEM Lotus 4-Piston Caliper with a 410 mm carbon-ceramic rotor to keep rear brake contribution matched to the upgraded front system. The rear package is engineered to retain the vehicle’s electronic parking brake and Auto Hold functions where the confirmed factory configuration supports them.
Front & rear, engineered together: The 430 mm front and 410 mm rear rotor package is engineered as a front-to-rear system so brake torque, thermal capacity, and pedal response remain balanced on the Eletre’s AWD EV chassis. Matching both axles avoids the bias and stability compromises that can occur when only the front hardware is changed.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine AP Racing OEM Lotus 10-Piston Caliper |
| Front CCB rotors | 430mm |
| Rear calipers | Genuine AP Racing OEM Lotus 4-Piston Caliper |
| Rear CCB rotors | 410mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this kit fit my exact Lotus Eletre, Eletre S, or Eletre R?
Fitment is confirmed before production from your model year, trim, current brake package, wheel size, wheel offset, and spoke profile. The brackets, rotor-hat offsets, and caliper mounting are built for that exact Eletre configuration, not assumed from the shared chassis name.
What wheel size is required for the 430 mm front rotor?
The 430 mm front rotor requires 22-inch or larger wheels. Wheels under 22 inches will not clear the rotor, and even 22- or 23-inch wheels still need a spoke-clearance check against the Genuine AP Racing OEM Lotus 10-Piston Caliper.
Will the electronic parking brake still work?
The Lotus Eletre factory specification includes an electronic parking brake and Auto Hold, and the rear portion of this kit is specified to retain those functions when matched to the confirmed vehicle configuration. EPB compatibility is verified during order review before the rear hardware is finalized.
Why change the Eletre to carbon-ceramic brakes?
Carbon-ceramic rotors reduce brake dust, lower rotating and unsprung mass compared with iron rotors of similar size, and tolerate repeated heat cycles with less fade. On the Eletre, the 430 mm front and 410 mm rear CCB package is aimed at heavy EV braking loads, open-wheel appearance, and consistent high-speed road or track-day use.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
