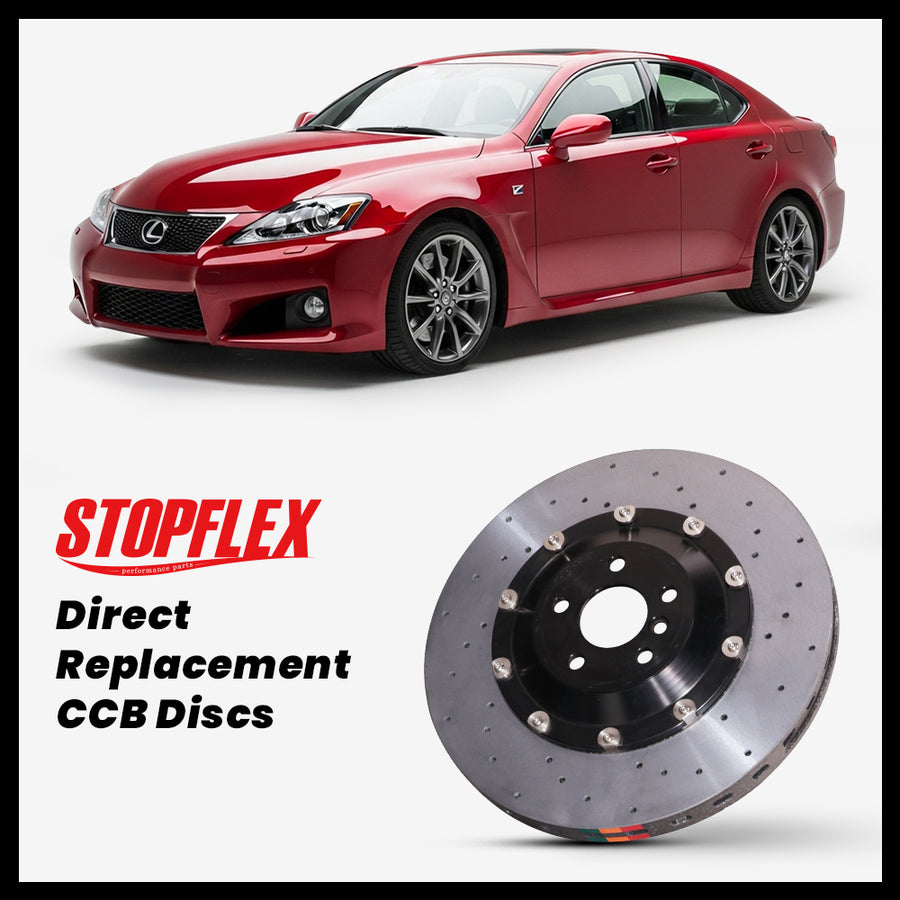

2008-2014 Lexus IS F (XE20) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2008-2014 Lexus IS F (XE20) Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2008-2014 Lexus IS F is hard on its 360 mm front and 345 mm rear Brembo iron rotors when the car is driven in repeated high-speed braking zones. This OEM-size StopFlex carbon-ceramic kit keeps the factory rotor diameters and caliper positions while replacing the wear system with carbon-ceramic rotors, matched pads, hats, and floating hardware for lower rotating mass, reduced brake dust, and better fade resistance than cast iron.
- Built for the XE20 Lexus IS F only, using the factory 360 mm front and 345 mm rear rotor references instead of an IS250, IS350, or F Sport brake size.
- Designed around the IS F Brembo fixed-caliper package, so the kit replaces the rotor, pad, hat, and floating hardware without requiring a caliper relocation bracket.
- Carbon-ceramic friction rings reduce the dust and heat loading that make the IS F’s drilled iron rotors a common replacement item after track days or aggressive mountain use.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Lexus IS F (XE20) |
| Model years | 2008-2014 |
| Front rotor reference | IS F: 360mm |
| Rear rotor reference | IS F: 345mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 19" (for the 360 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 360 mm rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2008-2014 Lexus IS F?
It is intended only for the XE20 Lexus IS F with the OEM 360 mm front and 345 mm rear Brembo brake package. It is not a fitment for IS250, IS350, IS C, or F Sport models unless the car has been converted and measured to match these rotor sizes.
Will my factory parking brake still work?
Yes, the rear hats are specified for the IS F rear brake layout so the factory parking brake function is retained when the kit is installed correctly. Confirm the rear hat specification before ordering if your car has non-original rear hubs or a previous brake conversion.
Do I need different wheels for the carbon-ceramic kit?
The kit keeps the OEM 360 mm front and 345 mm rear rotor envelope, so factory 19-inch IS F wheels are the baseline fitment. Any aftermarket wheel should still be checked for spoke clearance over the IS F Brembo calipers because diameter alone does not guarantee clearance.
Why switch from the OEM iron rotors on an IS F?
Carbon-ceramic rotors reduce rotating and unsprung mass, produce less visible dust on the IS F’s open 19-inch wheels, and handle repeated heat cycles better than iron in track-day use. For street driving, use the supplied pads and bed-in procedure so cold bite, noise, and pedal feel are matched to the carbon-ceramic surface.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
