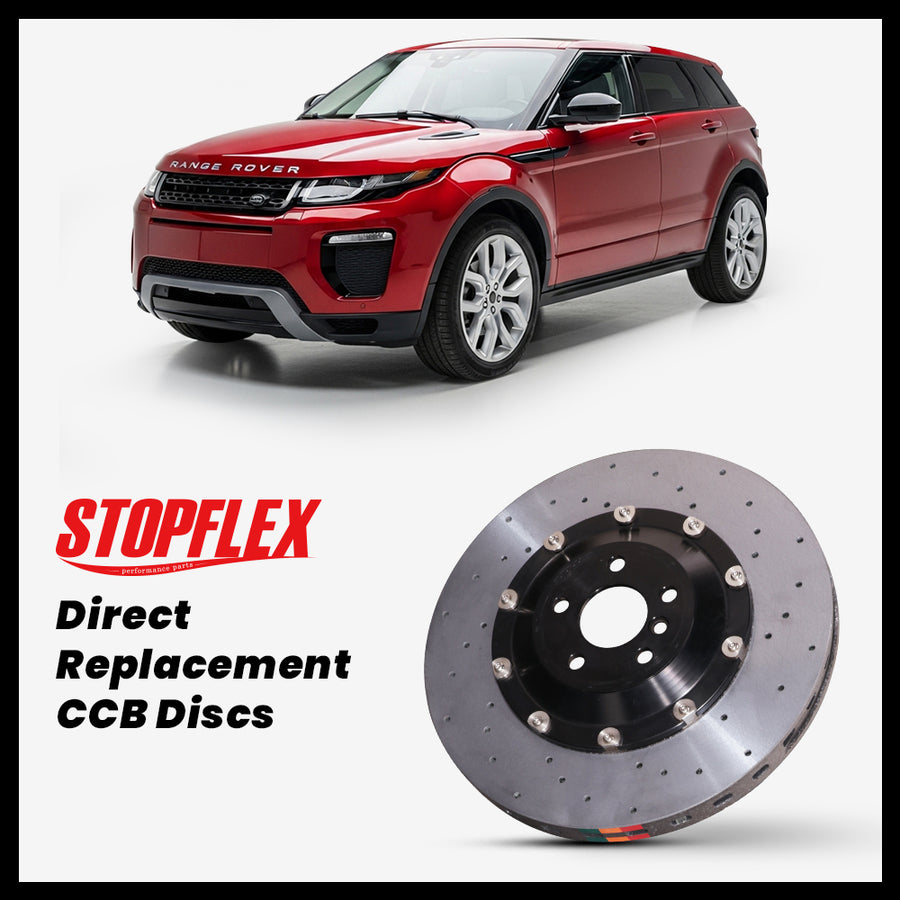

2012-2018 Land Rover Range Rover Evoque (L538) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2012-2018 Land Rover Range Rover Evoque (L538) Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2012-2018 Range Rover Evoque L538 uses more than one OEM front brake diameter, so this StopFlex OEM-replacement kit is built only for the listed 300 mm or 325 mm front rotor setup with 302 mm rear rotors. Carbon-ceramic rotors reduce iron brake dust on Evoque open-spoke wheels, cut rotating unsprung mass, and keep pedal feel more consistent when repeated braking overheats the factory iron discs. The kit includes matched pads, hats, and floating hardware so the rotor assembly fits the original brake layout instead of requiring a caliper conversion.
- Front fitment is limited to L538 Evoque applications using either the 300 mm or 325 mm OEM front rotor; the correct diameter must be confirmed before ordering.
- Rear fitment is for the L538 302 mm rear rotor package, with the kit retaining the factory rear brake architecture rather than converting to a big-brake rear caliper.
- Carbon-ceramic friction surfaces address common Evoque owner complaints about black wheel dust, rotor heat distortion, and pedal inconsistency during repeated highway or mountain-road braking.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Land Rover Range Rover Evoque (L538) |
| Model years | 2012-2018 |
| Front rotor reference | L538: 300mm, 325mm |
| Rear rotor reference | L538: 302mm |
| Page type | OEM-size carbon ceramic replacement |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
Carbon ceramic rotor diameter sets the smallest wheel that clears the caliper. Confirm your wheel diameter and spoke clearance with StopFlex before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2012-2018 Range Rover Evoque L538 trim?
No. L538 Evoques were built with different front rotor diameters. This page applies only to the exact 300 mm or 325 mm front and 302 mm rear rotor configuration listed here; verify your VIN, existing rotor diameter, or OE part number before ordering.
Does the kit keep the factory electronic parking brake and auto-hold functions?
Yes, this is an OEM-size replacement package for the listed L538 brake setup, so the rear brake layout is retained. The kit does not require deleting the factory EPB system when installed on the correct 302 mm rear application.
Why replace the Evoque iron rotors with carbon-ceramic rotors?
Carbon-ceramic rotors produce far less visible iron dust, resist heat-related fade better under repeated braking, and reduce rotating unsprung weight compared with iron discs. For the Evoque, those gains matter most on heavy commuting, mountain descents, and cars with exposed factory wheels.
What should I confirm before ordering?
Confirm the model is a 2012-2018 Range Rover Evoque L538, measure whether the front rotor is 300 mm or 325 mm, confirm the rear rotor is 302 mm, and check wheel clearance if non-factory wheels or spacers are installed.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
