2016-2026+ Jaguar F-PACE (X761) CCB Big Brake Kit | Brembo GT500 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

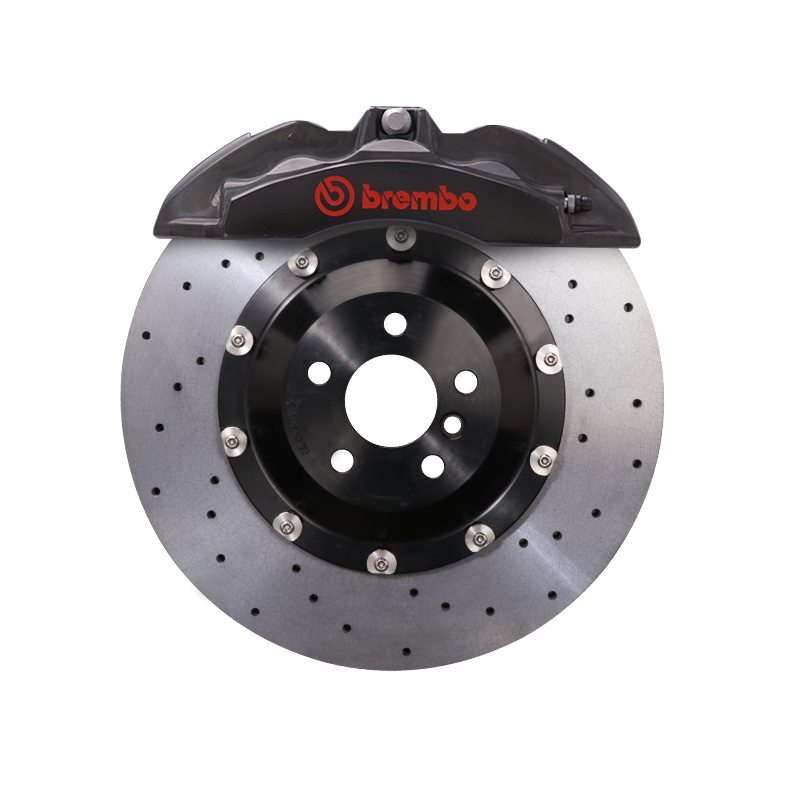

2016-2026+ Jaguar F-PACE / S / SVR (X761) CCB Big Brake Kit — Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper Front + Genuine Brembo GT4 Rear Setup
The 2016-2026+ Jaguar F-PACE X761 is a heavy, high-speed SUV, and S or SVR owners usually shop carbon-ceramic brakes to reduce heat fade, brake dust, and front-end unsprung mass compared with large iron hardware. This StopFlex kit pairs a 380 mm front carbon-ceramic rotor with the Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper, then matches the rear with 355 mm carbon-ceramic rotors and Brembo 4-piston caliper options. Each kit is built around the buyer’s exact F-PACE trim so the brackets, rotor-hat offsets, and caliper position match that car rather than a generic X761 assumption.
- 380 mm front carbon-ceramic rotor with a Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper; minimum wheel diameter is 19 inches, with spoke clearance still verified before build.
- Rear package uses 355 mm carbon-ceramic rotors with V4, GT4, or GTS4 Brembo 4-piston caliper options to keep rear braking matched to the front upgrade.
- F-PACE, F-PACE S, and F-PACE SVR trims can differ in hub, upright, brake, and wheel-clearance details, so StopFlex confirms the exact trim before machining brackets and hats.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Jaguar F-PACE / S / SVR (X761) |
| Model years | 2016-2026+ |
| Front setup | Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper / 380mm |
| Rear setup | Brembo V4 / GT4 / GTS4 4-Piston Caliper Options / 355mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 19" (for the 380 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 380 mm front rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front axle uses the Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper, giving the F-PACE a large fixed-caliper layout with six pistons distributing clamp load across the pad for firmer pedal response and more even pressure on the 380 mm rotor. Its value is that it is a genuine OEM-derived Brembo performance caliper rather than an unproven casting, with the stiffness and serviceability expected from a production high-output application.
Rear Caliper (Balance)
The rear axle uses Brembo V4 / GT4 / GTS4 4-Piston Caliper Options on 355 mm carbon-ceramic rotors: V4 = Genuine Brembo OEM Cadillac CTS-V 4-Piston Caliper, GT4 = Genuine Brembo GT | M4 4-Piston Caliper, and GTS4 = Genuine Brembo GT | S4 4-Piston Caliper. The rear package is selected and engineered to support stable brake bias with the 380 mm 6-piston front system while retaining the F-PACE’s factory electronic parking brake function where applicable.
Front & rear, engineered together: This kit is engineered as a front-and-rear system so piston area, rotor diameter, hat offset, and line routing are matched to the confirmed F-PACE trim. That matters on an SUV because an oversized front-only conversion can shift bias forward, increase ABS intervention, and leave rear thermal capacity behind the front axle.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper |
| Front CCB rotors | 380mm |
| Rear calipers | Brembo V4 / GT4 / GTS4 4-Piston Caliper Options |
| Rear CCB rotors | 355mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
| Rear caliper option mapping | V4 = Genuine Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor GT4 = Genuine Brembo GT | M4 4-Piston Caliper — 355 mm rotor GTS4 = Genuine Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this kit fit my exact F-PACE S or SVR?
Fitment is not treated as a platform-wide X761 bolt-on. StopFlex confirms your model year, trim, factory brake package, hub/upright details, and wheel data before machining the brackets and rotor hats for your specific F-PACE.
What wheel size do I need for the 380 mm front rotor?
The 380 mm front rotor requires at least a 19-inch wheel. Wheel diameter alone is not enough; StopFlex also checks spoke clearance, offset, and barrel shape against the Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper.
Will the electronic parking brake still work?
The F-PACE uses a factory electronic parking brake, so rear fitment is handled around EPB retention rather than deleting a street function. StopFlex confirms the rear configuration during ordering because rear caliper choice and parking-brake integration must match the exact vehicle.
Why switch this F-PACE to carbon-ceramic rotors?
Carbon-ceramic rotors reduce brake dust and unsprung mass compared with iron rotors and provide better thermal stability during repeated high-speed stops. On a heavy F-PACE S or SVR, that directly targets fade, rotor heat, and wheel-cleaning problems without changing the SUV’s basic street use case.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
