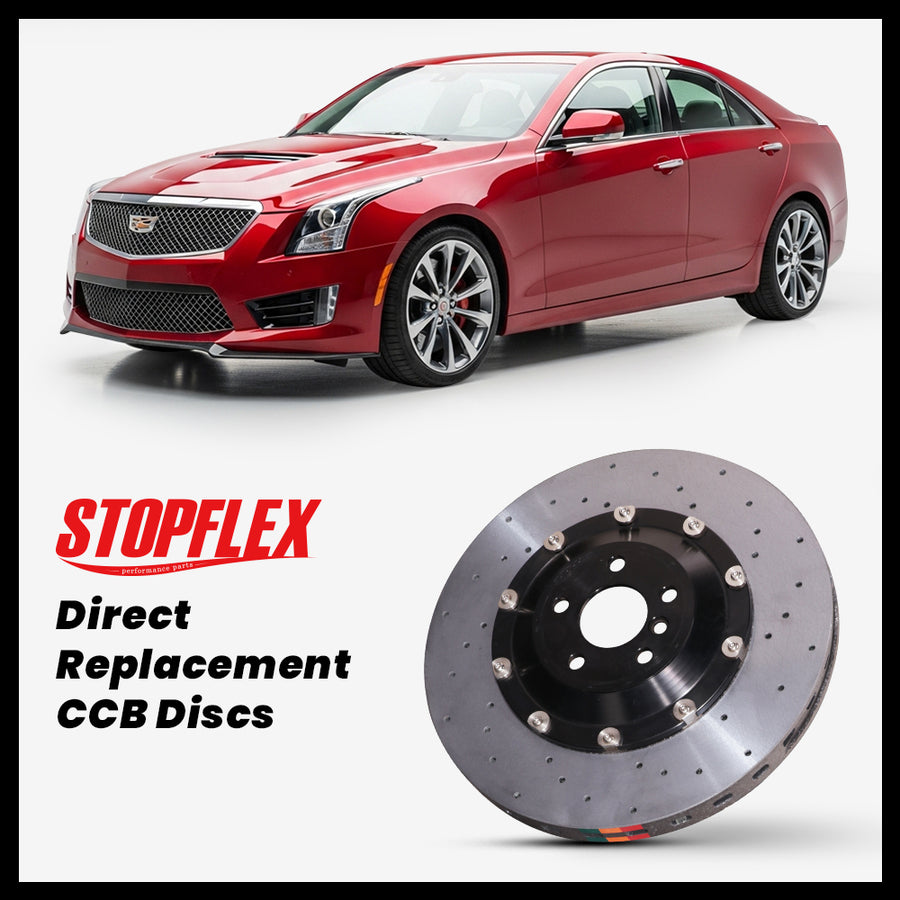

2016-2019 Cadillac ATS-V Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Direct Replacement CCB Discs (Retain Factory Calipers) for the 2016-2019 Cadillac ATS-V. Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| ATS-V | 370mm | 339mm | 19" |
Keep Your Factory Calipers?
The rule is simple: front factory calipers must be 4-piston or more; the rear has no limit. A 1- or 2-piston floating front setup cannot take direct-replacement discs — that car needs the Full Upgrade kit with calipers. We build to the factory rotor specs above. Aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood) work too — send the caliper model, pad shape, and rotor size for confirmation first.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Winter & Cold-Weather Braking
Winter question, straight answer: untuned ceramic discs bite less when cold. StopFlex optimized the pad compound and the rotor's ceramic coating for cold operation, so cold-start braking in winter feels very close to warm-weather braking. Extra following distance on freezing first stops is still smart; severe-winter daily cars should run Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Before ordering, tell us the exact vehicle, current rotor sizes, and caliper type. Nothing goes to production until the build is confirmed against your VIN-level configuration.
FAQ
Will this fit my ATS-V with the factory carbon ceramic package?
Yes, if your car is a 2016-2019 ATS-V running the factory 370mm front and 339mm rear rotor sizes. This is a direct replacement that reuses your factory ATS-V front calipers, which are 6-piston Brembo units and well above the 4-piston minimum required for this setup. Confirm your front rotor measures 370mm before ordering, since compatibility is tied to that exact size.
How do these behave in winter cold starts compared to iron rotors?
An untuned carbon-ceramic disc bites less than cold iron on the first stops of a freezing morning. That is physics, not a defect. We addressed it two ways: the low-metallic resin-composite pad (steel, copper, aramid fiber, average friction near 0.44) and the disc's ceramic coating are both tuned for cold engagement. On the ATS-V, winter cold-car feel now lands very close to summer feel. Still leave a little extra following distance on your first couple of cold stops until the front rotors reach working temperature.
Why is this so much less than a full OEM ATS-V carbon ceramic rotor replacement?
Factory CCB rotors on V-series Cadillacs run into thousands of dollars each because you buy the entire assembly through the dealer. This kit gives you carbon-ceramic rotors, pads, hats, and floating hardware while keeping your existing ATS-V front Brembo calipers, so you are not paying to replace parts that are still good. Same 370mm front and 339mm rear geometry, no caliper swap, no bracket changes.
Do I need to change my wheels or worry about the electronic parking brake?
No wheel change is needed if your ATS-V is already on its factory wheels, since this kit matches the 370mm front and 339mm rear rotor dimensions the car was built around. The rear setup retains the factory ATS-V parking brake function, so the electronic parking brake continues to work with no added hardware.
