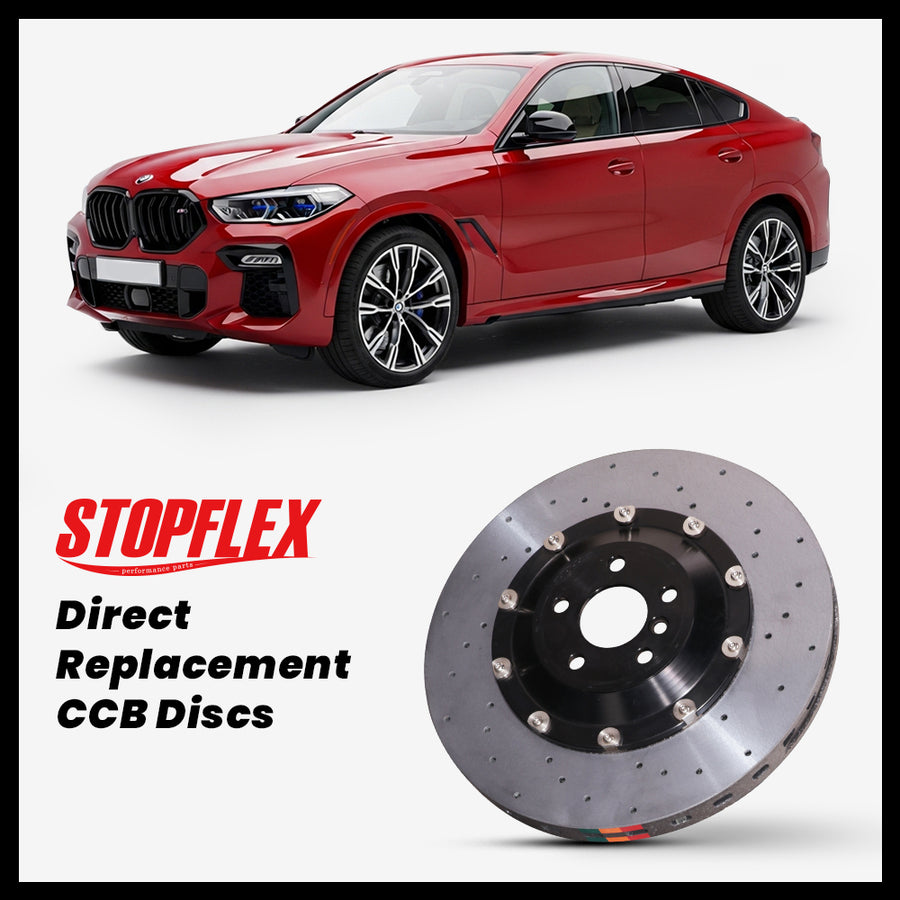

2020-2026+ BMW X6 M50i / M50d / M60i (G06) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2020-2026+ BMW X6 M50i / M50d / M60i (G06) Carbon Ceramic Brake Kit — OEM-Size Replacement
The G06 BMW X6 M50i, M50d, and M60i use a large OEM brake package—395 mm front rotors and 370 mm rear rotors—but repeated high-speed stops can still load the iron discs with heat, dust, and vibration. This StopFlex OEM-size carbon-ceramic replacement kit keeps the factory rotor dimensions and caliper architecture while reducing rotating mass, lowering brake dust, and improving heat stability under repeated braking. The kit includes carbon-ceramic rotors, matched pads, hats, and floating hardware for the listed G06 trim family only.
- Built around the G06 X6 M50i / M50d / M60i rotor references: 395 mm front and 370 mm rear, not the smaller base-brake configurations.
- OEM-size layout retains the factory caliper positions and rear electronic parking brake function when installed on the listed trim and rotor-size combination.
- Carbon-ceramic discs reduce dust and rotating mass versus the factory iron setup, a direct benefit on heavy xDrive X6 models with large open wheels.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | BMW X6 M50i / M50d / M60i (G06) |
| Model years | 2020-2026+ |
| Front rotor reference | X6 M50i/M50d/M60i: 395mm |
| Rear rotor reference | X6 M50i/M50d/M60i: 370mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 20" (for the 395 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 395 mm rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2020-2026+ BMW X6 G06?
No. This page is only for G06 X6 M50i, M50d, and M60i models using the 395 mm front and 370 mm rear brake setup. Confirm your trim, rotor diameter, and brake option before ordering.
Does the rear electronic parking brake still work?
Yes. This is an OEM-size replacement kit that keeps the rear brake architecture used on the G06 X6 M50i / M50d / M60i, including the electronic parking brake interface when the car matches the listed 370 mm rear setup.
Why switch from the factory iron rotors on this X6?
The G06 X6 M50i and M60i are heavy, high-torque SUVs, so the 395 mm front iron rotors see high thermal load during mountain driving, towing-style descents, and repeated highway braking. Carbon-ceramic rotors run with lower dust, lower rotating mass, and better thermal stability than iron discs.
What should I verify before placing the order?
Check that the vehicle is a G06 X6 M50i, M50d, or M60i, verify 395 mm front and 370 mm rear rotors, and confirm wheel clearance over the factory-size brake package. If the car has non-original calipers, aftermarket wheels, or a previous brake conversion, confirm fitment before purchase.
