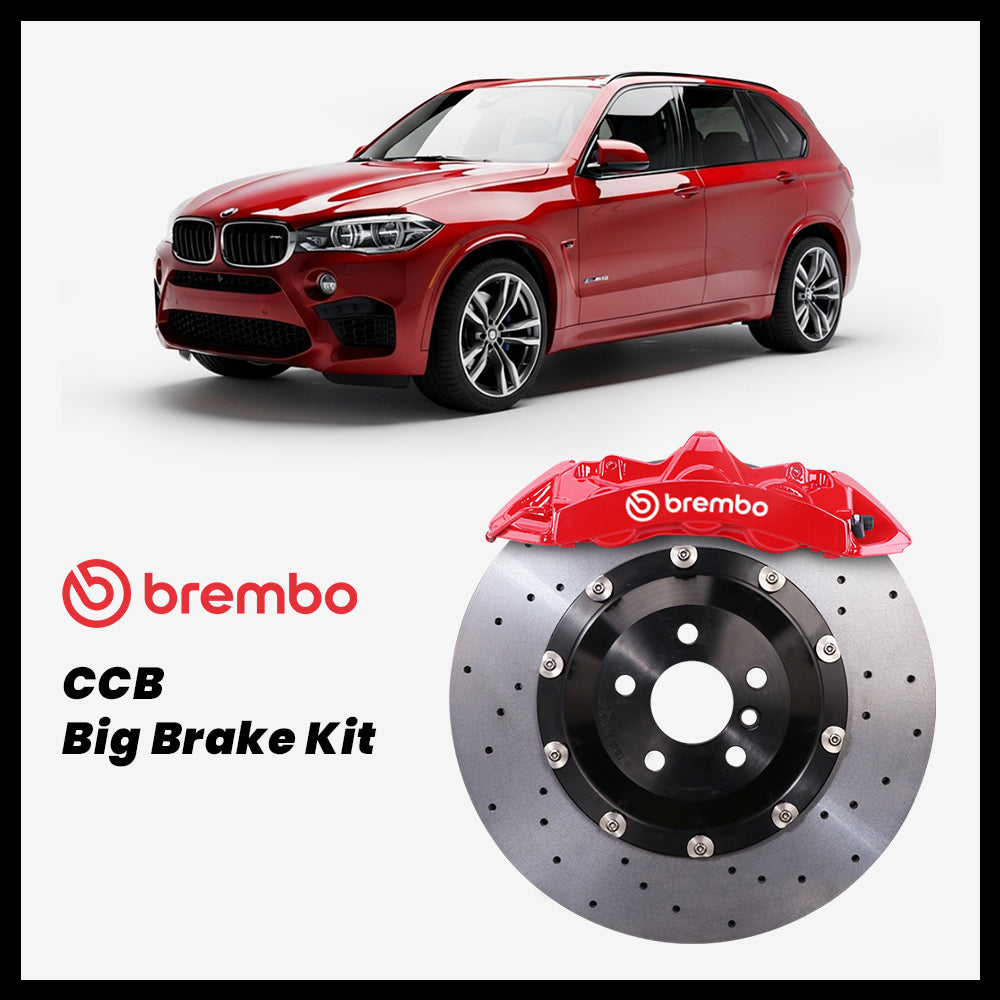

2014-2018 BMW X5 / X5 M (F15/F85) Carbon Ceramic Big Brake Kit — Brembo GT6
Official Warranty: We offer a 1-year free replacement for quality defects or coating issues under normal (non-track) use. Please note that provided specs apply strictly to brake hats and brackets; wheel fitment data is for general reference only. Wheel clearance issues are excluded from warranty coverage and data accuracy claims. If additional clearance is needed, wheel spacers must be added at the customer's discretion.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2014-2018 BMW X5 / X5 M (F15/F85). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2014-2018 | Brembo V6 / GT6 / GTS6 6-Piston Caliper Options / 380mm | Brembo V4 / GT4 / GTS4 4-Piston Caliper Options / 355mm | 19" |
Fitment here is bespoke: brackets, hat offsets, and caliper mounting are engineered for your exact model and trim rather than copied across the platform. Two trims with the same chassis code can still differ in knuckles, hub geometry, and wheel ET clearance — which is why we confirm your trim first, then build the matched system of calipers, pads, rotor hats, floating hardware, and lines for it. Modified knuckles, uprights, or non-factory suspension points require review before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers |
Option 1: Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor OE / Part No.: L 172-2521 · R 172-2522 Option 2: Brembo GT | M6 6-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S6 6-Piston Caliper — 380 mm rotor |
| Rear calipers |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor OE / Part No.: L 172-2523 · R 172-2524 Option 2: Brembo GT | M4 4-Piston Caliper — 355 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
| Rotor construction | Short-Fiber Street Spec (lower price, street-only) or Long-Fiber Street / Track-Day / Motorsport Spec — chosen at order confirmation |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Every StopFlex kit order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors — the brake package matches your exact build, not a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A like-size carbon-ceramic rotor can be materially lighter than an iron disc; the exact saving depends on rotor dimensions. Lower rotating, unsprung mass can reduce the load the suspension has to control.
High-Temperature Stability
The carbon-silicon-carbide friction material is selected for high-temperature stability and fade resistance. Overall pedal feel still depends on pad condition, fluid, caliper stiffness, cooling and operating temperature.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, carbon-ceramic friction surfaces are designed for low wear. Actual service life depends on mileage, contamination, pad choice, heat cycles and driving use.
Low Visible Dust
Matched StopFlex pads are selected for low visible dust on the ceramic friction surface. Actual wheel dust still varies with pad choice, traffic, temperature, bedding and driving intensity.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Short-Fiber or Long-Fiber — Your Call
Every StopFlex disc is true carbon-ceramic. Short-Fiber Street Spec uses a simpler chopped-fiber process for a lower price and street-only duty; the Long-Fiber line uses continuous carbon strands that carry load across the whole rotor for higher strength and thermal durability — the pick for track and race heat.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
Winter & Cold-Weather Braking
Cold-weather trade-off: an untuned carbon-ceramic disc can have less initial bite than cold iron. StopFlex specifies a matched pad compound and ceramic coating tuned to reduce that cold-start gap, but the coldest first stops still deserve extra following distance. Severe-winter daily drivers should choose a Street Spec.
Caliper Overview
Front Caliper
Front fitment uses Brembo V6 / GT6 / GTS6 6-Piston Caliper Options with a 380 mm rotor. Select from the mapped V6, GT6, or GTS6 configuration after exact model and trim confirmation.
Rear Caliper
Rear fitment uses Brembo V4 / GT4 / GTS4 4-Piston Caliper Options with a 355 mm rotor. The rear caliper selection is confirmed as part of the bespoke full-kit configuration.
Choose Your Rotor: Short-Fiber Street to Long-Fiber Motorsport
Four specs, one rule of thumb: all are real carbon-ceramic discs. Short-Fiber Street Spec is the lower-cost route for street-only driving. The three Long-Fiber specs use continuous carbon strands for higher strength and heat durability, and are the only choice for track-day or motorsport use.
Short-Fiber Street Spec
Chopped short-fiber carbon-ceramic body, ceramic coating, cross-drilled face.
Choose this for street-only use when purchase price matters most. It keeps the carbon-ceramic friction surface and coated finish, but it is not specified for track sessions.
Long-Fiber Street Spec
Continuous long-fiber body, ceramic coating, cross-drilled face, large cooling channels.
Choose this for daily and fast-road use when you want the long-fiber construction without moving to a track-focused face and cooling specification.
Long-Fiber Track-Day Spec
Continuous long-fiber body, ceramic coating, blank face, honeycomb cooling channels.
Choose this for repeated fast-road or track-day braking where thermal duty matters more than the drilled street appearance. High-temperature fluid and appropriate cooling still matter.
Long-Fiber Motorsport Spec
Continuous long-fiber body, uncoated blank face, honeycomb cooling channels.
Choose this for competition-focused use with the corresponding pad, fluid, cooling and warm-up strategy. It is not the default recommendation for a street-driven car.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Share your year, model, trim, wheel size, current rotor dimensions, and caliper type. The build is checked against those supplied details before production; VIN/build information may be requested for ambiguous configurations.
FAQ
Does this kit fit every 2014-2018 BMW X5 or X5 M F15/F85?
No. This full upgrade is limited to the 2014-2018 BMW X5 / X5 M F15/F85 listing and is built after confirmation of the exact model and trim. It uses a 380 mm front rotor with Brembo V6, GT6, or GTS6 six-piston options, plus a 355 mm rear rotor with V4, GT4, or GTS4 four-piston options. Bracket and hat geometry are not assumed across shared-platform trims.
Will my wheels clear the 380 mm front brake setup?
The supplied fitment chart sets a 19-inch minimum wheel for this 380 mm front configuration. Diameter alone is not enough: spoke profile and wheel offset must also be physically confirmed. Provide the exact wheel specification or clearance template information before ordering, particularly with aftermarket wheels.
Does the electronic parking brake affect the rear-kit order?
The F15/F85 family uses an electronic parking brake. Because this is a bespoke full upgrade, confirm the exact model, trim, and rear parking-brake arrangement before finalizing the order. Parking-brake compatibility is not assumed from another X5 or X5 M configuration simply because it shares the F15/F85 platform.
What should I expect in cold or winter driving?
An untuned cold carbon-ceramic disc can have less initial bite than cold iron. This kit uses a matched pad compound and disc coating intended to reduce that cold-start gap, but the coldest first stops still deserve extra margin. For street use, choose the rotor specification around actual driving duty rather than assuming track-oriented hardware is the best winter choice.
