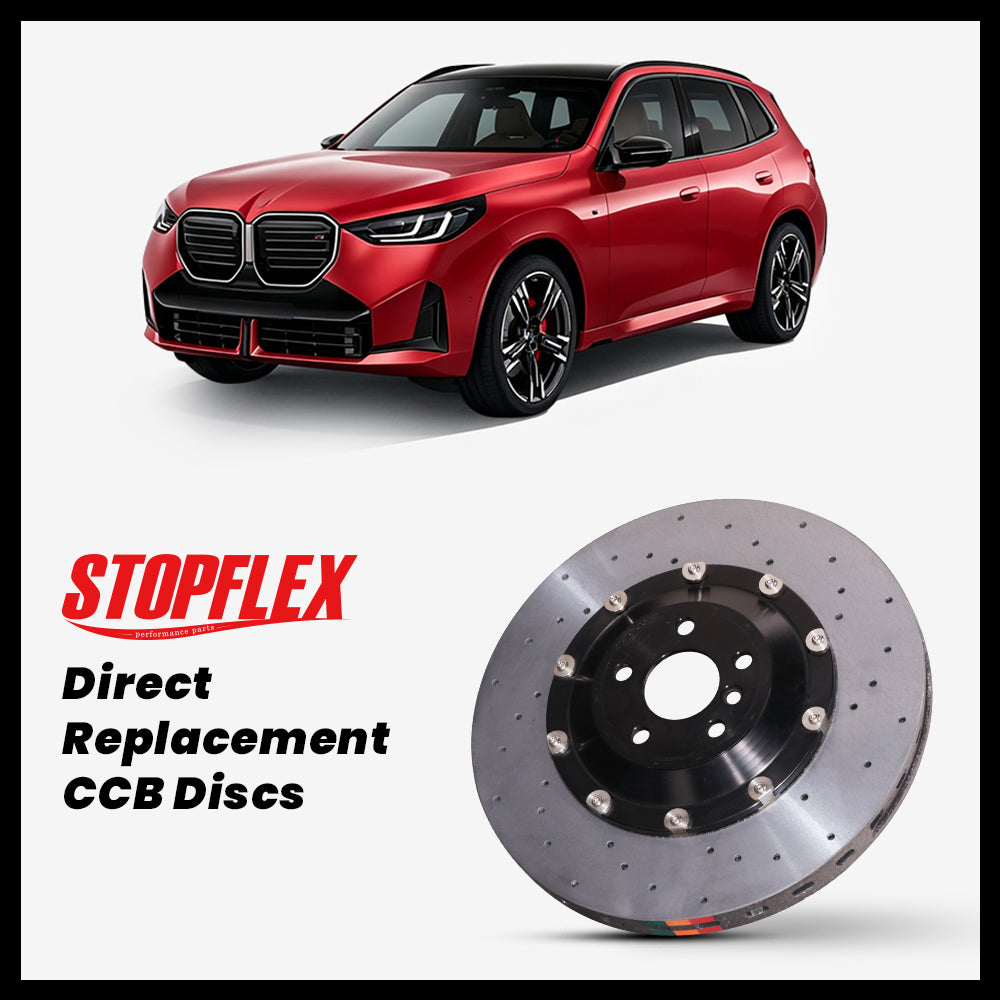

2025-2026+ BMW X3 M50 (G45) Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Direct Replacement CCB Discs (Retain Factory Calipers) for the 2025-2026+ BMW X3 M50 (G45). Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| X3 M50 | 374mm, 395mm | 345mm | 20" |
Keep Your Factory Calipers?
The rule is simple: front factory calipers must be 4-piston or more; the rear has no limit. A 1- or 2-piston floating front setup cannot take direct-replacement discs — that car needs the Full Upgrade kit with calipers. We build to the factory rotor specs above. Aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood) work too — send the caliper model, pad shape, and rotor size for confirmation first.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Before ordering, tell us the exact vehicle, current rotor sizes, and caliper type. Nothing goes to production until the build is confirmed against your VIN-level configuration.
FAQ
Will these fit my X3 M50 without changing the calipers?
Yes. This is a Direct Replacement kit for the G45 X3 M50. The M50's front calipers are 4-piston fixed units, which meet the minimum requirement to run carbon-ceramic rotors on the factory hardware. You reuse your existing calipers and bolt on carbon-ceramic rotors, hats, pads, and floating hardware. Fitment is valid for the front 374mm or 395mm rotor sizes and the 345mm rear listed for this trim only. Confirm your exact front rotor diameter before ordering, since the M50 shipped in more than one front size.
How do these behave in winter and on cold first stops?
Any carbon-ceramic disc bites a little less than cold iron on the very first stops. That's physics, not a fault. We tune around it two ways: the pad is a carbon-ceramic-specific low-metallic compound with steel, copper, and aramid fiber that stays active at low temperature, and the rotor's ceramic coating is optimized for cold engagement. The result is a cold-car pedal that feels very close to summer feel in your X3 M50. On the coldest first pull-out of the day, leave a bit of extra following distance for the first one or two stops, then it's normal.
Do these clear the factory X3 M50 wheels and keep the stock brake balance?
The kit is engineered to fit behind the factory G45 X3 M50 wheels. If you run aftermarket wheels, check spoke and barrel clearance against the caliper and rotor package first. Because you keep the factory front 4-piston calipers and the OEM 345mm rear setup, front-to-rear balance stays as BMW intended. Piston area doesn't change, so pedal ratio and ABS behavior track the stock system.
Does this work with the electronic parking brake?
Yes. The G45 X3 M50 uses an electronic parking brake acting on the 345mm rear rotors. The rear carbon-ceramic rotor and hat assembly in this kit is dimensioned to work with the factory EPB actuation, so parking-brake function is retained without recalibration.
