2018-2024 BMW X3 M40i / M40d (G01) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

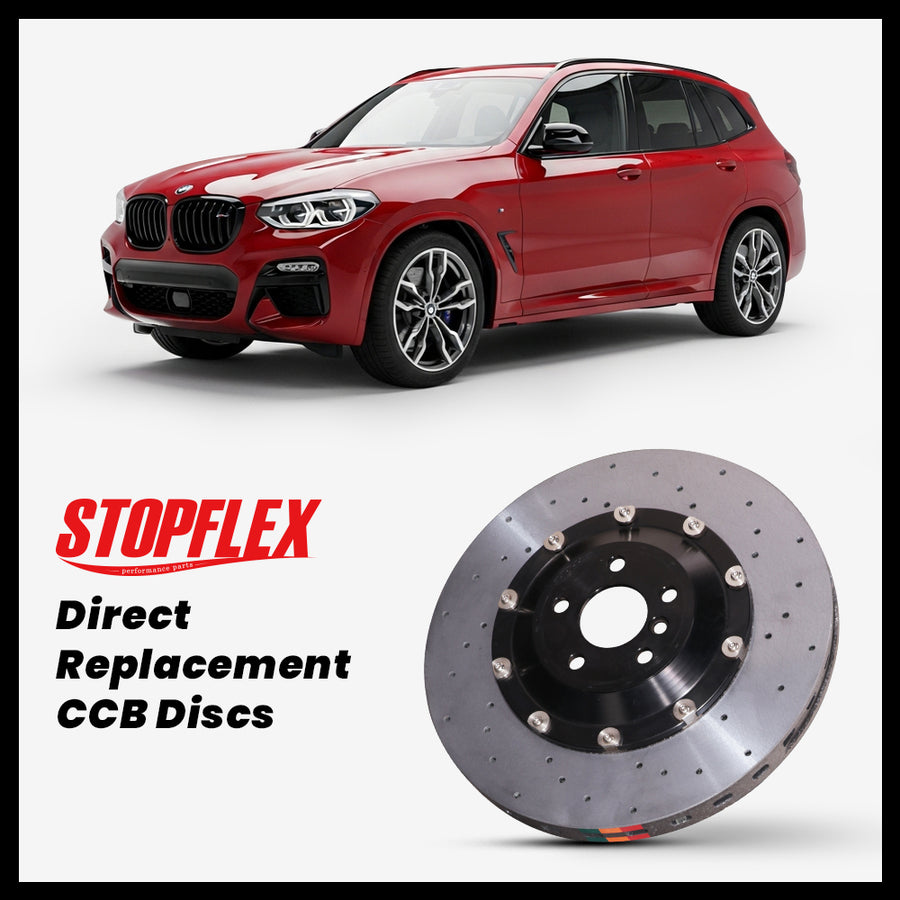

2018-2024 BMW X3 M40i / M40d (G01) Carbon Ceramic Brake Kit — OEM-Size Replacement
The G01 BMW X3 M40i and M40d put real heat into the front axle because this trim family uses large M Sport brake hardware, with listed front rotor references of 348 mm or 374 mm and a 345 mm rear reference. This StopFlex OEM-size carbon-ceramic replacement kit keeps the factory brake package layout while replacing the iron wear surfaces with carbon-ceramic rotors, matched pads, hats, and floating hardware for lower brake dust, reduced rotating mass, and stronger heat stability under repeated high-speed stops.
- Built only for 2018-2024 BMW X3 M40i / M40d G01 fitments using the listed 348 mm or 374 mm front rotor reference and 345 mm rear rotor reference.
- OEM-size carbon-ceramic rotors retain the factory caliper and parking-brake architecture instead of converting the G01 to an oversized big-brake layout.
- Floating hats and hardware are included so the carbon-ceramic friction rings can manage heat expansion separately from the BMW hub interface.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | BMW X3 M40i / M40d (G01) |
| Model years | 2018-2024 |
| Front rotor reference | X3 M40i/M40d: 348mm, 374mm |
| Rear rotor reference | X3 M40i/M40d: 345mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 18" (for the 348 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 348 mm rotor, so the minimum wheel size is 18". Wheels under 18" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2018-2024 BMW X3 G01?
No. This page is limited to the X3 M40i and M40d G01 trim family with the exact listed rotor sizes: 348 mm or 374 mm front reference and 345 mm rear reference. Confirm your VIN, brake option, and measured rotor diameter before ordering.
Does the kit keep the factory electronic parking brake and Auto Hold?
Yes, the kit is designed as an OEM-size replacement for the listed G01 M40i/M40d brake setup, so the rear brake package retains the factory EPB and Auto Hold function when installed on the correct 345 mm rear configuration.
Why switch this X3 M40i or M40d from iron rotors to carbon-ceramic?
Carbon-ceramic rotors reduce brake dust on open BMW wheels, lower rotating and unsprung mass, and maintain friction stability when repeated braking pushes iron rotors into high-temperature operation.
What should I confirm before placing the order?
Confirm the vehicle is a 2018-2024 G01 X3 M40i or M40d, verify front rotor diameter against the 348 mm or 374 mm reference for this page, verify the 345 mm rear rotor, and check wheel clearance against the factory brake package.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
