2017-2023 BMW M550i / M550d (G30/G31) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

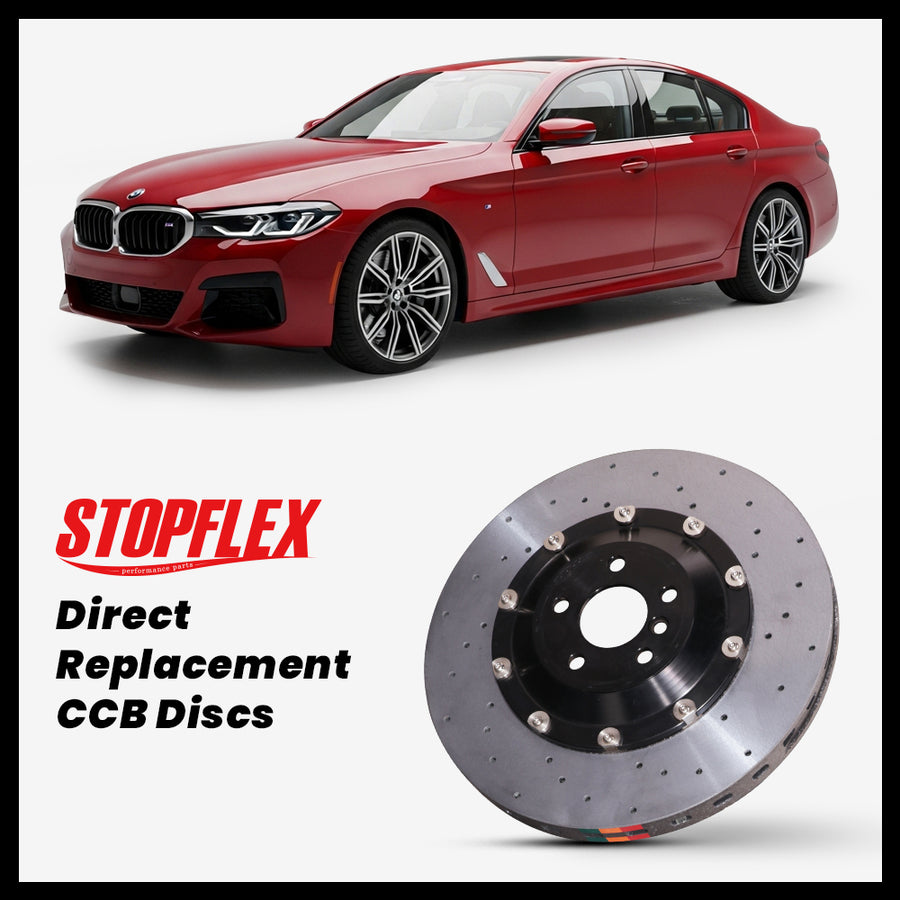

2017-2023 BMW M550i / M550d (G30/G31) Carbon Ceramic Brake Kit — OEM-Size Replacement
The G30/G31 M550i and M550d are heavy, fast 5 Series variants that can overwork the factory iron rotor package during repeated high-speed stops, especially on 374 mm or 395 mm front setups. This StopFlex OEM-size carbon-ceramic kit replaces the listed 374/345 mm or 395/370 mm rotor package with carbon-ceramic rotors, matched pads, hats, and floating hardware to reduce heat fade, brake dust, and rotating mass without changing the car’s brake architecture.
- Built only for 2017-2023 BMW M550i/M550d G30 sedan and G31 touring applications using the listed OEM-size 374 mm or 395 mm front rotors and 345 mm or 370 mm rear rotors.
- Carbon-ceramic friction rings reduce unsprung and rotating mass at each corner compared with same-size iron discs, which matters on the xDrive M550i/M550d front axle under braking and turn-in.
- The kit includes rotors, pads, hats, and floating hardware, so the conversion is configured around the factory caliper positions instead of requiring a big-brake relocation package.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | BMW M550i / M550d (G30/G31) |
| Model years | 2017-2023 |
| Front rotor reference | M550i/M550d: 374mm, 395mm |
| Rear rotor reference | M550i/M550d: 345mm, 370mm |
| Page type | OEM-size carbon ceramic replacement |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
Carbon ceramic rotor diameter sets the smallest wheel that clears the caliper. Confirm your wheel diameter and spoke clearance with StopFlex before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2017-2023 BMW M550i or M550d?
No. This page is limited to G30/G31 M550i and M550d cars with the exact rotor sizes listed: 374/345 mm or 395/370 mm. Confirm the front and rear rotor diameters, model year, body style, and VIN before ordering.
Will my electronic parking brake and Auto Hold still work?
Yes, the kit is designed as an OEM-size replacement for the listed rear brake package, so the factory rear parking-brake and Auto Hold functions are retained when the car has the matching 345 mm or 370 mm rear setup.
Why switch from the factory iron brakes on an M550i or M550d?
The main reasons are lower brake dust, better resistance to heat-related fade during repeated stops, and reduced rotating mass. The benefit is most noticeable on tuned cars, mountain-road use, high-speed highway braking, or track-day sessions where the heavy G30/G31 chassis loads the front brakes.
What should I confirm before placing the order?
Confirm whether your car uses the 374 mm or 395 mm front rotor package, whether the rear is 345 mm or 370 mm, the wheel size and spoke clearance, and whether the car is a G30 sedan or G31 touring M550i/M550d.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
