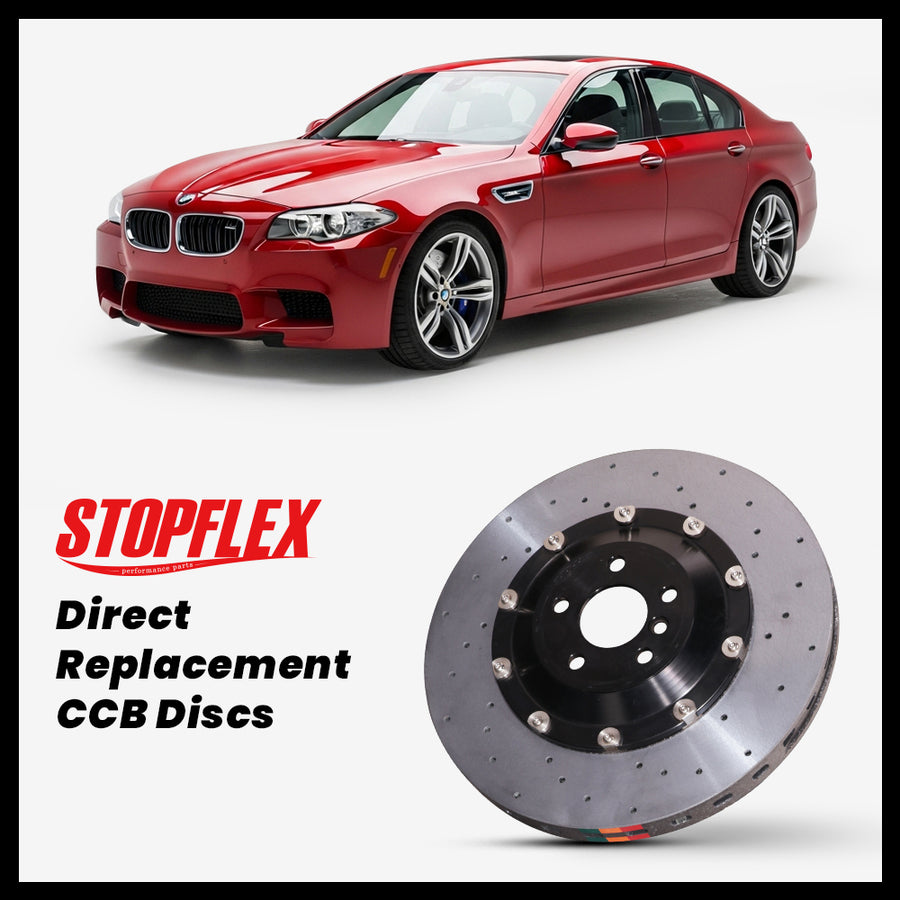

2012-2016 BMW M5 (F10) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2012-2016 BMW M5 (F10) Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2012-2016 BMW M5 (F10) is hard on brakes because its 4.4L twin-turbo S63 sedan weight and speed load the factory 400mm front and 396mm rear package quickly in repeated high-speed stops. This StopFlex OEM-size carbon-ceramic replacement kit is built around the F10 M5 fitment envelope, including 400mm iron-size front applications, 410mm CCB front applications, and 396mm rear rotor reference, with matched pads, hats, and floating hardware. The result is lower rotating mass, reduced brake dust on open M wheels, and better high-temperature consistency without changing the car’s OE brake architecture.
- Fits only the listed F10 M5 brake configurations: 400mm front, 410mm front CCB, and 396mm rear rotor references; verify the rotor size on the car before ordering.
- Designed for the F10 M5’s large front fixed-caliper brake package and rear electronic parking brake configuration when matched to the correct listed rotor size.
- Carbon-ceramic discs reduce unsprung and rotating weight compared with iron rotors, which matters on the F10 M5 because the car combines high curb weight with repeated high-speed braking loads.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | BMW M5 (F10) |
| Model years | 2012-2016 |
| Front rotor reference | M5: 400mm, 410mm (CCB) |
| Rear rotor reference | M5: 396mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 20" (for the 400 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 400 mm rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2012-2016 BMW M5 F10?
No. Compatibility is limited to the exact F10 M5 trims and rotor sizes listed on this page: 400mm front, 410mm front CCB, and 396mm rear reference sizes. Confirm your current rotor diameter, caliper package, and wheel clearance before ordering.
Does the rear electronic parking brake still work?
Yes, when the kit is ordered for the correct F10 M5 rear brake configuration. The replacement rear assembly is intended to retain the factory rear parking-brake and auto-hold functions rather than converting the car to a race-only rear brake setup.
Why replace the factory iron brakes with carbon ceramic on an F10 M5?
F10 M5 owners usually shop this conversion to reduce brake dust, lower rotating mass, and improve consistency during repeated high-speed stops. The benefit is most noticeable on heavy street cars that see mountain driving, fast highway use, or occasional track sessions.
What should I confirm before placing the order?
Confirm model year, F10 M5 chassis, front rotor size, rear rotor size, whether the car already has BMW carbon-ceramic brakes, wheel diameter and barrel clearance, and any non-OE caliper or spacer changes. The kit is not a universal M5/M6 brake package.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
