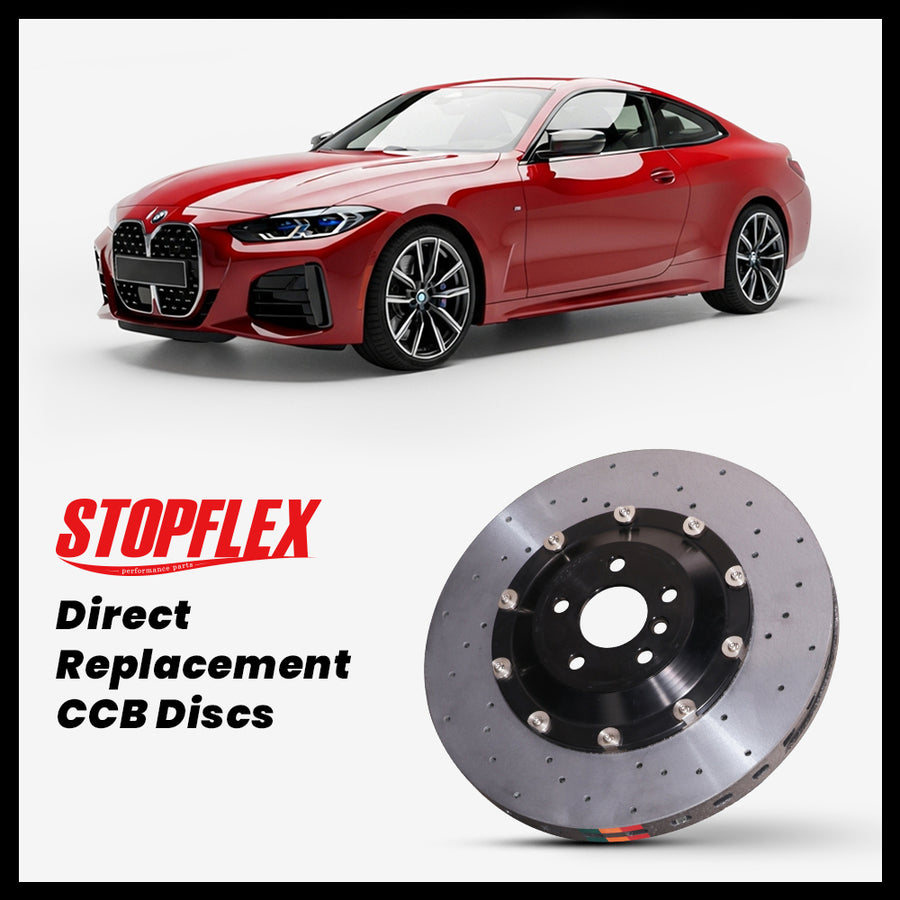

2021-2026+ BMW M440i / M440d (G22/G23/G26) Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Direct Replacement CCB Discs (Retain Factory Calipers) for the 2021-2026+ BMW M440i / M440d (G22/G23/G26). Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| M440i/M440d | 348mm, 374mm | 345mm | 19" |
Keep Your Factory Calipers?
Keep them if the front calipers are fixed 4-piston or more — the rear axle qualifies regardless. Front 1- or 2-piston floating calipers rule out the disc-only route; choose the Full Upgrade kit instead. Every set is machined to the factory rotor specs listed above, and aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood) only need the caliper model, pad shape, and rotor dimensions confirmed before we build.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Winter & Cold-Weather Braking
Winter question, straight answer: untuned ceramic discs bite less when cold. StopFlex optimized the pad compound and the rotor's ceramic coating for cold operation, so cold-start braking in winter feels very close to warm-weather braking. Extra following distance on freezing first stops is still smart; severe-winter daily cars should run Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat still soaks into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Do these fit both the M440i and M440d, and which rotor size do I order?
This page covers the M440i and M440d in G22 coupe, G23 convertible, and G26 Gran Coupe. Front factory rotors on these trims are either 348mm or 374mm depending on your build, and the rear is 345mm. Check the diameter stamped on your current front disc or your build sheet, then order to match. We only list the exact sizes above because the hats and floating hardware are machined to those specific fronts.
Will this work with my factory calipers, or do I need to change them?
This is a direct replacement that reuses your factory calipers front and rear. Direct replacement is only valid when the front factory calipers are 4-piston or more; the rear is unrestricted. On the M440i/M440d that means you bolt the carbon-ceramic rotors and matched pads to the calipers already on the car. No caliper swap, no bracket fabrication, and your factory electronic parking brake continues to operate on the rear.
How do these behave in winter on a cold car?
Physics first: an untuned cold carbon-ceramic disc bites less than cold iron on the first stop or two, and that is normal, not a defect. We tuned around it. StopFlex optimized both the low-metallic resin-composite pad and the disc's ceramic coating for cold starts, so winter cold-car feel now comes very close to summer feel on the M440i/M440d. On the coldest first stops of the day, still leave a little extra following distance until everything is up to temperature.
Will these clear my wheels?
The rotor diameters match your factory fronts (348mm or 374mm) and 345mm rear, so any wheel that cleared your steel setup clears these carbon-ceramic discs. If you run staggered aftermarket wheels or aggressive spacers, confirm your front size against the larger 374mm option before ordering, since that build sits closest to the barrel.
