2024-2026+ BMW i5 M60 (G60/G61) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

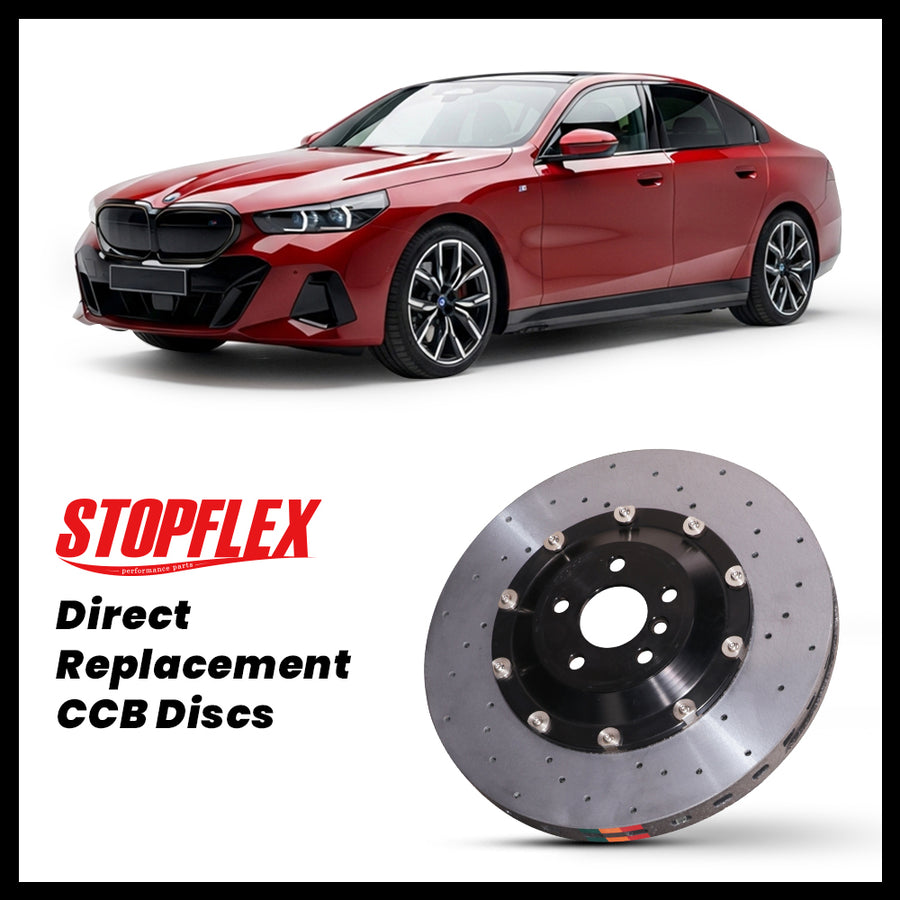

2024-2026+ BMW i5 M60 (G60/G61) Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2024-2026+ BMW i5 M60 is a heavy dual-motor G60/G61 EV, so the friction brakes still matter when regen tapers during repeated high-speed stops, mountain driving, or track sessions. This StopFlex OEM-size replacement kit uses 395mm front and 398mm rear carbon-ceramic rotors with matched pads, hats, and floating hardware to reduce iron-rotor heat stress, brake dust, and rotating mass while keeping the factory brake package dimensions.
- Built only for 2024-2026+ BMW i5 M60 G60/G61 applications using the listed 395mm front and 398mm rear rotor references.
- Carbon-ceramic discs reduce iron brake dust on the i5 M60’s large open-wheel fitments while maintaining OEM-size rotor placement for the factory caliper layout.
- Floating hats and hardware are included so the 395mm/398mm rotor set can manage thermal expansion better than a one-piece iron replacement during repeated heavy EV stops.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | BMW i5 M60 (G60/G61) |
| Model years | 2024-2026+ |
| Front rotor reference | i5 M60: 395mm |
| Rear rotor reference | i5 M60: 398mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 20" (for the 398 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 398 mm rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2024-2026 BMW i5?
No. This page is limited to the BMW i5 M60 G60/G61 trim family with the listed 395mm front and 398mm rear rotor references. Do not order for eDrive40, xDrive40, or cars with a different brake package without confirming rotor diameter and caliper configuration first.
Will the factory electronic parking brake and auto-hold still work?
Yes, when the car uses the compatible i5 M60 rear brake setup for this page. The kit replaces rotors, pads, hats, and floating hardware; it does not delete the factory rear caliper functions tied to EPB and auto-hold.
Why switch an i5 M60 from iron rotors to carbon ceramic?
The i5 M60’s mass and acceleration can load the friction brakes hard once regeneration is not enough. Carbon-ceramic rotors give higher heat stability, lower brake dust, and lower rotating unsprung mass than like-size iron rotors.
What should I confirm before ordering?
Confirm the vehicle is a 2024-2026+ BMW i5 M60 G60/G61, verify the current rotor sizes match 395mm front and 398mm rear, and check wheel barrel clearance if the car has non-factory wheels or spacers.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
