2011-2018 BMW 6 Series / M6 (F06/F12/F13) Carbon Ceramic Big Brake Kit — Brembo Shelby GT500 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2011-2018 BMW 6 Series / M6 (F06/F12/F13). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2011-2018 | Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper / 380mm |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor Option 2: Brembo GT | M4 4-Piston Caliper — 355 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
19" |
This kit is built per car, not per platform. We engineer the brackets, rotor-hat offsets, and caliper mounting to your confirmed model and trim, because trims sharing a chassis name frequently differ underneath — performance variants can run different knuckles, hub geometry, and wheel ET clearance than their standard siblings. You receive calipers, pads, rotor hats, floating hardware, and brake lines as one matched, trim-specific system. Cars with modified knuckles, uprights, or non-factory suspension mounting points need review before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper OE / Part No.: L BRCF430 · R BRCF431 |
| Front CCB rotors | 380mm |
| Rear calipers |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor OE / Part No.: L 172-2523 · R 172-2524 Option 2: Brembo GT | M4 4-Piston Caliper — 355 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Any kit order can be personalized: custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the hardware behind your wheels matches the rest of the build.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Caliper Overview
Front Caliper

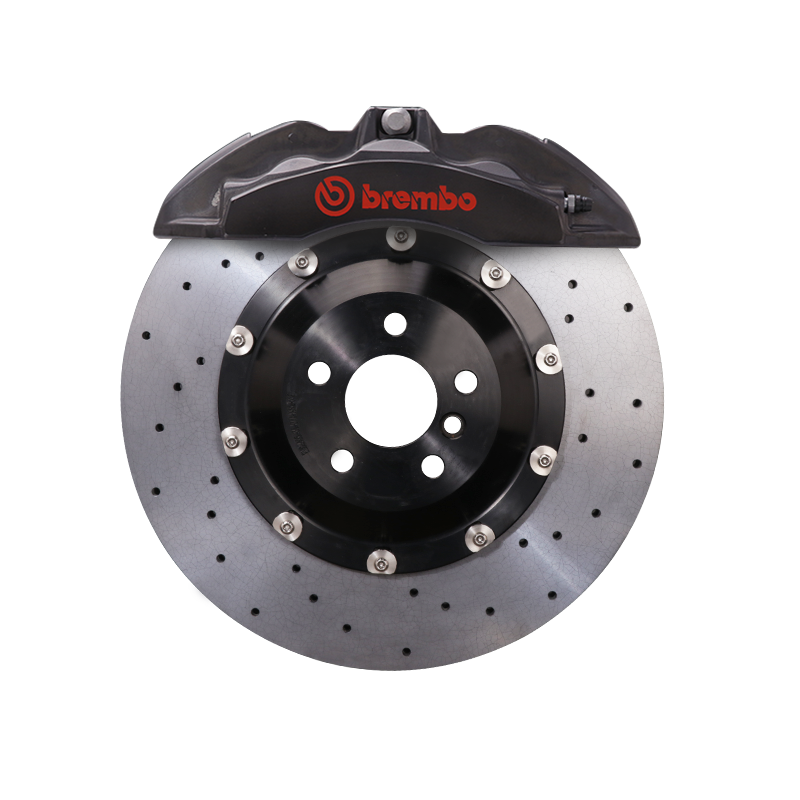

The front uses the Brembo OEM Ford Shelby GT500 Mustang 6-piston caliper, a factory-production monobloc unit that clamps a 380mm carbon-ceramic disc. Six pistons spread pad pressure evenly, which is what keeps pedal travel short and consistent when you're hauling down a 4,200 lb 650i or M6 from highway speed.
Rear Caliper
The rear runs a Brembo 4-piston caliper over a 355mm disc, and you pick the option that fits your build: V4 (Brembo OEM Cadillac CTS-V), GT4 (Brembo GT | M4), or GTS4 (Brembo GT | S4). This adds rear thermal capacity so the fronts aren't doing all the work on repeated stops.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Share your year, model, trim, wheel size, current rotor dimensions, and caliper type — every order is verified against your VIN-level configuration before it goes to production.
FAQ
Will this fit my exact 6 Series or M6 without guessing?
Every kit is engineered for your confirmed trim, not the F06/F12/F13 platform as a whole. The M6 uses different front uprights, hub geometry, and wheel clearance than a 640i or 650i, so the brackets, rotor-hat offsets, and caliper mounting we build are specific to the car you confirm. We do not make a universal bolt-on claim. Send your VIN and we match the hardware before anything ships.
What wheels do I need to clear the 380mm front rotor?
The 380mm front disc and 6-piston front caliper require a minimum 19-inch wheel. Under 19 inches will not clear the caliper. Spoke design also matters, not just diameter, so a tight multi-spoke 19 can still foul. Send us your wheel specs and we'll confirm clearance against the front caliper envelope.
How do these carbon-ceramic brakes behave in winter cold?
A cold carbon-ceramic disc naturally bites a little less than cold iron on the first stops. That's physics, not a fault. We tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car feel now comes very close to summer feel on this kit. On the coldest first stops, leave a little extra following distance until the system comes up to temperature, then it's fully there.
Does the kit keep my electronic parking brake working?
Yes. The F06/F12/F13 uses a factory electromechanical parking brake, and the rear caliper option you choose is set up to retain that function. The parking brake operates as it does from the factory once the kit is installed.
