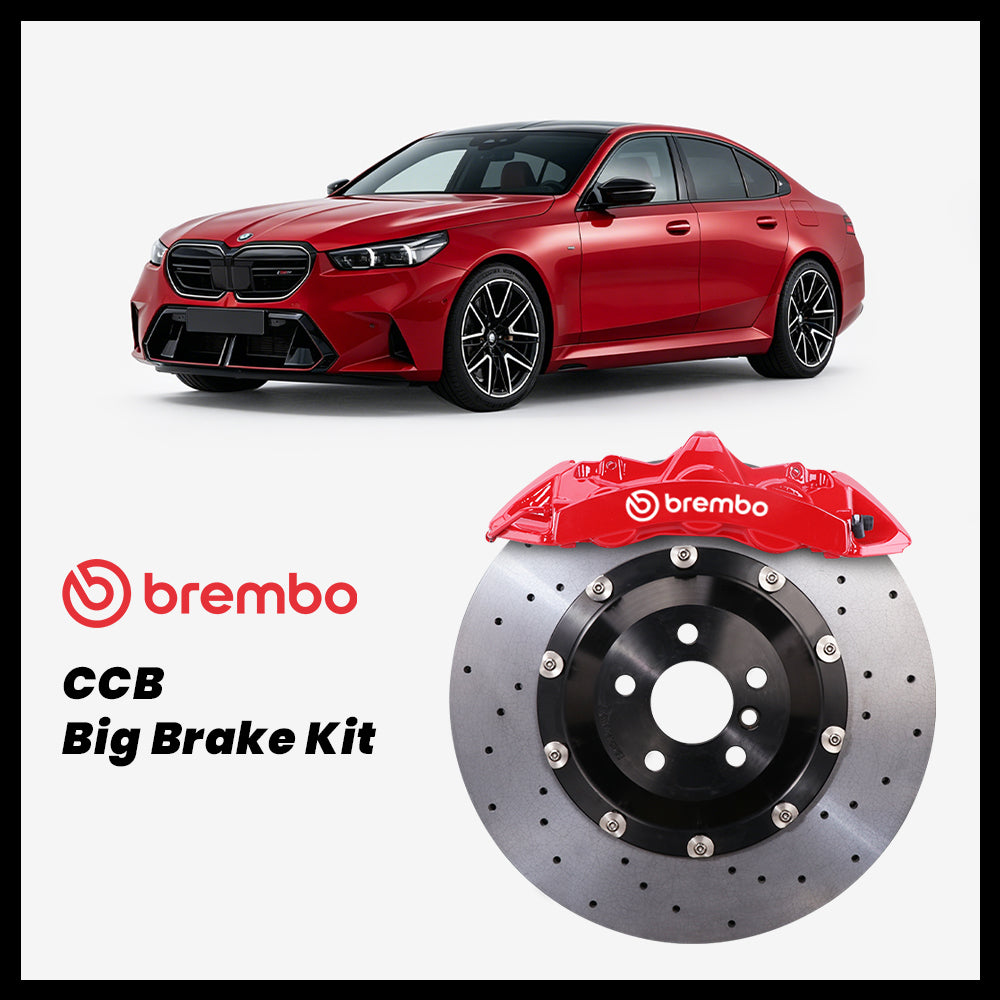

2024-2026+ BMW 5 Series / M5 (G60/G61/G90/G99) Carbon Ceramic Big Brake Kit — Brembo GT6 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2024-2026+ BMW 5 Series / M5 (G60/G61/G90/G99). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2024-2026+ |
Option 1: Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor Option 2: Brembo GT | M6 6-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S6 6-Piston Caliper — 380 mm rotor |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor Option 2: Brembo GT | M4 4-Piston Caliper — 355 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
19" |
This kit is built per car, not per platform. We engineer the brackets, rotor-hat offsets, and caliper mounting to your confirmed model and trim, because trims sharing a chassis name frequently differ underneath — performance variants can run different knuckles, hub geometry, and wheel ET clearance than their standard siblings. You receive calipers, pads, rotor hats, floating hardware, and brake lines as one matched, trim-specific system. Cars with modified knuckles, uprights, or non-factory suspension mounting points need review before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers |
Option 1: Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor OE / Part No.: L 172-2521 · R 172-2522 Option 2: Brembo GT | M6 6-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S6 6-Piston Caliper — 380 mm rotor |
| Rear calipers |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor OE / Part No.: L 172-2523 · R 172-2524 Option 2: Brembo GT | M4 4-Piston Caliper — 355 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Specify custom caliper colors, a custom caliper logo, and custom rotor hat colors on any kit order — the finished package matches your build instead of a standard catalog look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Winter & Cold-Weather Braking
Winter question, straight answer: untuned ceramic discs bite less when cold. StopFlex optimized the pad compound and the rotor's ceramic coating for cold operation, so cold-start braking in winter feels very close to warm-weather braking. Extra following distance on freezing first stops is still smart; severe-winter daily cars should run Street Spec.
Caliper Overview
Front Caliper
The front uses the Brembo V6 / GT6 / GTS6 6-piston caliper family over a 380 mm carbon-ceramic rotor; you pick among the V6 (OEM Cadillac CTS-V), GT6 (Brembo GT | M6), or GTS6 (Brembo GT | S6). All three give you six pistons of even, repeatable clamp for a firm, consistent pedal on the heavy G60/G90 platform.
Rear Caliper
The rear pairs a Brembo V4 / GT4 / GTS4 4-piston caliper with a 355 mm carbon-ceramic rotor, choosing between the V4 (OEM Cadillac CTS-V), GT4 (Brembo GT | M4), or GTS4 (Brembo GT | S4). The four-piston rear adds real thermal capacity for a car this heavy and is engineered to retain the factory electronic parking brake function.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat still soaks into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Will this kit fit my exact 5 Series or M5 trim?
Each kit is engineered for your confirmed trim, not the G60/G61/G90/G99 platform in general. The G90/G99 M5 uses different front knuckles, hub geometry, and wheel clearance than a 540i xDrive, so the brackets, rotor-hat offsets, and caliper mounting are cut to match the car you actually own. Confirm your trim and we build to it — we don't sell this as a blanket platform bolt-on.
What wheels do I need to clear these brakes?
The front rotor is 380 mm, so you need a minimum 19-inch wheel; nothing under 19 inches will clear the caliper and disc. Spoke design matters too — some 19-inch wheels have inner spoke profiles that foul the caliper — so send us your wheel details and we'll verify clearance before you buy.
How do carbon-ceramic brakes behave in winter and on cold mornings?
An untuned cold carbon-ceramic disc bites less than cold iron — that's physics, not a fault. We've optimized both the pad compound and the disc's ceramic coating for cold starts, so first-stop feel on a cold G60 or M5 now comes very close to warm summer feel. On the coldest first stops it's still smart to leave a little extra following distance until everything is up to temperature.
Do these keep my electronic parking brake working?
Yes. The G60/G61/G90/G99 uses a factory electromechanical parking brake in the rear, and the Brembo V4 / GT4 / GTS4 rear caliper is set up to retain that EPB actuation. Your parking brake, auto-hold, and dash function stay intact after the swap.
