2019-2026+ BMW 3 Series / M3 (G20/G21/G80/G81) Carbon Ceramic Big Brake Kit — Brembo BMW F90 M5 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2019-2026+ BMW 3 Series / M3 (G20/G21/G80/G81). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2019-2026+ | Brembo OEM BMW M5 F90 6-Piston Caliper / 400mm | TTSPORT EP4 4-Piston Forged Caliper integrated with EPB / 380mm | 20" |
Fitment here is bespoke: brackets, hat offsets, and caliper mounting are engineered for your exact model and trim rather than copied across the platform. Two trims with the same chassis code can still differ in knuckles, hub geometry, and wheel ET clearance — which is why we confirm your trim first, then build the matched system of calipers, pads, rotor hats, floating hardware, and lines for it. Modified knuckles, uprights, or non-factory suspension points require review before ordering.
The 400 mm rotor sets the minimum wheel size at 20" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | Brembo OEM BMW M5 F90 6-Piston Caliper OE / Part No.: L 34118089939 · R 34118089940 |
| Front CCB rotors | 400mm |
| Rear calipers | TTSPORT EP4 4-Piston Forged Caliper integrated with EPB |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Any kit order can be personalized: custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the hardware behind your wheels matches the rest of the build.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Caliper Overview
Front Caliper

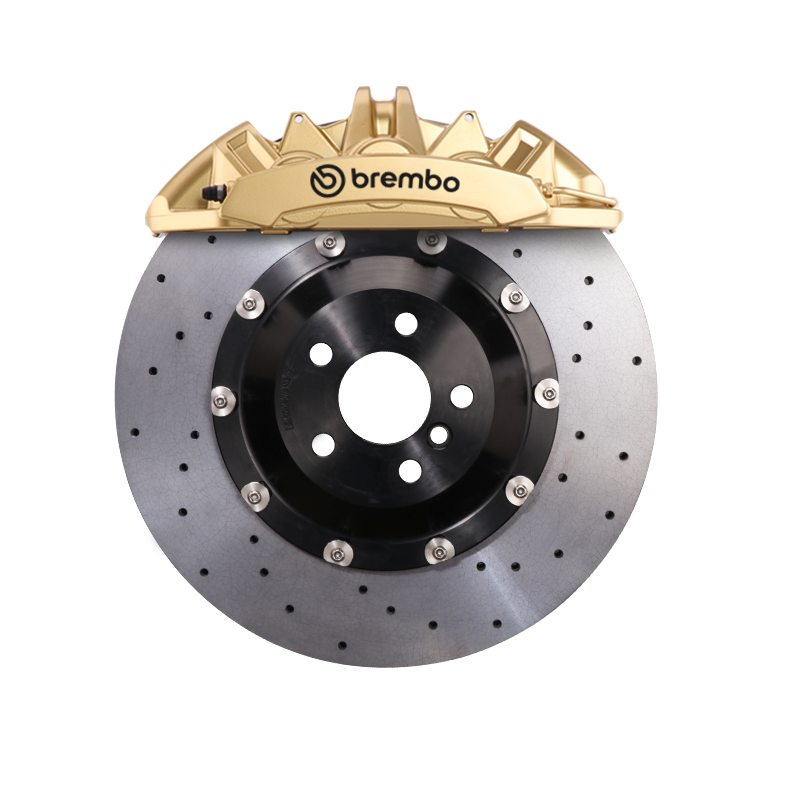

The front caliper is the Brembo OEM BMW M5 F90 6-Piston Caliper, a factory-engineered monobloc unit clamping a 400mm carbon-ceramic rotor. Six pistons spread clamping load evenly across the pad for a firm, repeatable pedal even after repeated hard stops.
Rear Caliper
The rear is the TTSPORT EP4 4-Piston Forged Caliper running a 380mm rotor. It uses four hydraulic service pistons plus one dedicated EPB actuator piston, so your factory electronic parking brake keeps working while the rear axle gains real thermal capacity; its two-piece forged-aluminum body weighs about 4.50 kg per caliper without pads.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Before ordering, tell us the exact vehicle, current rotor sizes, and caliper type. Nothing goes to production until the build is confirmed against your VIN-level configuration.
FAQ
How does this kit brake in cold weather and winter?
A cold carbon-ceramic disc naturally bites a little less than cold iron on the first stops — that is physics, not a fault. StopFlex tunes both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car feel now comes very close to summer feel. Give yourself a little extra following distance on the coldest first stops until temperature comes up.
Will this fit my specific trim, like a 330i versus an M3?
Every kit is built for your confirmed trim, not the chassis name. A G80/G81 M3 uses different front knuckles, hub geometry, and wheel clearance than a G20 330i, so we match the brackets, rotor-hat offsets, and caliper mounting to your exact car. We never sell a platform-wide bolt-on and assume it fits everything with a 3 Series badge.
What wheels do I need to clear the 400mm front rotor?
The 400mm front rotor requires a minimum 20-inch wheel. Anything under 20 inches will not clear the caliper and rotor, and spoke clearance matters too, so send your wheel details during fitment so we can confirm before you order.
Does the rear caliper keep my electronic parking brake?
Yes. The G20/G21/G80/G81 uses a factory electronic parking brake, and the TTSPORT EP4 includes a dedicated EPB actuator piston alongside its four hydraulic service pistons. You keep OE parking-brake function and auto-hold while adding rear-axle thermal capacity.
