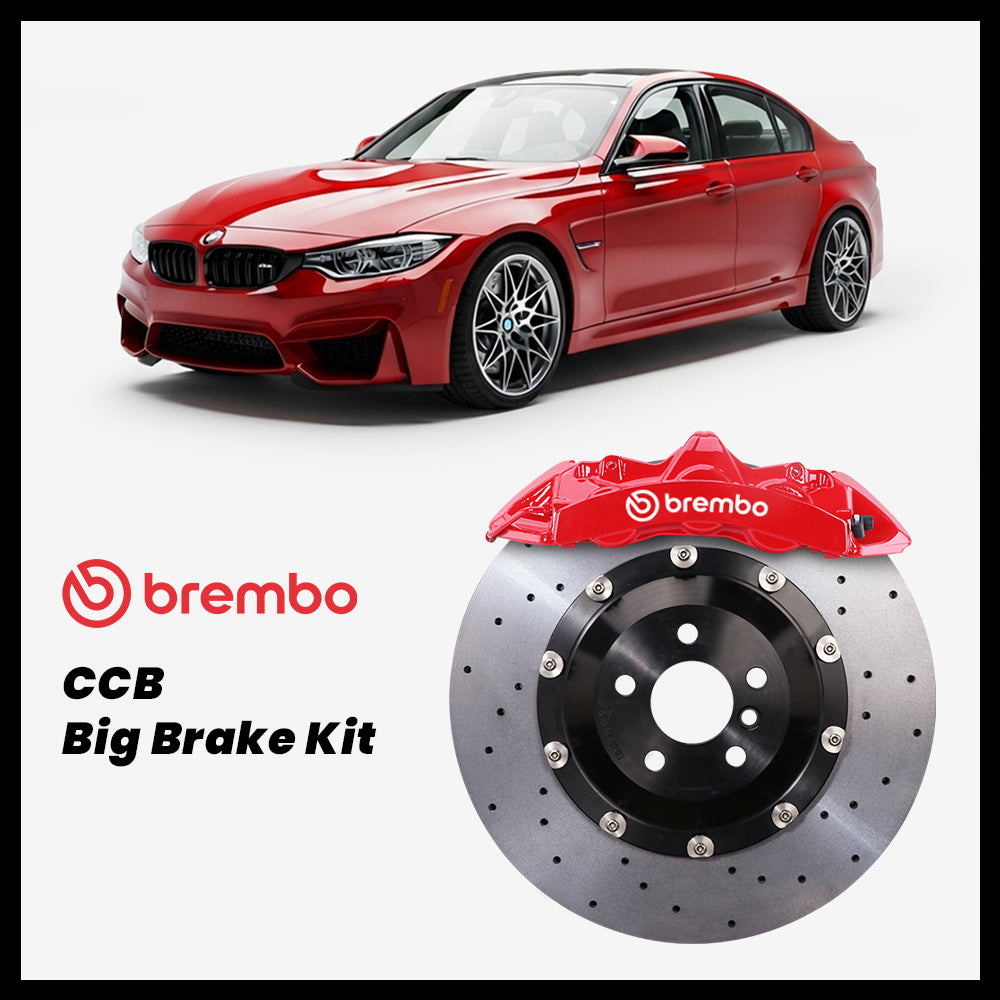

2012-2018 BMW 3 Series / M3 (F30/F31/F80) Carbon Ceramic Big Brake Kit — Brembo GT6 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2012-2018 BMW 3 Series / M3 (F30/F31/F80). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2012-2018 |
Option 1: Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor Option 2: Brembo GT | M6 6-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S6 6-Piston Caliper — 380 mm rotor |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor Option 2: Brembo GT | M4 4-Piston Caliper — 355 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
19" |
Every StopFlex kit is bespoke-engineered for your exact model and trim — brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, never assumed from the platform. Trims that share a chassis name can differ mechanically: a pure performance variant often carries different knuckles, hub geometry, and wheel ET clearance than the standard models, so parts that bolt onto one are not the parts that fit the other. Calipers, pads, rotor hats, floating hardware, and brake lines ship as one matched system built to your confirmed trim. Modified knuckles, uprights, or non-factory suspension mounting points must be reviewed before ordering.
The 380 mm rotor sets the minimum wheel size at 19" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers |
Option 1: Brembo OEM Cadillac CTS-V 6-Piston Caliper — 380 mm rotor OE / Part No.: L 172-2521 · R 172-2522 Option 2: Brembo GT | M6 6-Piston Caliper — 380 mm rotor Option 3: Brembo GT | S6 6-Piston Caliper — 380 mm rotor |
| Rear calipers |
Option 1: Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor OE / Part No.: L 172-2523 · R 172-2524 Option 2: Brembo GT | M4 4-Piston Caliper — 355 mm rotor Option 3: Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Specify custom caliper colors, a custom caliper logo, and custom rotor hat colors on any kit order — the finished package matches your build instead of a standard catalog look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Winter & Cold-Weather Braking
Winter question, straight answer: untuned ceramic discs bite less when cold. StopFlex optimized the pad compound and the rotor's ceramic coating for cold operation, so cold-start braking in winter feels very close to warm-weather braking. Extra following distance on freezing first stops is still smart; severe-winter daily cars should run Street Spec.
Caliper Overview
Front Caliper
Front braking runs the Brembo GT | M6 6-piston caliper on a 380 mm carbon-ceramic rotor, clamping across six pistons for consistent pedal feel from cold to heat-soaked. You choose among the front options — V6 (Cadillac CTS-V OEM), GT6 (GT | M6), or GTS6 (GT | S6) — all matched to the 380 mm disc.
Rear Caliper
The rear uses a Brembo 4-piston caliper on a 355 mm carbon-ceramic rotor for added rear thermal capacity and balanced bias. Choose among V4 (Cadillac CTS-V OEM), GT4 (GT | M4), or GTS4 (GT | S4), with the rear parking-brake function retained on EPB-equipped cars.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat still soaks into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Will this kit fit my exact F30, F31, or F80?
Every kit is engineered for your confirmed trim, not the whole platform. The F80 M3 uses different front knuckles, hub geometry, and wheel clearance than a 320i/328i/330i/340i, so brackets, rotor-hat offsets, and caliper mounting are cut for your specific car after you confirm the trim. We do not sell this as a universal platform bolt-on.
What wheels do I need to clear these brakes?
The front rotor is 380 mm, so you need at least 19-inch wheels — anything under 19 inches will not clear the disc. Spoke design also matters, since the six-piston caliper needs radial and inner-barrel space, so send us your wheel details during fitment confirmation.
How do these behave in winter and cold starts?
A cold carbon-ceramic disc naturally bites a little less than cold iron on the first stops — that is physics, not a fault. We tuned both the pad compound and the disc's ceramic coating for cold starts, so cold-car feel now comes very close to summer feel. On the coldest first stops, still leave a bit of extra following distance until the system reaches temperature.
Does the kit keep my electronic parking brake working?
Yes. The F30/F31/F80 uses a factory electromechanical parking brake in the rear caliper, and the rear V4/GT4/GTS4 4-piston options retain that EPB function on the 355 mm rear rotor, so your park-brake and hill-hold operate normally.
