2016-2026+ Audi SQ7 / Q7 (4M) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

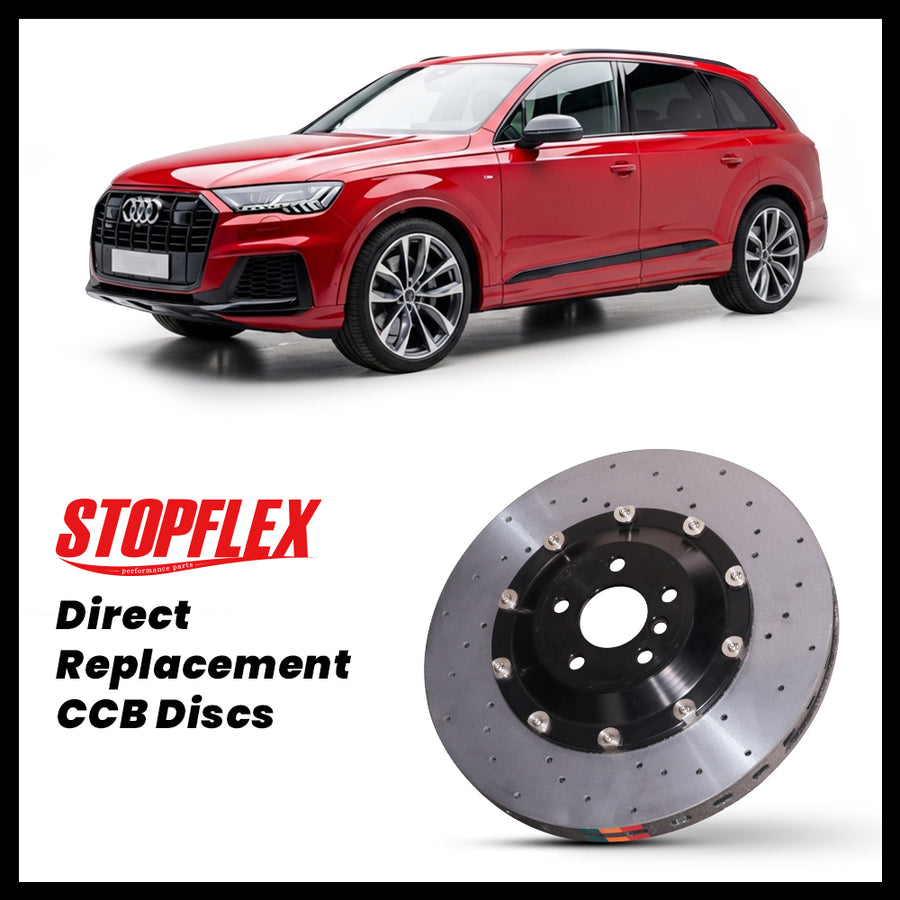

2016-2026+ Audi SQ7 / Q7 (4M) Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2016-2026+ Audi SQ7 / Q7 4M is a heavy MLB Evo SUV, so owners usually shop carbon ceramic replacements for repeat-stop heat control, lower brake dust, and the cost of replacing worn or cracked factory CCB rotors. This StopFlex OEM-size kit matches the listed 4M brake packages only: SQ7 front 400mm or 420mm CCB and rear 350mm or 370mm CCB, and Q7 front 350mm or 375mm with 350mm rear. Each kit includes carbon-ceramic rotors, matched pads, hats, and floating hardware for the listed factory-size configuration.
- Built around the 4M SQ7/Q7 rotor references on this page: SQ7 400mm or 420mm CCB front with 350mm or 370mm CCB rear; Q7 350mm or 375mm front with 350mm rear.
- Carbon-ceramic discs reduce rotating unsprung mass compared with iron rotors, which matters on a large AWD SUV where front-axle brake weight affects steering response and ride control.
- Low brake dust helps 4M Q7 and SQ7 owners running large open-spoke wheels keep the wheel barrels cleaner than an iron rotor and conventional pad setup.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Audi SQ7 / Q7 (4M) |
| Model years | 2016-2026+ |
| Front rotor reference | SQ7: 400mm, 420mm (CCB); Q7: 350mm, 375mm |
| Rear rotor reference | SQ7: 350mm, 370mm (CCB); Q7: 350mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 20" (for the 400 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 400 mm rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2016-2026+ Audi Q7 or SQ7 4M?
No. This page is limited to the exact trims and rotor sizes listed: SQ7 400mm or 420mm CCB front with 350mm or 370mm CCB rear, and Q7 350mm or 375mm front with 350mm rear. Confirm your current rotor diameter, caliper package, and VIN before ordering.
Does the kit keep the factory electronic parking brake and auto-hold functions?
The kit is designed as an OEM-size rotor and pad replacement for the listed 4M rear brake setup, so it works with the vehicle’s factory rear caliper and electronic parking brake system when ordered for the correct rotor size.
Why switch from the factory iron setup or replace OEM carbon ceramics with StopFlex?
For Q7 iron-brake owners, carbon ceramic reduces dust and unsprung mass while improving repeat-stop heat capacity. For SQ7 CCB owners, this kit replaces the carbon-ceramic rotors, pads, hats, and floating hardware without changing to an unrelated brake size.
What should I verify before buying for wheel clearance?
Check the front rotor size and caliper package first, because the SQ7 420mm CCB setup needs more radial wheel clearance than the Q7 350mm front setup. Wheel diameter alone is not enough; spoke shape, barrel profile, and caliper clearance must be checked.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
