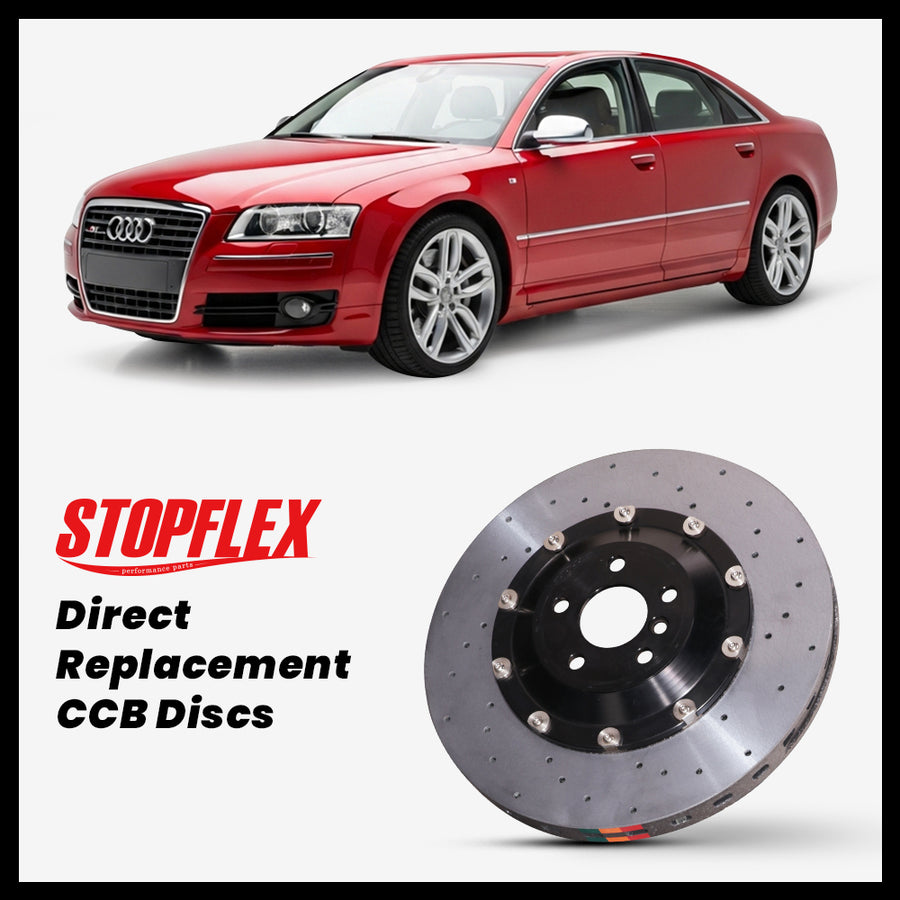

2006-2010 Audi S8 (D3) Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Direct Replacement CCB Discs (Retain Factory Calipers) for the 2006-2010 Audi S8 (D3). Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| S8 | 385mm, 380mm (CCB) | 335mm, 356mm (CCB) | 20" |
Keep Your Factory Calipers?
Yes — if your front factory calipers are fixed 4-piston or more. The rear axle has no restriction. Cars with 1- or 2-piston floating front calipers should use the Full Upgrade kit (calipers + discs) instead. Discs are built to the factory rotor specs shown above; if you run aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood), we simply confirm the caliper model, pad shape, and rotor dimensions before production.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Share your year, model, trim, wheel size, current rotor dimensions, and caliper type — every order is verified against your VIN-level configuration before it goes to production.
FAQ
Does this fit my D3 S8, and which rotor sizes are covered?
This page covers the 2006-2010 Audi S8 (D3) V10 only. It matches the factory front discs at 385mm or the factory CCB front discs at 380mm, with rear discs at 335mm (iron) or 356mm (factory CCB). Direct Replacement requires your front factory caliper to be 4-piston or more; the rear caliper has no such restriction. Confirm your exact rotor diameter before ordering, since the D3 platform is easy to mix up between the large iron package and the rare factory ceramic package.
The factory carbon-ceramic package was never sold in the US — can I still run these?
Yes. Because the D3 CCB option was not offered in the US, most American S8 cars run the large iron front discs. This kit installs on those cars by replacing the iron rotors with carbon-ceramic discs, hats, and floating hardware while keeping your original 4-piston-plus front calipers. You do not need the factory ceramic caliper hardware to run StopFlex ceramics on this car.
How do these behave on a cold winter start?
Physics first: a cold carbon-ceramic disc bites a little softer than cold iron until it warms — that is normal, not a fault. StopFlex tunes both the pad compound and the disc ceramic coating for cold starts, so on this heavy V10 the first cold stops now feel very close to summer. On the coldest mornings, leave a little extra following distance for the first one or two stops until temperature builds.
Will these hold up to the S8's weight and repeated hard stops?
That is the point of the swap. The D3 S8 is a heavy V10 sedan that carries speed quietly, so the real gain here is heat capacity and fade resistance on repeated hard stops. The carbon-ceramic-specific pad runs an average friction coefficient around 0.44 and resists fade to about 750 degrees C, while the ceramic discs shed heat and cut unsprung and rotating mass over the large iron rotors they replace.
