2019-2026+ Audi Q8 / SQ8 / RS Q8 (4M) CCB Big Brake Kit | Akebono 10N 10-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
2019-2026+ Audi Q8 / SQ8 / RS Q8 (4M) CCB Big Brake Kit — Genuine Akebono OEM Audi RS 10-Piston (10N) Caliper Front + TTSPORT EP4 4-Piston Caliper with EPB Rear Setup
This StopFlex kit is for 4M Audi Q8, SQ8, and RS Q8 owners who want RS-level front clamping hardware, lower brake dust, and carbon-ceramic heat capacity without treating every 4M trim as mechanically identical. The front axle uses the Genuine Akebono OEM Audi RS 10-Piston (10N) Caliper with a 420mm carbon-ceramic rotor, while the rear uses a TTSPORT EP4 4-Piston Caliper with EPB on a 380mm carbon-ceramic rotor. Each kit is built to the customer’s confirmed model and trim so the brackets, rotor-hat offsets, caliper location, lines, and hardware match the actual car, not just the Q8 chassis code.
- 420mm is the largest rotor in this kit, so 21-inch wheels are the minimum; barrel and spoke clearance still must be checked before production.
- The front upgrade centers on the Genuine Akebono OEM Audi RS 10-Piston (10N) Caliper, a credible OEM-derived RS brake component paired here with StopFlex carbon-ceramic rotors.
- The rear package retains electronic parking brake function with the TTSPORT EP4 4-Piston Caliper with EPB and adds a 380mm rear carbon-ceramic rotor for balanced rear-axle heat capacity.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Audi Q8 / SQ8 / RS Q8 (4M) |
| Model years | 2019-2026+ |
| Front setup | Genuine Akebono OEM Audi RS 10-Piston (10N) Caliper / 420mm |
| Rear setup | TTSPORT EP4 4-Piston Caliper with EPB / 380mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 21" (for the 420 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 420 mm front rotor, so the minimum wheel size is 21". Wheels under 21" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)

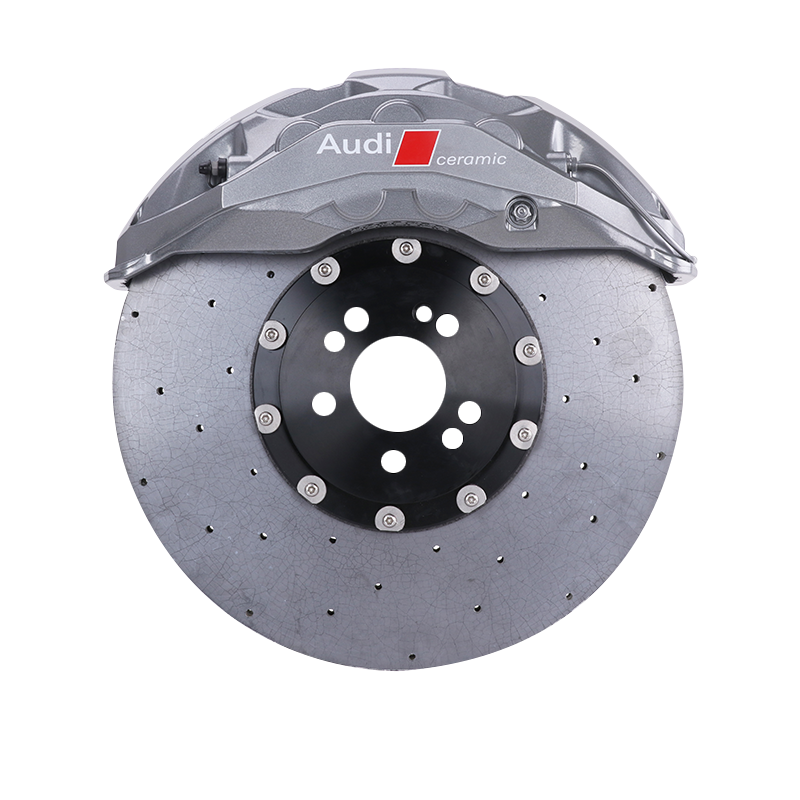

The front axle uses the Genuine Akebono OEM Audi RS 10-Piston (10N) Caliper, giving this heavy 4M SUV a large multi-piston pad interface for strong clamping force distribution and stable pedal response under repeated high-energy stops. Its value is provenance: it is a genuine OEM Audi RS-derived Akebono unit, not a generic caliper renamed for the application. StopFlex pairs it with a 420mm carbon-ceramic rotor, trim-specific mounting hardware, hats, pads, lines, and brackets engineered for the confirmed Q8, SQ8, or RS Q8.
Rear Caliper (Balance)
The rear axle uses the TTSPORT EP4 4-Piston Caliper with EPB on a 380mm carbon-ceramic rotor, adding rear thermal capacity instead of leaving the rear axle as an afterthought. Its EPB design preserves factory electronic parking brake function while contributing to brake balance and stability under hard deceleration.
Front & rear, engineered together: This kit is engineered as a front-and-rear system so the 420mm front Akebono setup and 380mm EP4 rear setup work together instead of creating a front-heavy mismatch. The EP4 architecture uses 4 hydraulic service pistons plus a dedicated EPB actuator piston, so the rear axle gains real braking hardware while the car keeps OE parking-brake convenience.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine Akebono OEM Audi RS 10-Piston (10N) Caliper |
| Front CCB rotors | 420mm |
| Rear calipers | TTSPORT EP4 4-Piston Caliper with EPB |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
TTSPORT EP4S rear caliper specification (the EP4 shares the same engineering, slightly more compact):
| Specification | EP4S |
|---|---|
| Axle position | Rear |
| Piston count | 4 hydraulic + 1 EPB actuator |
| Piston type | Two-piece heat-insulated, dust boots + EPB actuator |
| Piston diameter | 28 mm × 4 / 27 mm × 1 |
| Total piston area | 30.4 cm² per caliper |
| Manufacturing process | Two-piece forged aluminum body |
| Net weight | 4.50 kg per caliper (no pads) |
| Surface finish | High-temperature gloss coating |
| Recommended wheel size | 18 in or larger |
FAQ
Will this kit fit my exact 2019-2026+ Q8, SQ8, or RS Q8?
Fitment is not assumed from the 4M chassis name. StopFlex confirms the exact model, trim, factory brake package, hub/upright configuration, and wheel data before building the brackets, rotor-hat offsets, caliper position, lines, and hardware for that specific car.
What wheels are required for the 420mm front rotor?
The 420mm front rotor requires at least 21-inch wheels. Wheel diameter is only the first check; spoke shape, barrel profile, offset, and caliper face clearance must also be verified for the Genuine Akebono OEM Audi RS 10-Piston (10N) Caliper.
Will the electronic parking brake still work?
Yes. The rear TTSPORT EP4 4-Piston Caliper with EPB is selected for modern Audi platforms that require electronic parking brake retention, so the Q8/SQ8/RS Q8 keeps factory EPB convenience while gaining a 380mm carbon-ceramic rear brake package.
Why switch this Q8-family SUV to carbon-ceramic brakes?
Carbon-ceramic rotors address the issues that push many heavy performance-SUV owners into a brake upgrade: repeated-stop heat, iron-rotor dust on open wheels, unsprung weight, and the cost of replacing worn or damaged high-performance brake components. This kit combines 420mm front and 380mm rear carbon-ceramic rotors with matched calipers, pads, hats, lines, and hardware.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
