2009-2017 Audi Q5 / SQ5 (8R) Carbon Ceramic Big Brake Kit — Akebono 9N Audi RS 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2009-2017 Audi Q5 / SQ5 (8R). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2009-2017 | Akebono OEM Audi RS 6-Piston (9N) Caliper / 400mm | TTSPORT EP4 4-Piston Forged Caliper integrated with EPB / 380mm | 20" |
Fitment here is bespoke: brackets, hat offsets, and caliper mounting are engineered for your exact model and trim rather than copied across the platform. Two trims with the same chassis code can still differ in knuckles, hub geometry, and wheel ET clearance — which is why we confirm your trim first, then build the matched system of calipers, pads, rotor hats, floating hardware, and lines for it. Modified knuckles, uprights, or non-factory suspension points require review before ordering.
The 400 mm rotor sets the minimum wheel size at 20" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | Akebono OEM Audi RS 6-Piston (9N) Caliper OE / Part No.: L 4N0-615-107BD · R 4NO-615-108BD |
| Front CCB rotors | 400mm |
| Rear calipers | TTSPORT EP4 4-Piston Forged Caliper integrated with EPB |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Every StopFlex kit order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors — the brake package matches your exact build, not a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Caliper Overview
Front Caliper

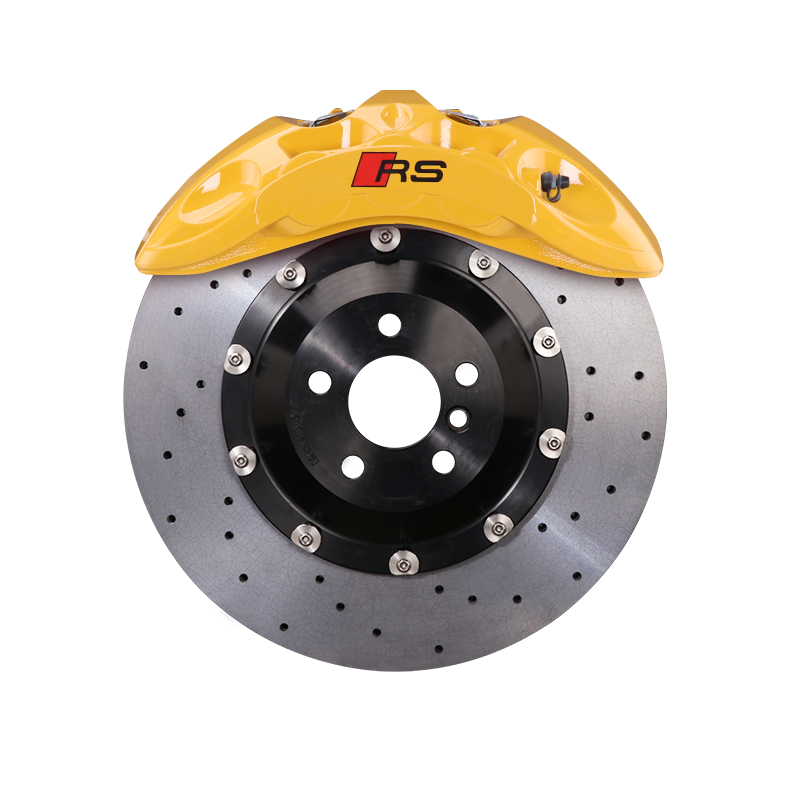

The front runs the Akebono OEM Audi RS 6-Piston (9N) caliper, the same fixed monobloc Audi specs on its RS models. Six opposed pistons clamp a 400mm carbon-ceramic rotor with even pad loading, so pedal feel stays consistent as the front axle heats up during repeated stops.
Rear Caliper
The rear uses the TTSPORT EP4 4-Piston Forged Caliper, a two-piece forged-aluminum body with four 28mm hydraulic service pistons plus a dedicated 27mm EPB actuator piston. That extra actuator preserves your factory electronic parking brake while the caliper adds real rear-axle thermal capacity on a 380mm rotor; each caliper weighs about 4.50 kg without pads.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
How does this kit behave in winter and cold starts?
A cold carbon-ceramic disc naturally bites less than cold iron on the very first stops. That is physics, not a fault. We tune both the low-metallic resin-composite pad and the disc's ceramic coating for cold starts, so on your 8R the first winter stops feel close to summer. Still, leave a little extra following distance on the coldest first pulls until the front 400mm rotors warm.
Will this fit my exact Q5 or SQ5 trim?
Every kit is engineered for your confirmed trim, not the 8R platform in general. The SQ5 uses different front knuckle and hub geometry than the standard Q5, so brackets, rotor-hat offsets, and caliper mounting are cut for your specific car. We do not make a universal bolt-on claim; we build brackets to match after you confirm year, trim, and wheel details.
What wheel size do I need to clear these brakes?
The front rotor is 400mm, so you need 20-inch wheels or larger. Anything under 20 inches will not clear the front caliper and rotor. Spoke shape and inner barrel clearance also matter, so send your wheel specs and we will confirm before you order.
Does the rear kit keep my factory electronic parking brake?
Yes. Your 8R Q5/SQ5 uses a factory electronic parking brake, and the TTSPORT EP4 rear caliper includes a dedicated EPB actuator piston. You keep the OE electronic parking-brake function and gain rear thermal capacity on a 380mm rotor at the same time.
