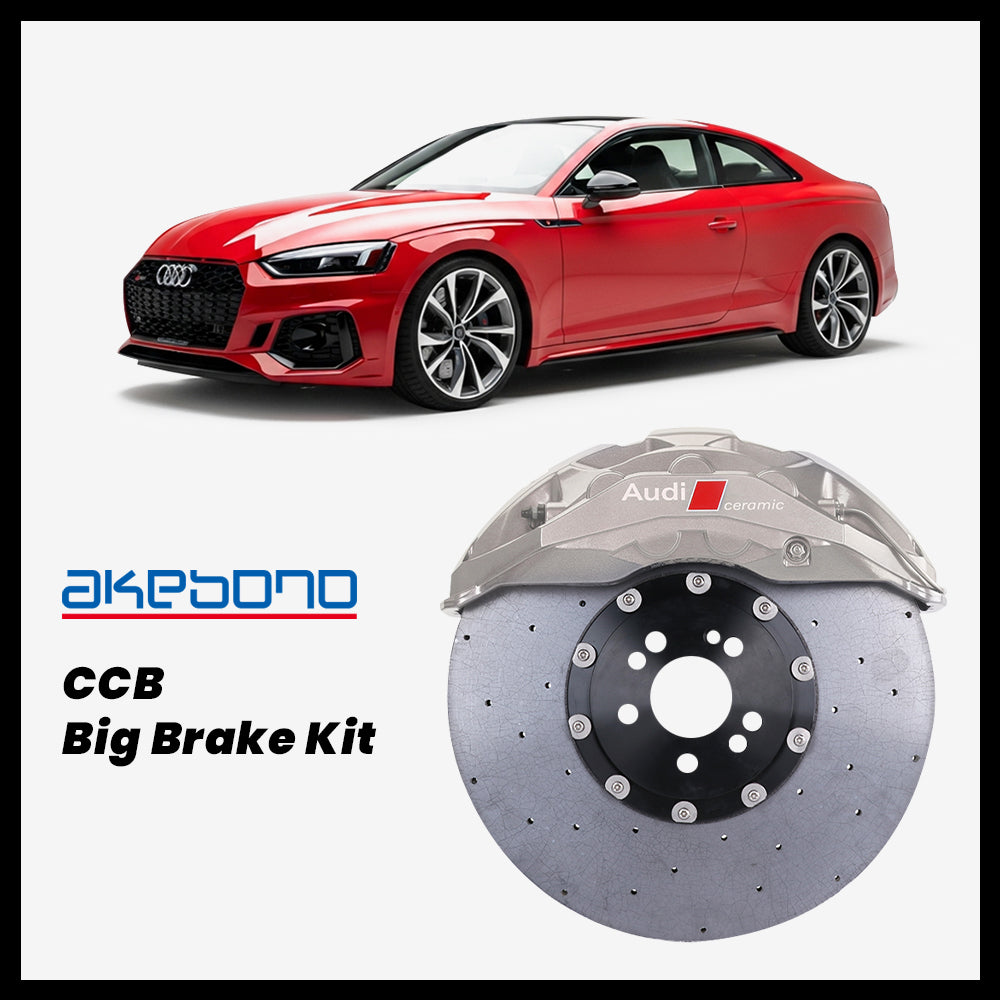

2017-2024 Audi RS5 (B9) Carbon Ceramic Big Brake Kit — Akebono 10N Audi RS 10-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Full Upgrade CCB Big Brake Kits (With Calipers) for the 2017-2024 Audi RS5 (B9). This page's exact brake setup:
| Model Years | Front Setup | Rear Setup | Min. Wheel Size |
|---|---|---|---|
| 2017-2024 | Akebono OEM Audi RS 10-Piston (10N) Caliper / 420mm | TTSPORT EP4 4-Piston Forged Caliper integrated with EPB / 380mm | 21" |
This kit is built per car, not per platform. We engineer the brackets, rotor-hat offsets, and caliper mounting to your confirmed model and trim, because trims sharing a chassis name frequently differ underneath — performance variants can run different knuckles, hub geometry, and wheel ET clearance than their standard siblings. You receive calipers, pads, rotor hats, floating hardware, and brake lines as one matched, trim-specific system. Cars with modified knuckles, uprights, or non-factory suspension mounting points need review before ordering.
The 420 mm rotor sets the minimum wheel size at 21" — smaller wheels will not clear the caliper and rotor. Spoke profile and offset also affect clearance; confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
What's in the Box
| Item | Details |
|---|---|
| Product type | Full Upgrade CCB Big Brake Kits (With Calipers) |
| Front calipers | Akebono OEM Audi RS 10-Piston (10N) Caliper OE / Part No.: L 4M8615107A · R 4M8615108A |
| Front CCB rotors | 420mm |
| Rear calipers | TTSPORT EP4 4-Piston Forged Caliper integrated with EPB |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched ceramic-compatible compound for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
Make It Yours — Color & Logo Customization
Specify custom caliper colors, a custom caliper logo, and custom rotor hat colors on any kit order — the finished package matches your build instead of a standard catalog look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why Carbon Ceramic — and Why StopFlex
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
Winter & Cold-Weather Braking
Cold facts first: an untuned ceramic disc bites less than iron on a freezing morning — physics, not a defect. StopFlex tuned both the pad compound and the disc's ceramic coating for cold starts, so winter cold-car braking now feels very close to summer. Leave extra margin on the very coldest first stops; severe-climate daily drivers should build Street Spec.
Caliper Overview
Front Caliper
The front runs the Akebono OEM Audi RS 10-Piston (10N) caliper, the same fixed 10-piston unit Audi specifies for its RS carbon-ceramic setups. Ten pistons spread clamp load evenly across the 420mm rotor, so pedal feel stays firm and consistent from cold streets to repeated high-speed stops.
Rear Caliper
The rear uses the TTSPORT EP4 4-Piston Forged Caliper with a dedicated EPB actuator piston, so your B9's factory electronic parking brake keeps working exactly as designed. Four 28mm hydraulic service pistons plus the 27mm EPB piston (30.4 cm² total piston area, roughly 4.50 kg per caliper) add real rear-axle thermal capacity on the 380mm rotor.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
Ceramic discs shrug off surface temperatures that would destroy iron, but the rest of the system still heats up: pads, fluid, seals, calipers, and wheels all absorb soak heat during repeated hard stops. For track days, long descents, and sustained hard driving, run brake cooling and high-temperature fluid.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Will these carbon-ceramic brakes work in cold winter weather?
Honest physics first: an untuned cold carbon-ceramic disc bites a little less than cold iron until it comes up to temperature—that is normal, not a defect. We addressed it on both fronts, tuning the low-metallic resin-composite pad compound and the disc's ceramic coating specifically for cold starts, so winter cold-car braking on the RS5 now feels very close to summer feel. On the coldest first few stops of the day, leave a little extra following distance and you're set.
Is this kit really built for my exact RS5, or is it a platform bolt-on?
It is bespoke-engineered for your confirmed B9 RS5 trim. The brackets, rotor-hat offsets, and caliper mounting are matched to your specific car's front knuckles, hub geometry, and wheel ET—we do not assume fit from the wider B9 family, because an RS variant can differ mechanically from an S4 or S5 sharing the same chassis name. We confirm your VIN and trim before anything is machined.
What wheels do I need to clear these rotors?
The front rotor is 420mm, so 21-inch wheels or larger are required—anything under 21 inches will not clear it. Spoke shape and inner-barrel clearance also matter around the 10-piston Akebono caliper, so send us your exact wheel specs during fitment confirmation and we'll verify clearance before you order.
Does the rear caliper keep my factory electronic parking brake?
Yes. The B9 RS5 uses a factory EPB, and the TTSPORT EP4 4-piston rear caliper includes a dedicated EPB actuator piston alongside its four hydraulic pistons. Your electronic parking brake engages and holds exactly as it does from the factory, while the 380mm carbon-ceramic rear adds thermal capacity for repeated stops.
