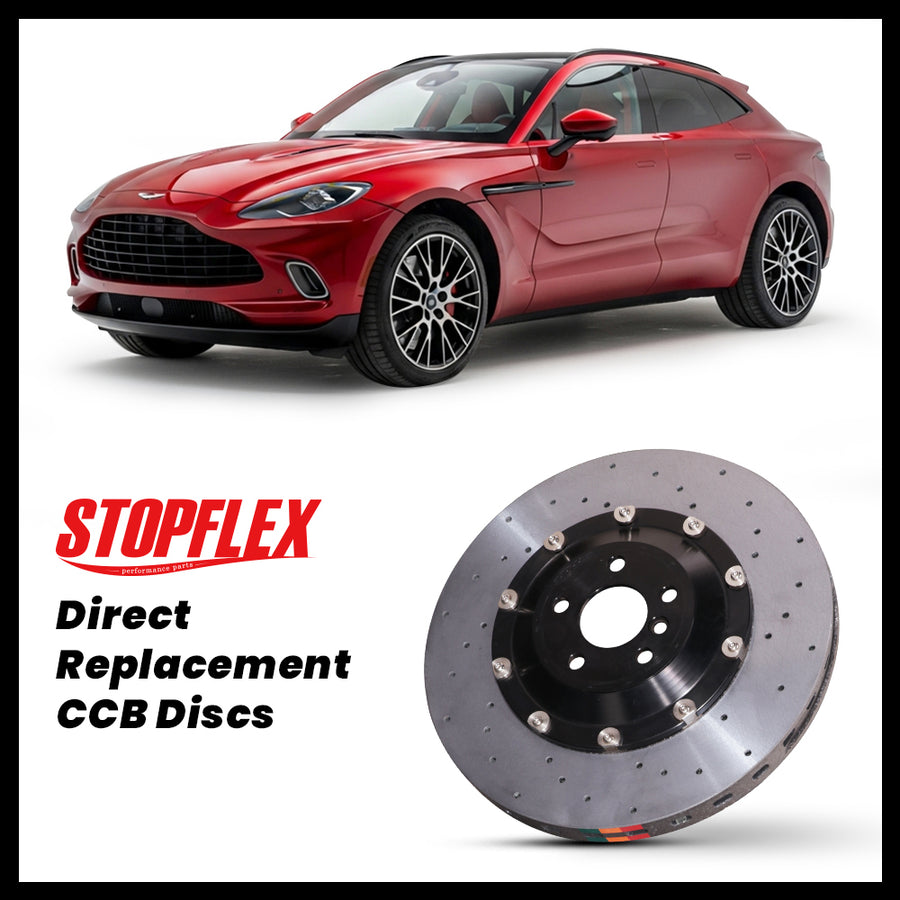

2020-2026+ Aston Martin DBX / S / 707 Carbon Ceramic Brake Rotors
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
Real Customer Builds & Reviews
Will This Fit My Car?
Direct Replacement CCB Discs (Retain Factory Calipers) for the 2020-2026+ Aston Martin DBX / S / 707. Factory rotor specifications and the smallest wheel that clears each trim:
| Trim | Front Rotor (Factory) | Rear Rotor (Factory) | Min. Wheel Size |
|---|---|---|---|
| DBX707/DBX S | 420mm (CCB) | 390mm (CCB) | 21" |
| DBX | 410mm | 390mm | 21" |
Keep Your Factory Calipers?
Keep them if the front calipers are fixed 4-piston or more — the rear axle qualifies regardless. Front 1- or 2-piston floating calipers rule out the disc-only route; choose the Full Upgrade kit instead. Every set is machined to the factory rotor specs listed above, and aftermarket calipers (Brembo, AP Racing, Alcon, Wilwood) only need the caliper model, pad shape, and rotor dimensions confirmed before we build.
Spoke profile and offset also affect clearance — confirm your exact wheels before ordering.
What's in the Box
| Item | Details |
|---|---|
| Product type | Direct Replacement CCB Discs (Retain Factory Calipers) |
| CCB rotors | Full-car set by default, built to the factory rotor specification |
| CCB brake pads | Matched ceramic-compatible compound for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment; custom rotor hat colors available for every Direct Replacement order. |
| Stainless floating hardware | Full-car hardware set |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
Why Carbon Ceramic — and Why StopFlex
Bespoke Per-Vehicle Engineering
Every order is machined to the confirmed vehicle and trim. Brackets, hat offsets, and pad shapes are built for that exact car — never pulled from a one-size-fits-all catalog.
CCB-Specific Pad Compound
A low-metallic resin pad compound reinforced with steel, copper, and aramid fiber, made for ceramic discs: stable to about 750 °C, roughly 0.44 average friction, strong fade resistance, low rotor wear.
Lower Unsprung Mass
A carbon-ceramic rotor weighs roughly half of the equivalent iron disc. Less rotating, unsprung mass lets the suspension follow broken pavement more cleanly and makes steering response noticeably sharper.
High-Temperature Stability
The carbon-silicon-carbide friction matrix keeps working at temperatures that push iron rotors into heavy fade, so the tenth hard stop feels like the first — same pedal travel, same bite point.
Rust-Free Rotor Surface
Ceramic discs cannot flash-rust. After rain, a wash, or weeks of parking, the rotor face behind your open-spoke wheels stays clean — no orange ring on a freshly detailed car.
Long Street-Service Life
In normal road use with matched pads and correct bedding, one StopFlex CCB rotor set is engineered to outlast several sets of iron replacement rotors, recovering part of the up-front cost.
Low Visible Dust
Matched with StopFlex pads, the system sheds a fraction of the dust an iron rotor and pad combination throws. Wheels stay clean for weeks of driving instead of days.
Premium Ceramic-Glaze Finish
StopFlex's proprietary coating gives the disc a bright ceramic-glaze surface with subtle texture — the factory carbon-ceramic look, clearly visible through open wheel designs.
Continuous Fiber Construction
StopFlex discs are built with long continuous carbon fiber instead of chopped short fiber. Continuous strands carry load across the whole rotor body, raising strength and thermal durability under heat cycles.
Winter & Cold-Weather Braking
A cold, untuned carbon-ceramic disc needs more pedal than iron on the first winter stops — normal material physics. StopFlex engineered the pad formula and disc coating specifically for cold starts, closing that gap: cold-car winter feel is now very close to summer feel. Keep a little extra distance on the coldest mornings; for harsh winters, choose Street Spec.
Choose Your Rotor: Street, Track-Day, or Motorsport
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Heat Management Note
High rotor temperature tolerance does not mean heat management disappears. Under repeated hard braking, heat migrates into the pads, brake fluid, seals, calipers, and wheels even when the ceramic disc itself is comfortable. Plan brake cooling and high-temperature fluid for extended track sessions, long mountain descents, or sustained aggressive driving.
Get Your Fitment Confirmed
Send the exact vehicle details, current rotor sizes, and caliper type before ordering. Every StopFlex order is confirmed against your VIN-level configuration before production.
FAQ
Does this fit my exact DBX trim, or only the 707?
It covers the 2020-2026+ DBX, DBX S, and DBX707, but the correct rotor set depends on your trim. The DBX707 and DBX S run 420mm front and 390mm rear carbon-ceramic discs from the factory; the standard DBX uses 410mm front and 390mm rear. This is a Direct Replacement kit that reuses your factory calipers, so it is valid only when your front calipers are 4-piston or more. Send us your VIN and we confirm the front rotor size and caliper piston count before anything ships.
How do these behave on a cold winter morning?
Any cold carbon-ceramic disc bites a little less than cold iron on the very first stops. That is physics, not a fault, and it applies to your factory Aston discs too. We tuned both the pad compound and the disc's ceramic surface coating for cold starts, so on a cold DBX the first-application feel now comes very close to how it feels warmed up. On the coldest mornings, leave a little extra following distance for your first two or three stops, then the system is at full bite.
Will I lose the factory electronic parking brake or ceramic-disc calibration?
No. Because you keep the original DBX calipers, including the rear EPB actuators on the 390mm rear discs, the parking brake and its self-adjust function work exactly as delivered. The rotors, hats, and floating hardware are dimensioned to the factory 420mm or 410mm front and 390mm rear geometry so pad contact area and sensor behavior match what the car expects.
Why go carbon ceramic again instead of switching to steel discs?
The DBX is the heaviest, hardest-working brake application Aston has built, near 5,000 lbs with real sports-car pace. Steel discs on this mass fade and warp under repeated hard stops and add significant unsprung weight per corner. Carbon ceramic keeps the low weight, high heat capacity, and dust reduction you already paid for. Our pads are a carbon-ceramic-specific low-metallic resin composite with steel, copper, and aramid fiber, roughly 0.44 friction coefficient and stable to about 750 °C.
