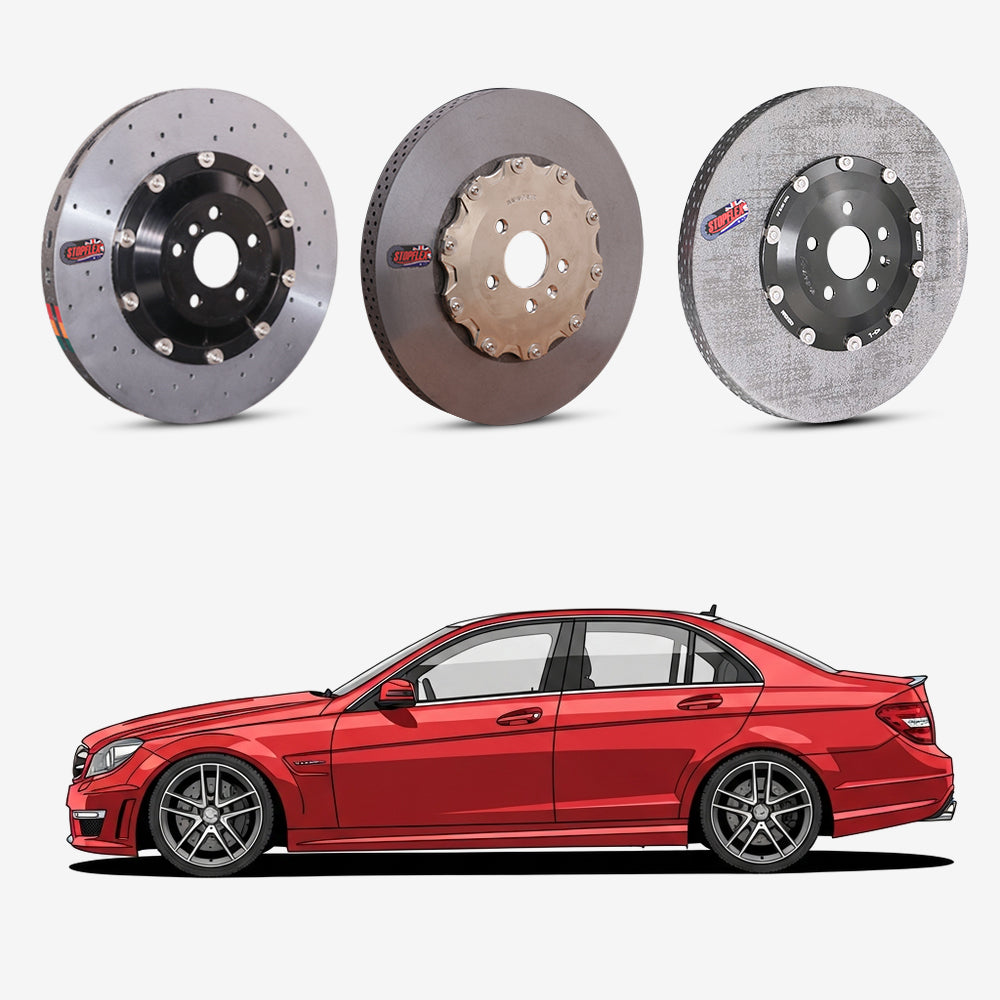

2008-2015 Mercedes-AMG C63 (W204/S204/C204) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2008-2015 Mercedes-AMG C63 (W204/S204/C204) Carbon Ceramic Brake Kit — OEM-Size Replacement
W204, S204, and C204 C63 owners usually arrive here after repeat front-rotor vibration, heavy brake dust, or heat fade from a 6.2L AMG used hard on back roads or track days. This OEM-size StopFlex kit keeps the C63’s 360mm front and 330mm rear brake package dimensions, replacing the iron friction rings with carbon-ceramic rotors, matched pads, hats, and floating hardware. The payoff is lower rotating unsprung mass, more stable high-temperature braking, cleaner open-spoke wheels, and fitment that stays tied to the factory C63 rotor envelope.
- Built for the W204/S204/C204 C63 AMG brake package with 360mm front rotors and 330mm rear rotors; not for non-AMG C-Class brake sizes.
- Designed around the factory C63 caliper locations, so the kit changes the rotor material and hat assembly without requiring a big-brake caliper conversion.
- Carbon-ceramic friction rings reduce the heat cycling, dust load, and rotating mass that make the heavy M156-powered C63 hard on conventional iron rotors.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Mercedes-AMG C63 (W204/S204/C204) |
| Model years | 2008-2015 |
| Front rotor reference | C63: 360mm |
| Rear rotor reference | C63: 330mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 19" (for the 360 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 360 mm rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2008-2015 C63 AMG sedan, wagon, and coupe?
It is limited to W204 sedan, S204 wagon, and C204 coupe C63 AMG cars using the 360mm front and 330mm rear rotor setup listed on this page. Confirm your VIN, current rotor diameters, and caliper package before ordering, especially if the car has prior brake modifications.
Will my parking brake still work with the rear carbon-ceramic rotors?
Yes, the rear hats are supplied for the C63’s factory rear parking-brake arrangement when matched to the listed 330mm rear setup. This page is not for cars converted to a different rear brake or non-C63 parking-brake hardware.
Why switch from the OEM iron rotors on a W204 C63?
The C63’s front 360mm iron rotors carry high thermal load from the M156 V8 and the car’s weight, which can lead to vibration, pad transfer, dust, and fade when driven hard. Carbon-ceramic rotors reduce rotating unsprung weight, run with less dust, and maintain more consistent friction under repeated heat cycles when used with the supplied pads.
Is this kit for street use, track use, or both?
It is an OEM-size replacement for owners who want street fitment with better heat stability and lower dust than iron. For track use, confirm wheel clearance, pad choice, tire grip, brake fluid, and cooling, because the C63’s brake temperatures depend heavily on pace, tire compound, and session length.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
