2022-2026+ Land Rover Range Rover / SV (L460) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2022-2026+ Land Rover Range Rover / SV (L460) Carbon Ceramic Brake Kit — OEM-Size Replacement

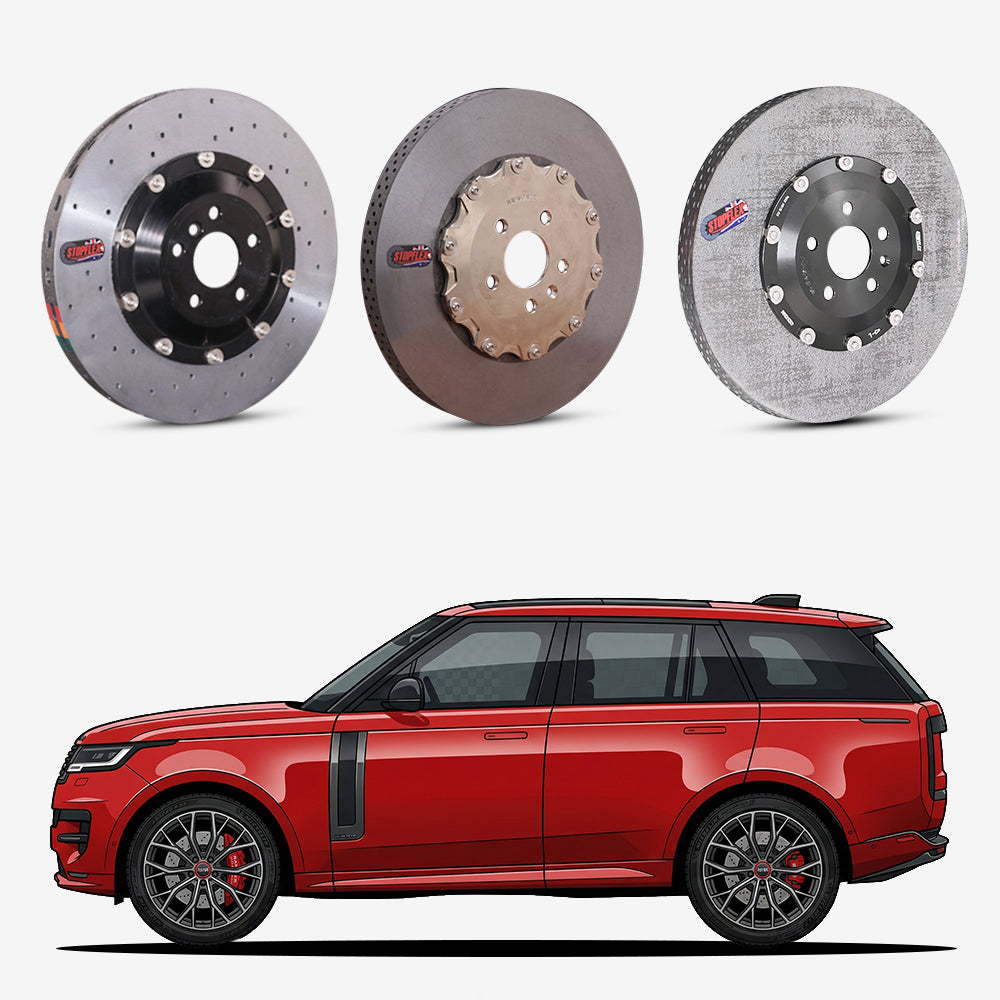

This OEM-size StopFlex kit is for 2022-2026+ Range Rover / SV L460 models that use the 380mm front and 355mm rear brake package. It replaces the factory rotors with carbon-ceramic discs, matched pads, hats, and floating hardware to reduce brake dust, cut rotating mass, and add heat stability without changing the factory caliper layout. Confirm your trim and measured rotor sizes before ordering because this page is limited to the listed 380mm/355mm setup.
- Built around the L460 Range Rover / SV 380mm front and 355mm rear OEM-size brake package, not a universal Range Rover rotor set.
- Carbon-ceramic rotors reduce visible pad and rotor dust on the large open-face Range Rover/SV wheel designs compared with the factory iron brake setup.
- Floating hats and hardware are included so the kit replaces the rotor assembly, pads, and mounting hardware while retaining the factory caliper positions.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Land Rover Range Rover / SV (L460) |
| Model years | 2022-2026+ |
| Front rotor reference | SV/Std: 380mm |
| Rear rotor reference | SV/Std: 355mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 19" (for the 380 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 380 mm rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2022-2026+ Range Rover L460 or SV?
No. This page is only for L460 Range Rover / SV vehicles using the listed 380mm front and 355mm rear rotor sizes. Verify the VIN build data or measure the existing rotors before ordering.
Does the electronic parking brake still work?
Yes, the kit is designed as an OEM-size rotor and pad replacement, so the rear brake service retains the factory L460 electronic parking brake system. The installer still needs to use the correct EPB service mode during rear pad and rotor work.
Why switch this Range Rover from iron rotors to carbon-ceramic?
The main reasons are lower brake dust, reduced rotating mass, and better heat stability on a heavy luxury SUV that can see repeated high-speed braking. The 380mm/355mm sizing keeps the factory brake package dimensions while changing the rotor material and friction pairing.
What should I confirm before purchase?
Confirm the vehicle is a 2022-2026+ L460 Range Rover or SV, confirm the front rotors are 380mm and the rear rotors are 355mm, and confirm wheel clearance if the vehicle has non-OEM wheels or spacers.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
